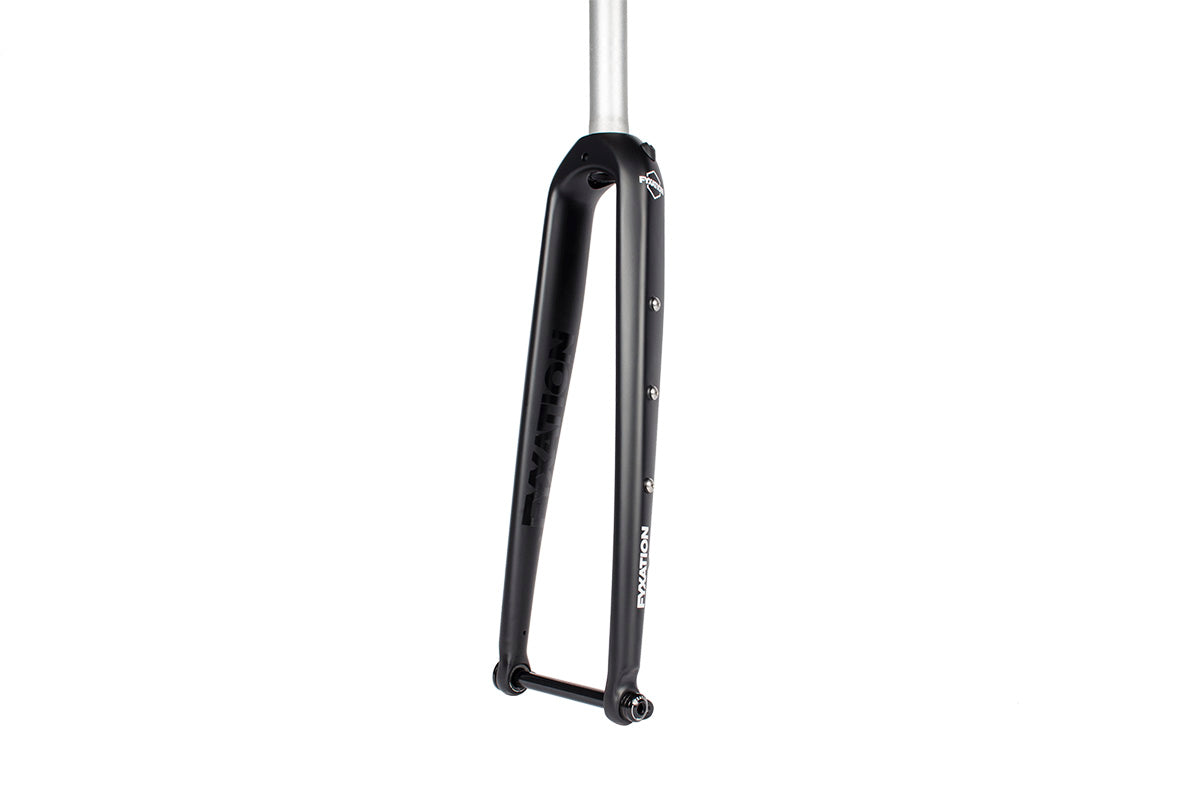

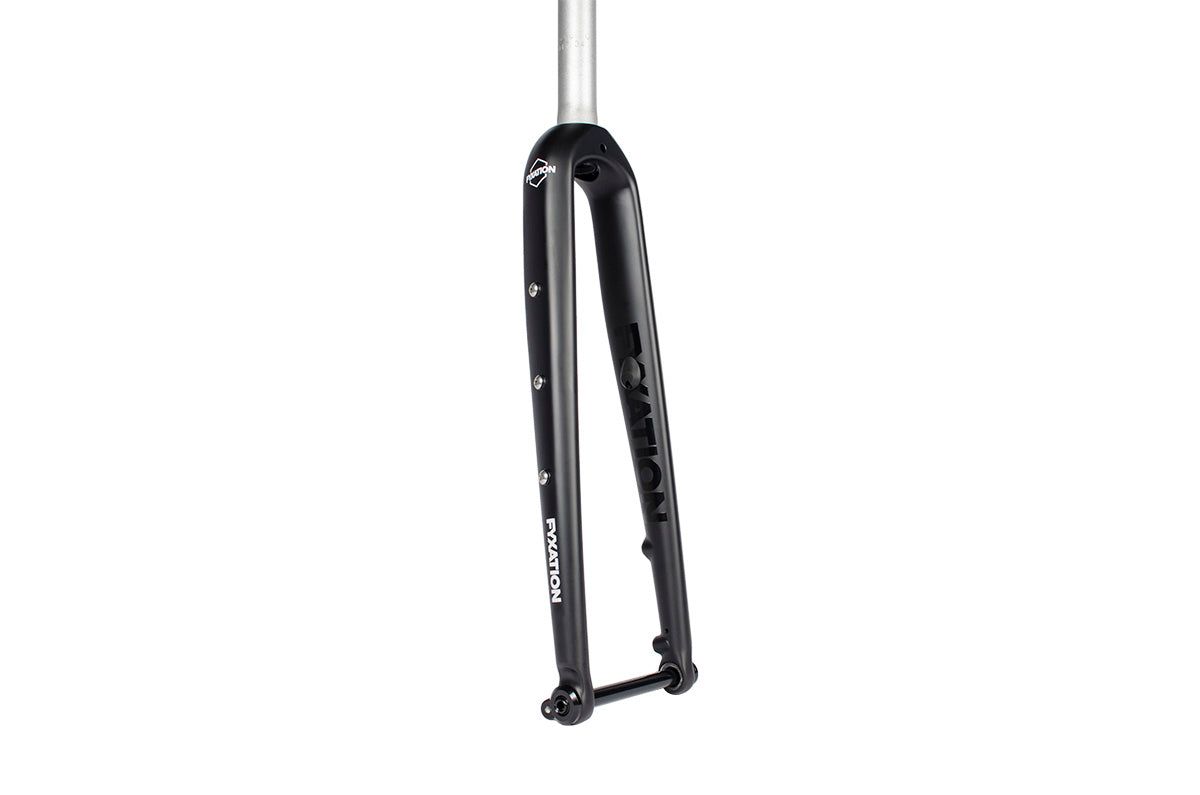

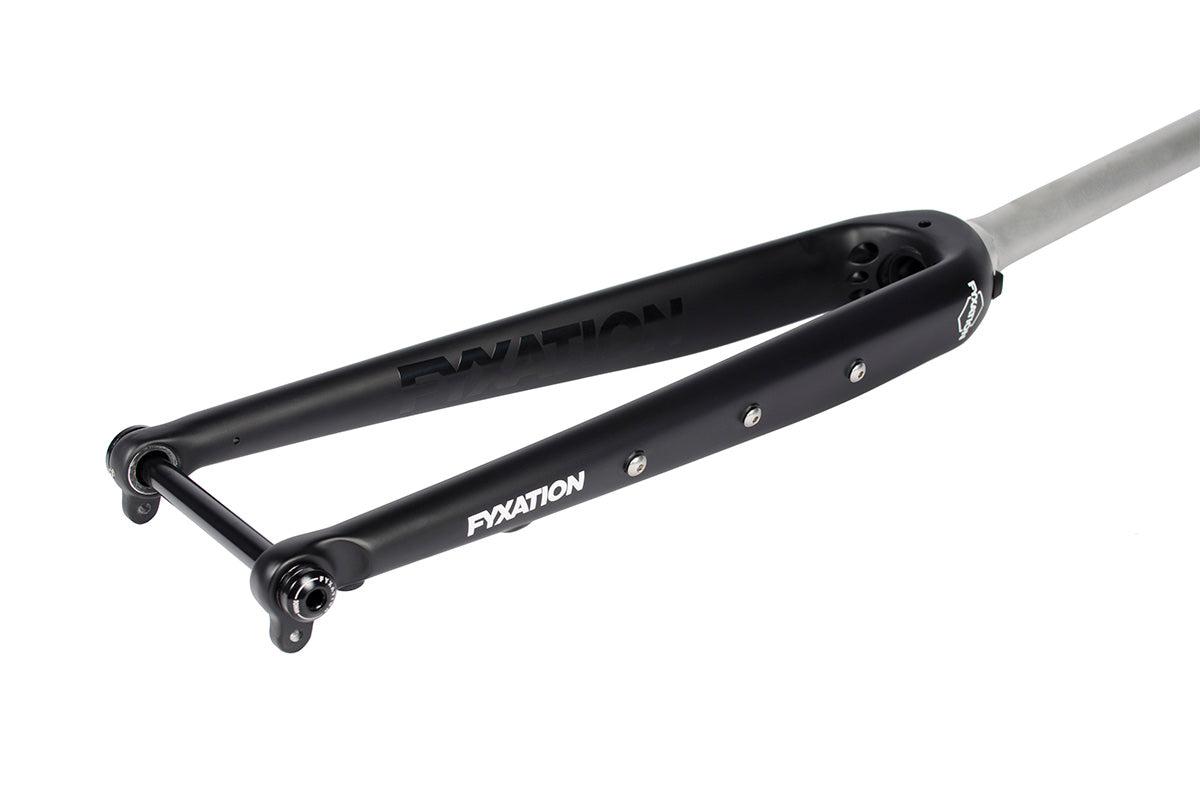

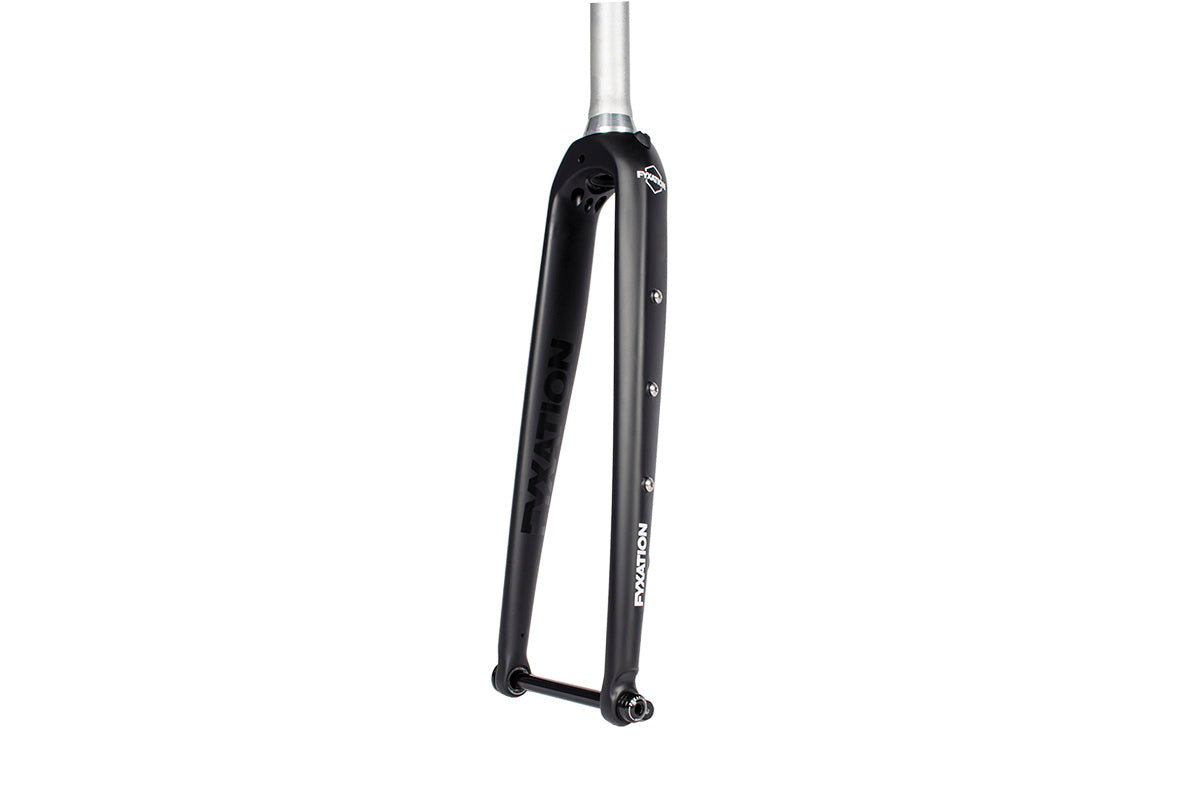

Sparta All Road Carbon Fork, Thru-Axle

Name: Sparta All Road Carbon Fork, Thru-Axle
Brand: Fyxation
SKU: FR5001
Price: 299.0 USD
Availability: OutOfStock

$299.00

Steerer Tube

1 1/8" Straight

1 1/8" x 1 1/2" Tapered

Thru Axle

12mm Bolt-on

15mm Bolt-on

12mm Quick Release

15mm Quick Release

[{"id":22953241221,"title":"1 1\/8\" Straight \/ 12mm Bolt-on","option1":"1 1\/8\" Straight","option2":"12mm Bolt-on","option3":null,"sku":"FR5000","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Sparta All Road Carbon Fork, Thru-Axle - 1 1\/8\" Straight \/ 12mm Bolt-on","public_title":"1 1\/8\" Straight \/ 12mm Bolt-on","options":["1 1\/8\" Straight","12mm Bolt-on"],"price":29900,"weight":1270,"compare_at_price":29900,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"817815012445","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":26300577925,"title":"1 1\/8\" x 1 1\/2\" Tapered \/ 12mm Bolt-on","option1":"1 1\/8\" x 1 1\/2\" Tapered","option2":"12mm Bolt-on","option3":null,"sku":"FR5001","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Sparta All Road Carbon Fork, Thru-Axle - 1 1\/8\" x 1 1\/2\" Tapered \/ 12mm Bolt-on","public_title":"1 1\/8\" x 1 1\/2\" Tapered \/ 12mm Bolt-on","options":["1 1\/8\" x 1 1\/2\" Tapered","12mm Bolt-on"],"price":29900,"weight":1270,"compare_at_price":29900,"inventory_quantity":50,"inventory_management":"shopify","inventory_policy":"deny","barcode":"817815012445","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":4693949710377,"title":"1 1\/8\" Straight \/ 15mm Bolt-on","option1":"1 1\/8\" Straight","option2":"15mm Bolt-on","option3":null,"sku":"FR5005","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Sparta All Road Carbon Fork, Thru-Axle - 1 1\/8\" Straight \/ 15mm Bolt-on","public_title":"1 1\/8\" Straight \/ 15mm Bolt-on","options":["1 1\/8\" Straight","15mm Bolt-on"],"price":29900,"weight":1270,"compare_at_price":29900,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"817815013299","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":4693951447081,"title":"1 1\/8\" x 1 1\/2\" Tapered \/ 15mm Bolt-on","option1":"1 1\/8\" x 1 1\/2\" Tapered","option2":"15mm Bolt-on","option3":null,"sku":"FR5006","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Sparta All Road Carbon Fork, Thru-Axle - 1 1\/8\" x 1 1\/2\" Tapered \/ 15mm Bolt-on","public_title":"1 1\/8\" x 1 1\/2\" Tapered \/ 15mm Bolt-on","options":["1 1\/8\" x 1 1\/2\" Tapered","15mm Bolt-on"],"price":29900,"weight":1270,"compare_at_price":29900,"inventory_quantity":49,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":4902581239849,"title":"1 1\/8\" Straight \/ 12mm Quick Release","option1":"1 1\/8\" Straight","option2":"12mm Quick Release","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Sparta All Road Carbon Fork, Thru-Axle - 1 1\/8\" Straight \/ 12mm Quick Release","public_title":"1 1\/8\" Straight \/ 12mm Quick Release","options":["1 1\/8\" Straight","12mm Quick Release"],"price":29900,"weight":1270,"compare_at_price":29900,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":4902583009321,"title":"1 1\/8\" x 1 1\/2\" Tapered \/ 12mm Quick Release","option1":"1 1\/8\" x 1 1\/2\" Tapered","option2":"12mm Quick Release","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Sparta All Road Carbon Fork, Thru-Axle - 1 1\/8\" x 1 1\/2\" Tapered \/ 12mm Quick Release","public_title":"1 1\/8\" x 1 1\/2\" Tapered \/ 12mm Quick Release","options":["1 1\/8\" x 1 1\/2\" Tapered","12mm Quick Release"],"price":29900,"weight":1270,"compare_at_price":29900,"inventory_quantity":59,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":4902584549417,"title":"1 1\/8\" x 1 1\/2\" Tapered \/ 15mm Quick Release","option1":"1 1\/8\" x 1 1\/2\" Tapered","option2":"15mm Quick Release","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Sparta All Road Carbon Fork, Thru-Axle - 1 1\/8\" x 1 1\/2\" Tapered \/ 15mm Quick Release","public_title":"1 1\/8\" x 1 1\/2\" Tapered \/ 15mm Quick Release","options":["1 1\/8\" x 1 1\/2\" Tapered","15mm Quick Release"],"price":29900,"weight":1270,"compare_at_price":29900,"inventory_quantity":58,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":4902587629609,"title":"1 1\/8\" Straight \/ 15mm Quick Release","option1":"1 1\/8\" Straight","option2":"15mm Quick Release","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Sparta All Road Carbon Fork, Thru-Axle - 1 1\/8\" Straight \/ 15mm Quick Release","public_title":"1 1\/8\" Straight \/ 15mm Quick Release","options":["1 1\/8\" Straight","15mm Quick Release"],"price":29900,"weight":1270,"compare_at_price":29900,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

The Sparta All Road Carbon Fiber Fork is ideal for dropping weight and adding tons of versatility to your rig. With cargo/fender mounts, 6 fork eyelets and your choice of a bolt on thru axle or QR thru axle, this carbon fork is built for the city, touring and beyond. It's strong, light, adaptable and is a great upgrade for the rider looking to get more out of their current bike.

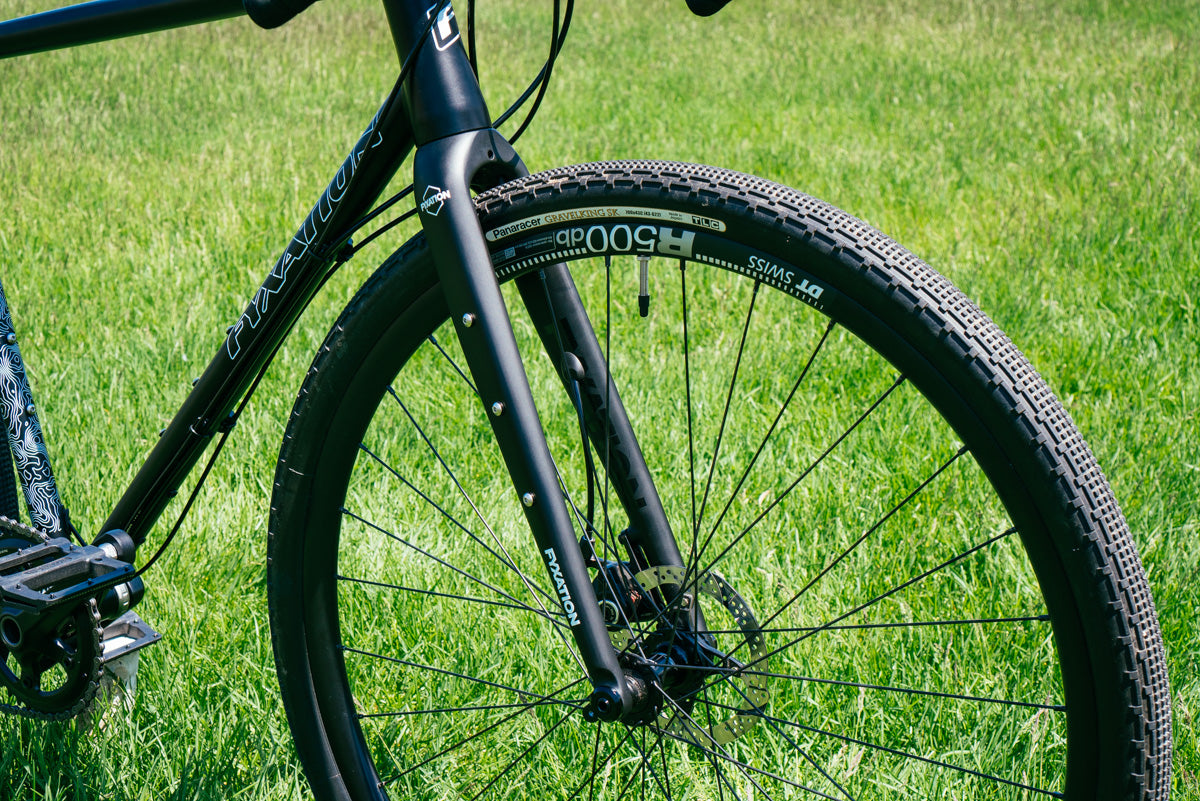

The Sparta All Road Carbon Fork is our latest foray into the world of carbon fiber following on the heels of the successful launch of our carbon fiber Blackhawk fat bike and the Carbon Adventure Bike. This adventure ready thru axle fork was designed as an upgrade for our Quiver Disc, but is a fantastic upgrade to many other bikes on the market.

Need a Flat mount to Post mount adapter?
Post Mount 160mm
Flat Mount 140/160mm

Specs:

Carbon thru axle all road fork, 1 1/8" or 1 1/8" tapered aluminum straight steer tube, aluminum crown, flat mount disc brake, fender mounts and 6 fork eyelets for water bottles, bags... Includes 12mm or 15mm thru axle skewer - choice of bolt on or QR Thru Axle available. Fits up to a 700x42c tire (700x40c with fender) or 650b x 50 Road Plus.

Length: 400mm axle to crown
Rake: 45mm
Width: 100mm

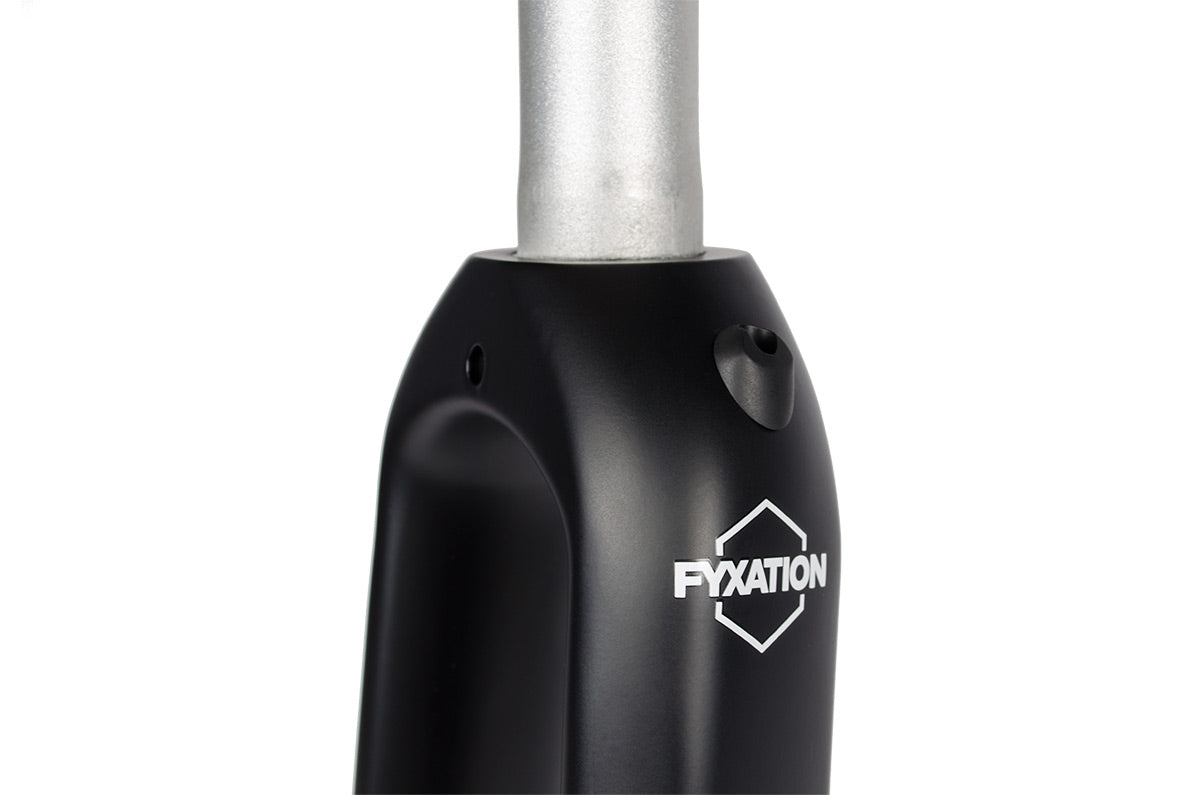

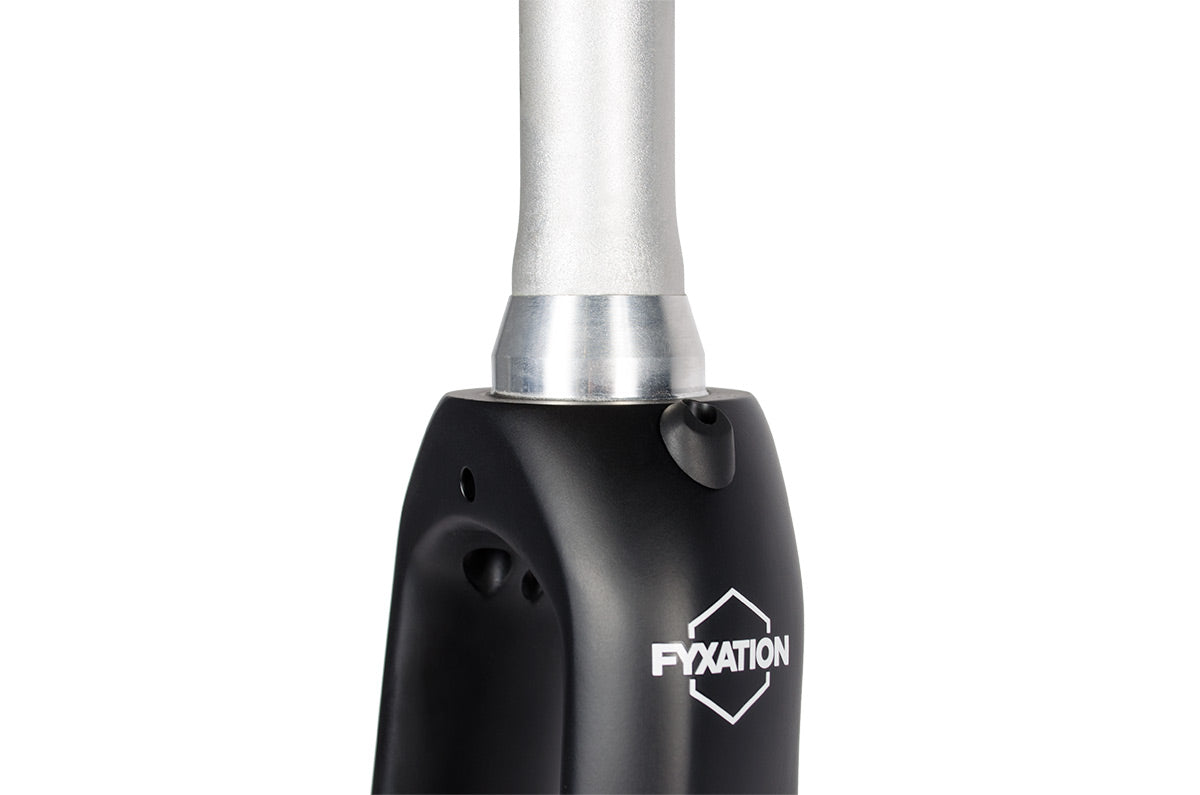

Steerer: 1 1/8" straight alloy or 1 1/8 tapered - uncut steerer tube length is 300mm

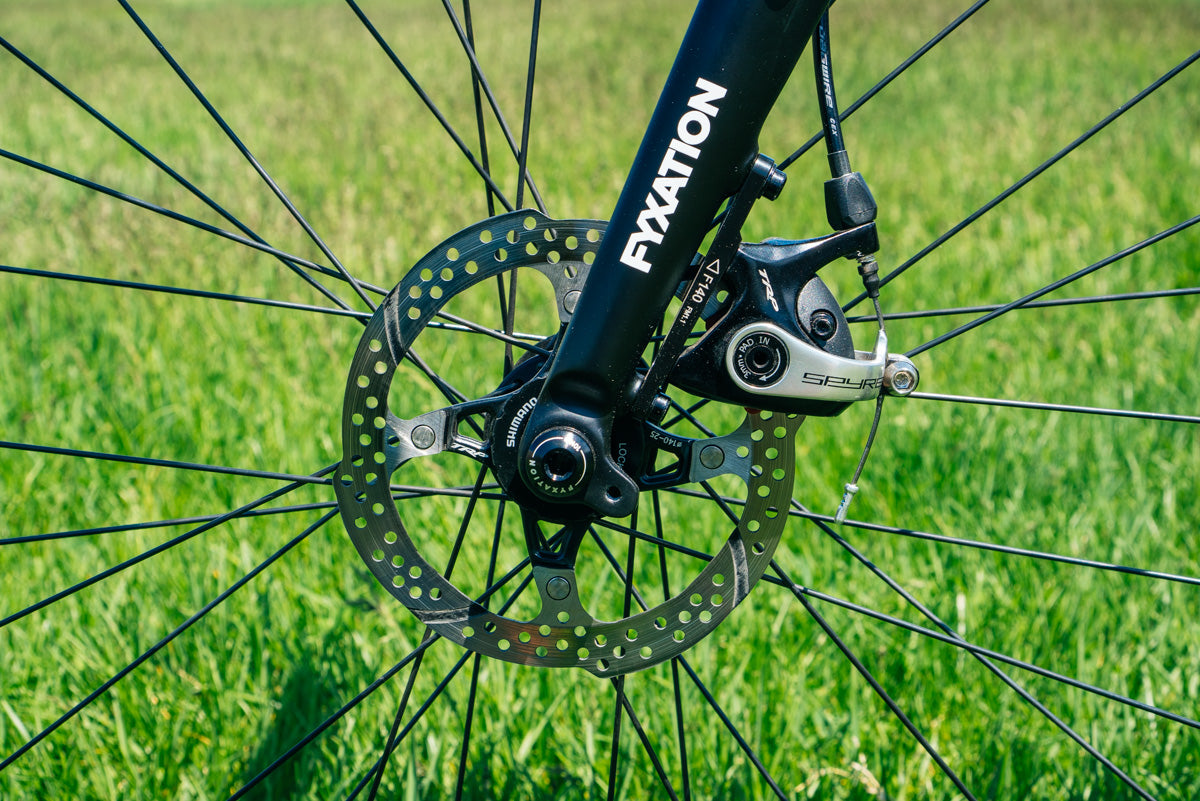

Brake Mount: Flat mount
Brake Rotor Compatibility: 140 or 160mm (not approved for 180mm)
Crown Race: Tapered - 40.mm, Straight - 28.6mm
Internal cable/hose routing

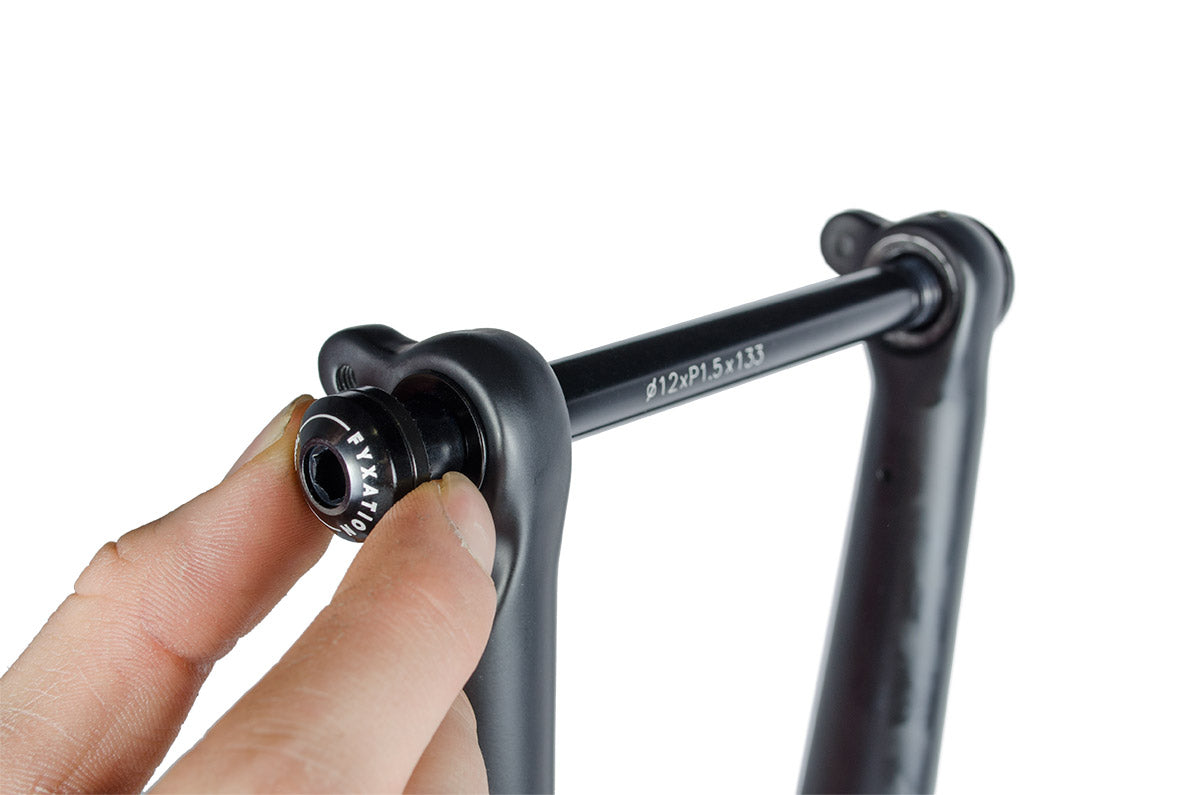

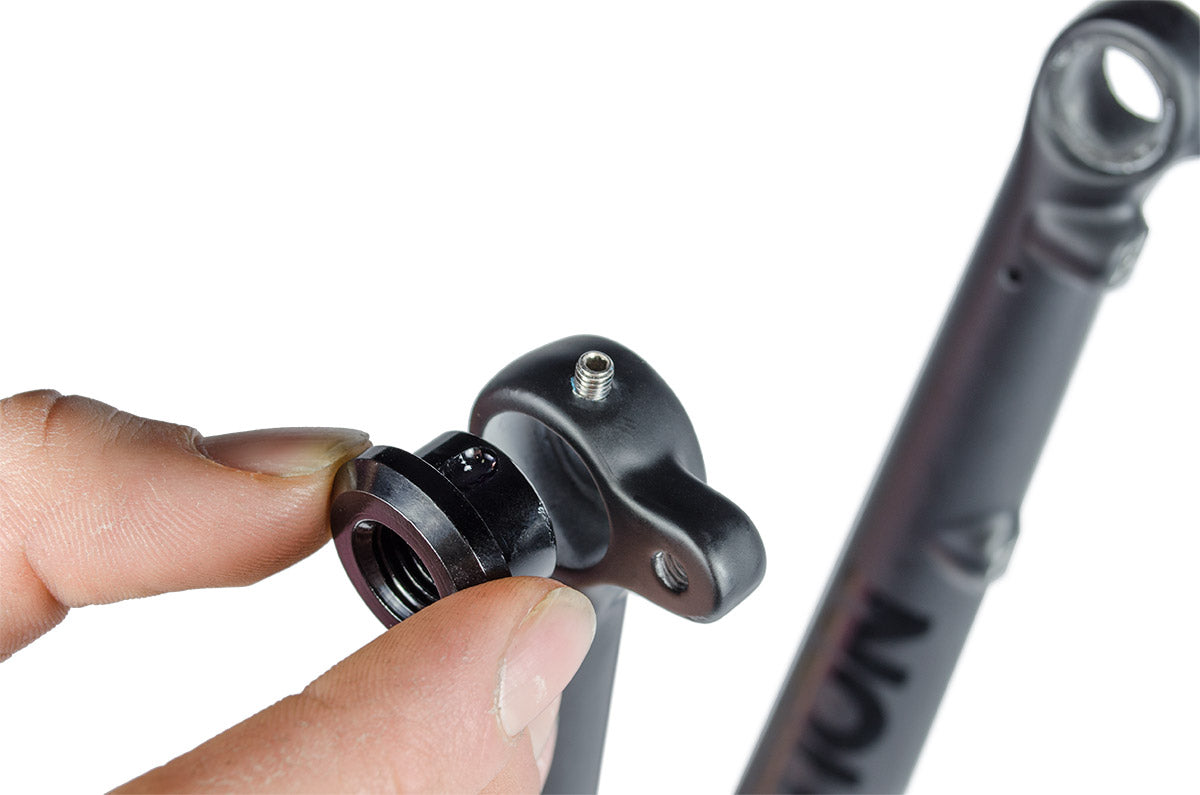

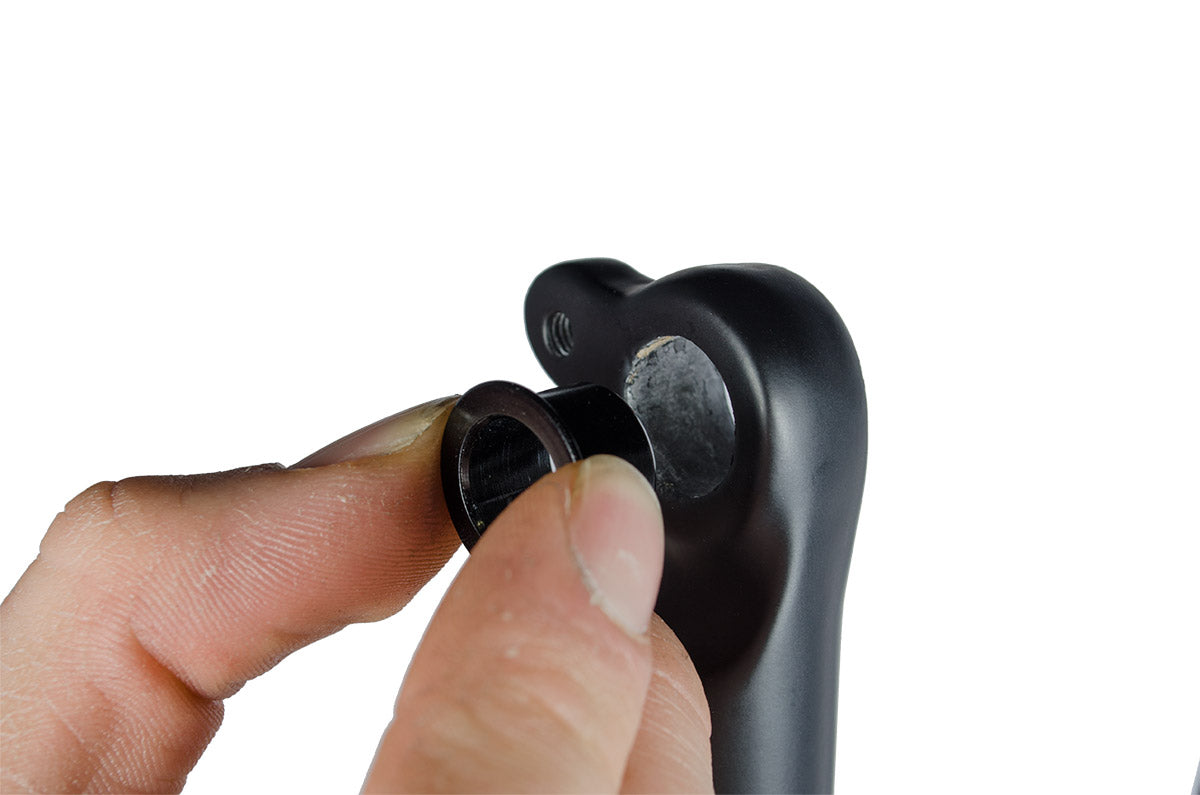

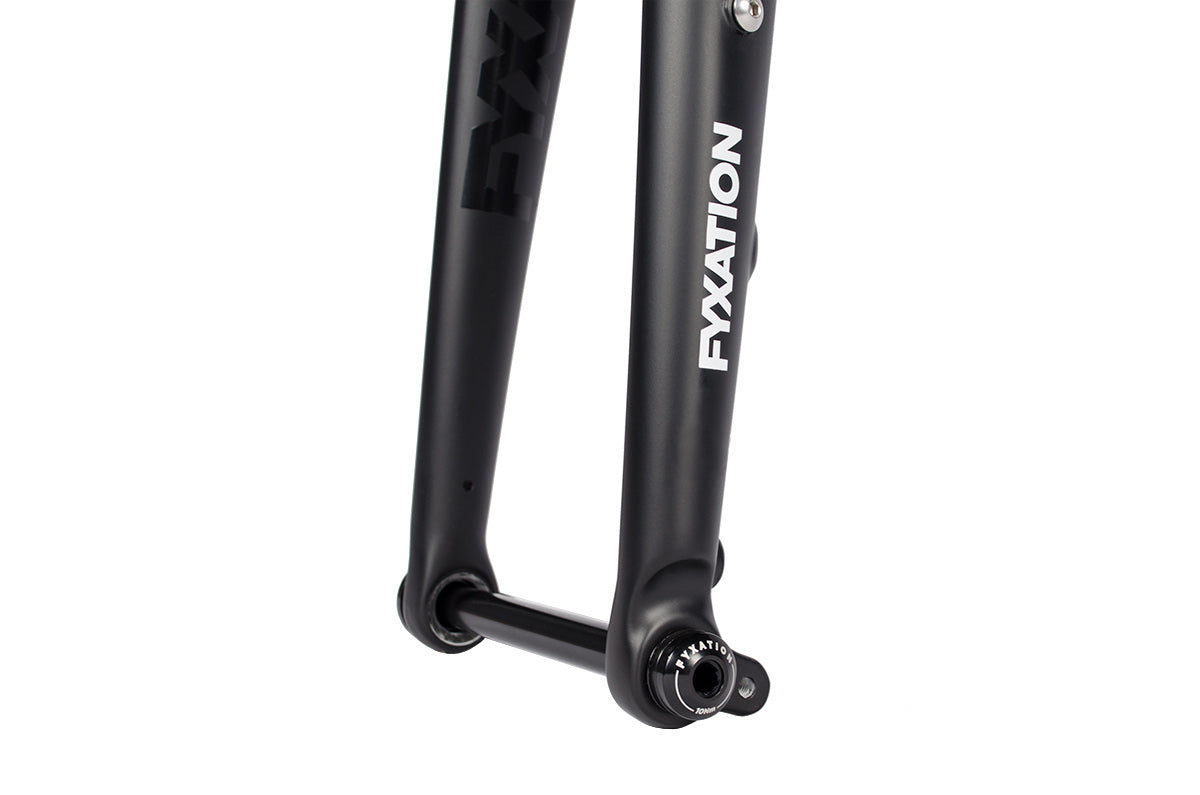

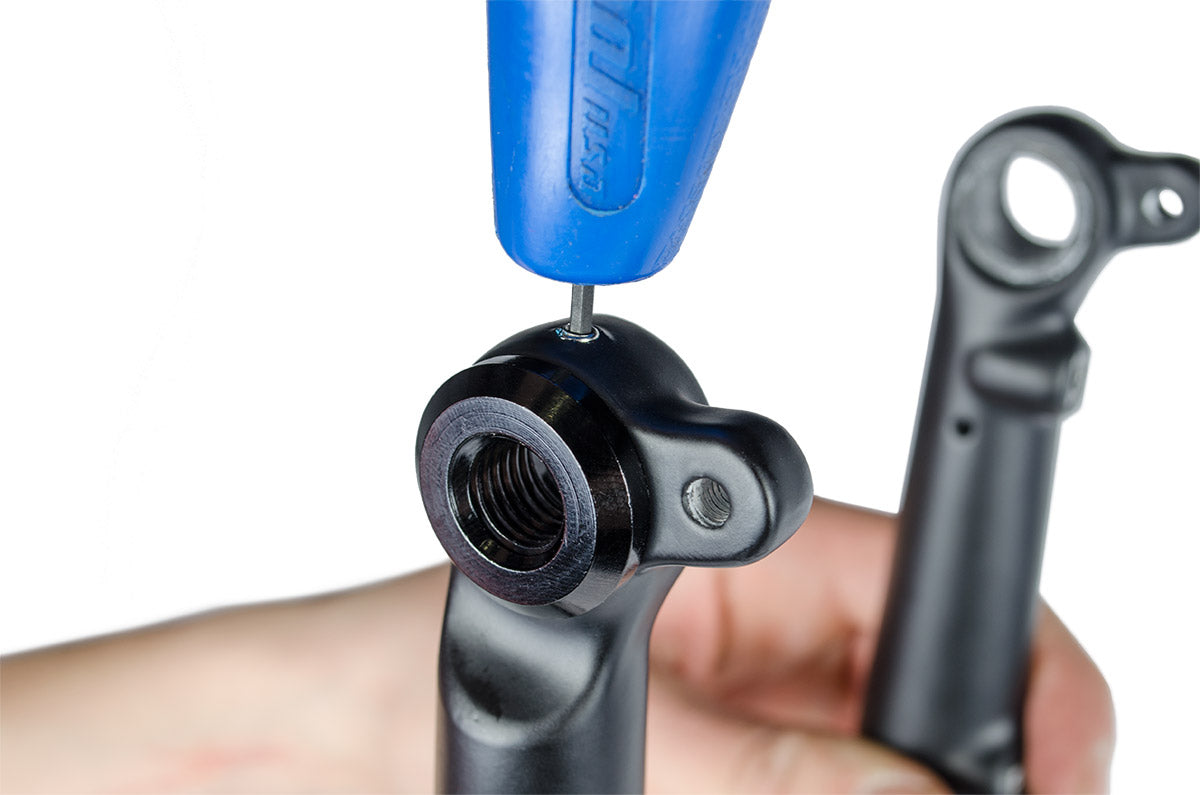

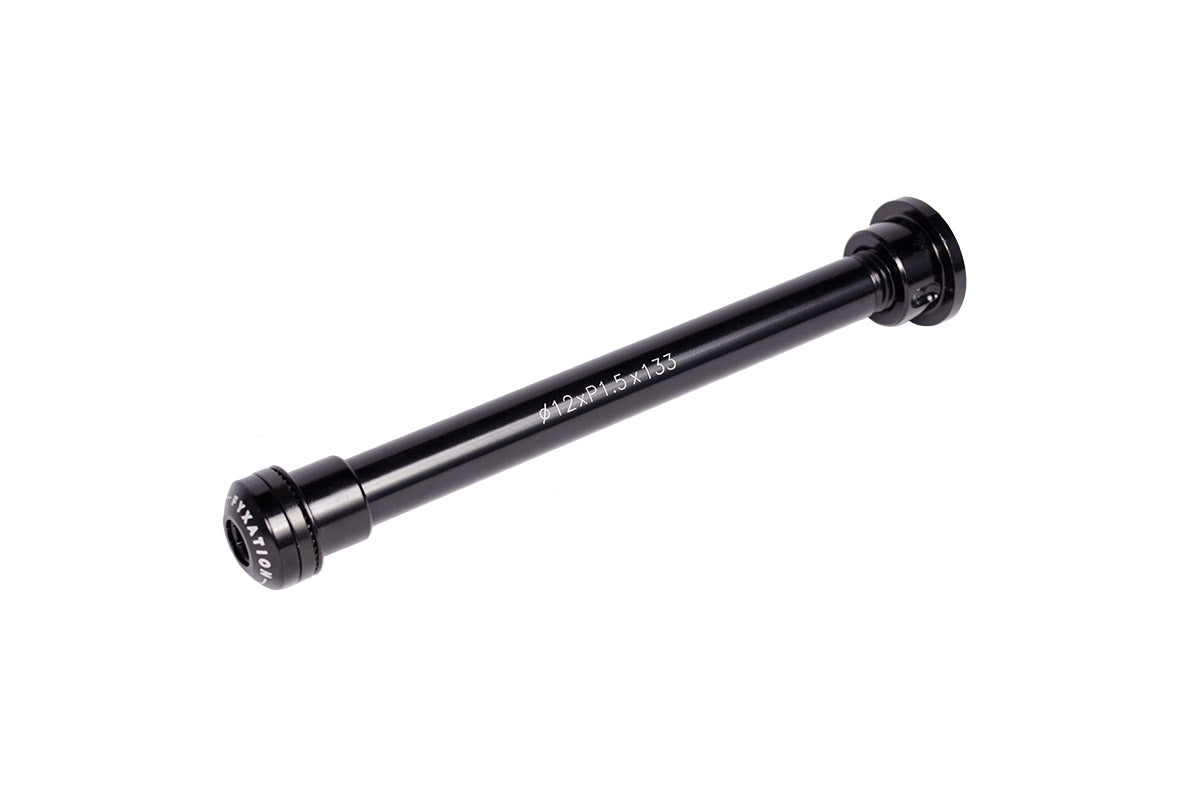

Thru axle: 12mm and 15mm available with choice of bolt on or QR available (axle included)
Tire Clearance: 700x42c, 700x40c w/fender, 650b x 50

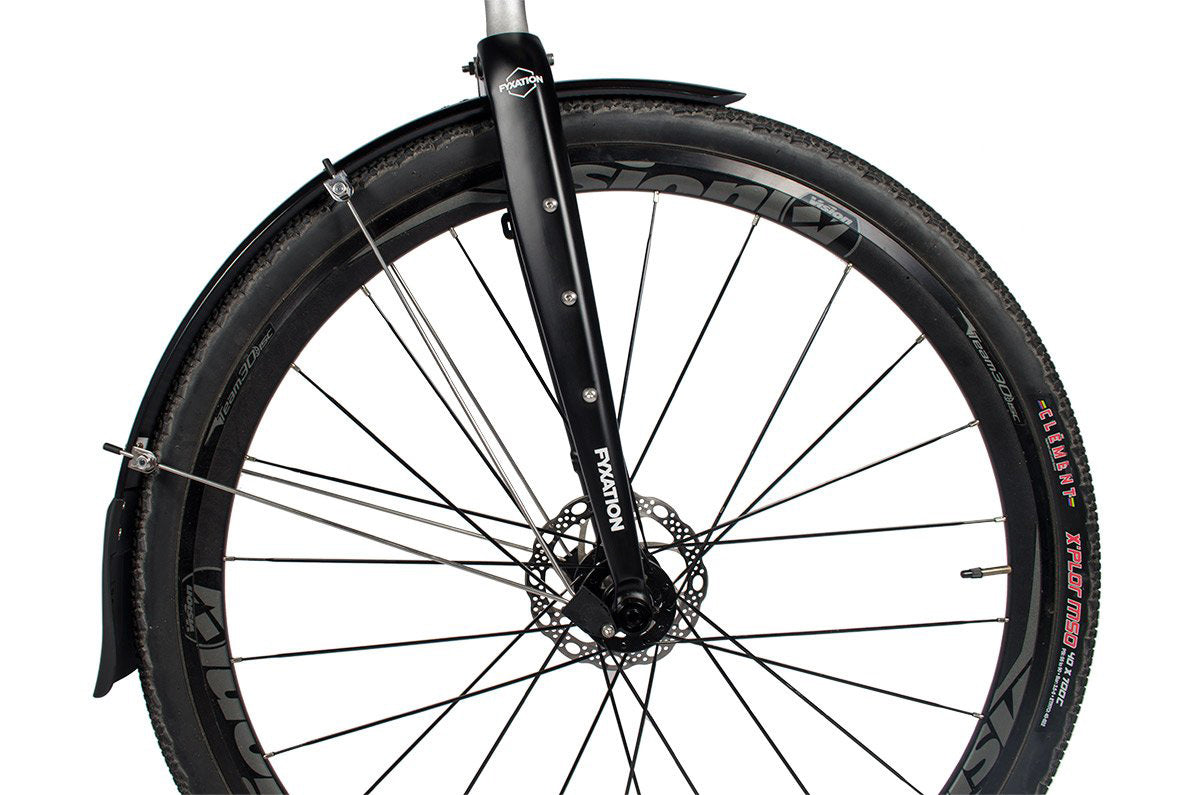

Fender Mounts
Water Bottle/Frame Bag Mounts
Brake Mount: Flat mount
Fork Weight: 747g (uncut)
Skewer Weight: 65g
3kg maximum cargo load per fork leg
Not compatible with lowrider racks and panniers
Steerer I.D. 24.5 - Compatible with the CINQ Plug5 Plus

Compatible 1 1/8" Headtube Frames:

Fyxation Quiver Disc
Surly Midnight Special
All City Cosmic Stallion
All City Gorilla Monsoon
Cinelli Semper
Breezer Doppler
Gunnar Hyper-X
Diamondback Haanjo
Bombtrack Hook
Soma Double Cross
Soma Wolverine
Kona Rove
Kona Sutra
Specialized Sequoia (not compatible with models using 1 3/8" crown)
Specialized Awol
Salsa Vaya
Salsa Journeyman
Lynskey Backroad
Lynskey Urbano
Lynskey Sportive
Marin Four Corners
Kinesis Tripster ATR
Many more! Email support@fyxation.com for fitment questions!
