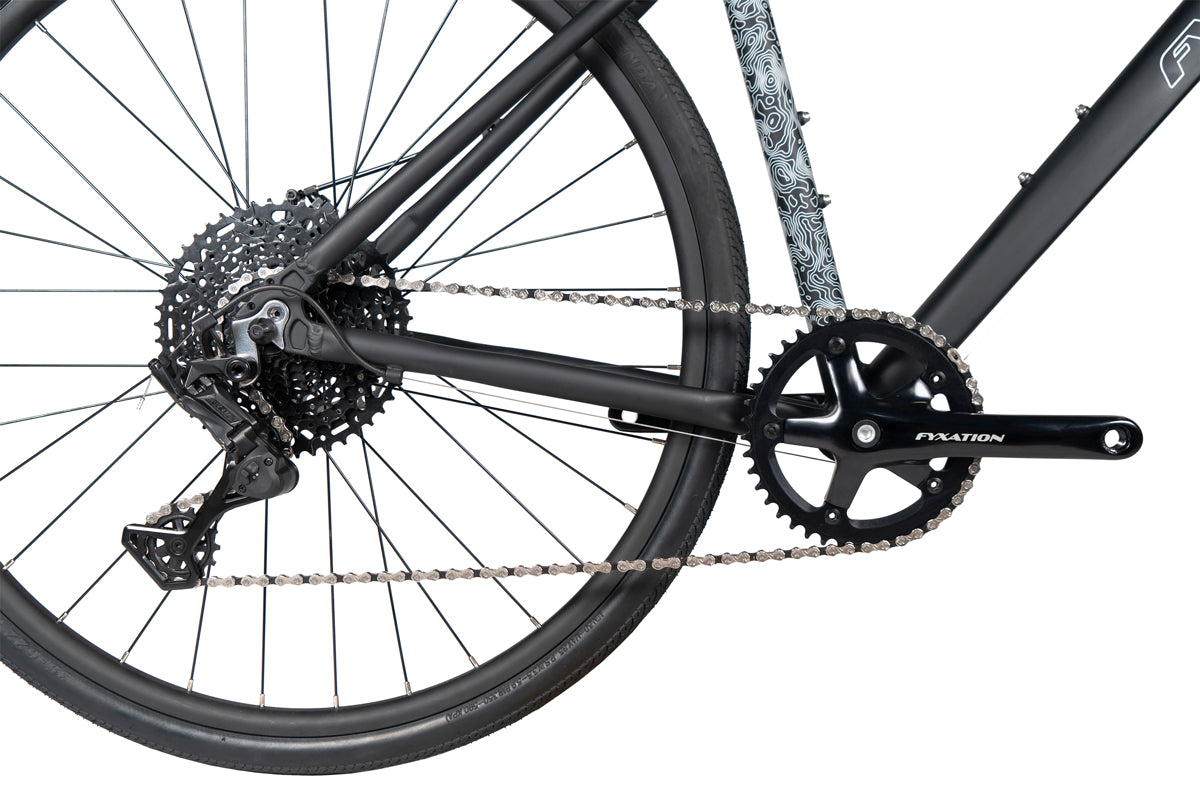

The Quiver ARC is outfitted with a wide range 1x10 drivetrain and reliable stopping power of disc brakes. We've also loaded the bike up with rack, water bottle and gear mounts, so the Quiver ARC can be tuned for your riding style. Three pack fork mounts are ready to handle gear cages and clearance for 42c tires let you tune your ride for road, gravel or both!
We recommend that you size your bike based on your height and inseam. This insures you have proper clearance over the top tube, and the other fit dimension's will fall in line. Still have questions on the best size? Chat with us below...
RIDER HEIGHT: 5'4"-5'6" / 5'6"-5'9" / 5'9" - 6'0" / 6'0"-6'3"
A: 74.0 / 74.0 / 73.5 / 73.5
B: 70.0 / 71.5 / 71.5 / 72.0
C: 482MM / 483MM / 521MM / 559MM
D: 543MM / 560MM / 580MM / 605MM
E: 140MM / 165MM / 185MM / 220MM
H: 1042MM / 1045MM / 1060MM / 1080MM
I: 28" / 29" / 31 / 33"

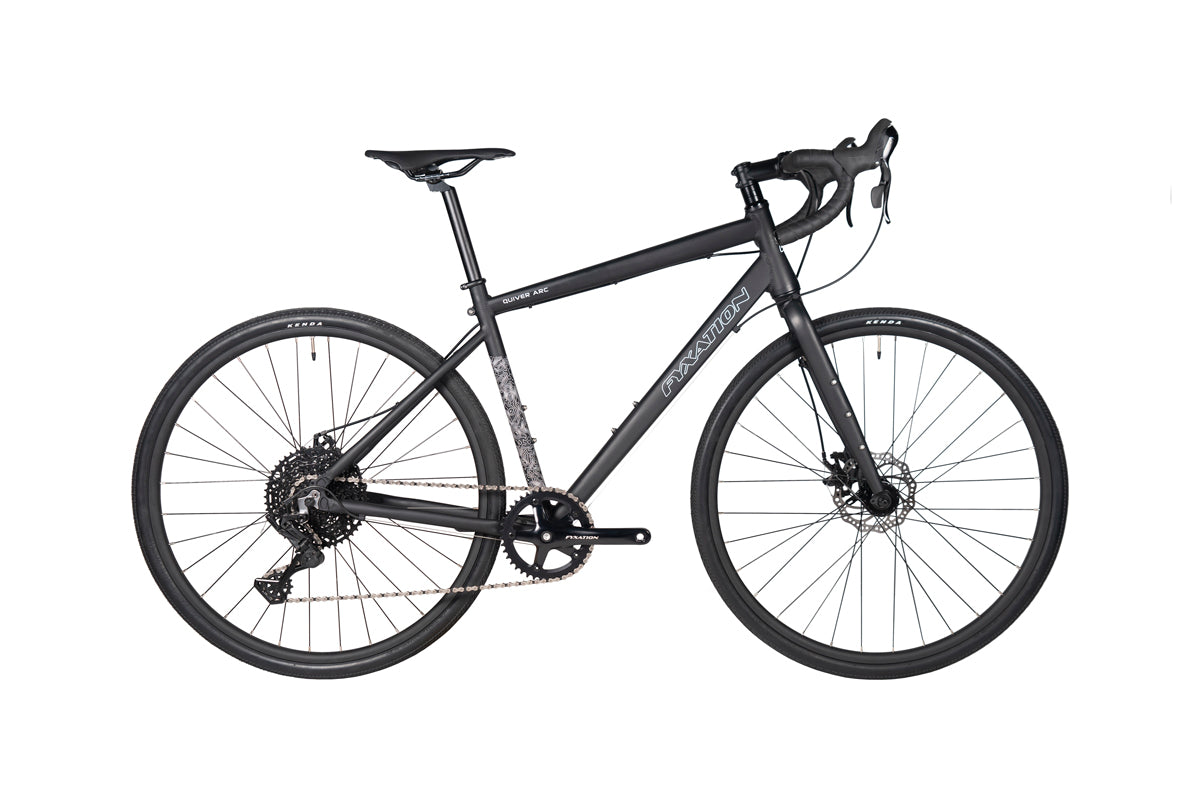

One bike that does it all; that's the driving philosophy at the heart of every iteration of the Quiver we've designed. Our newest all-road commute (ARC) takes this ethos to the next level! Equipped with a wide range 1x10 drivetrain, disc brakes and versatile flared adventure bars.
Need room for racks or bags? We've got that covered! Fender mounts, rear rack and front three-pack gear mounts, allows the Quiver ARC to be outfitted for your next adventure!
FRAMESET: Fyxation 6061 Aluminum
FORK: Fyxation 6061 Aluminum, 1 1/8” x 1 1/2" Tapered Steerer, Triple Gear Cage Mounts
REAR HUB: Fyxation sealed bearing hub, 135x10mm QR Sealed Bearing, HG cassette compatible, 6-bolt
FRONT HUB: Fyxation sealed bearing hub,100x9mm QR, 6-bolt disc
SHIFTER: Microshift Advent X, 10s
REAR DERAILLEUR: Microshift Advent X, 10 s, Clutched Rear Derailleur
CASSETTE: 10 Speed, 11-48T
CHAIN: KMC 10-speed
RIM: 700c Aluminum, Double wall, 22mm Deep, 19mm Inner Width, 32H
SEAT POST: Alloy, 27.2mm
SPOKES: Stainless, 14G
HANDLEBARS: Alloy Adventure Drop Bar, 31.8mm, 12 Degree Flare, W: (400mm S/M) (420mm L) (440mm XL), Ano. Finish
STEM: Forged Alloy, 31.8mm, +/- 7°, L: (80mm S/M) (100mm L) (110mm XL), Ano. Finish
TAPE: Fyxation Atack Tape

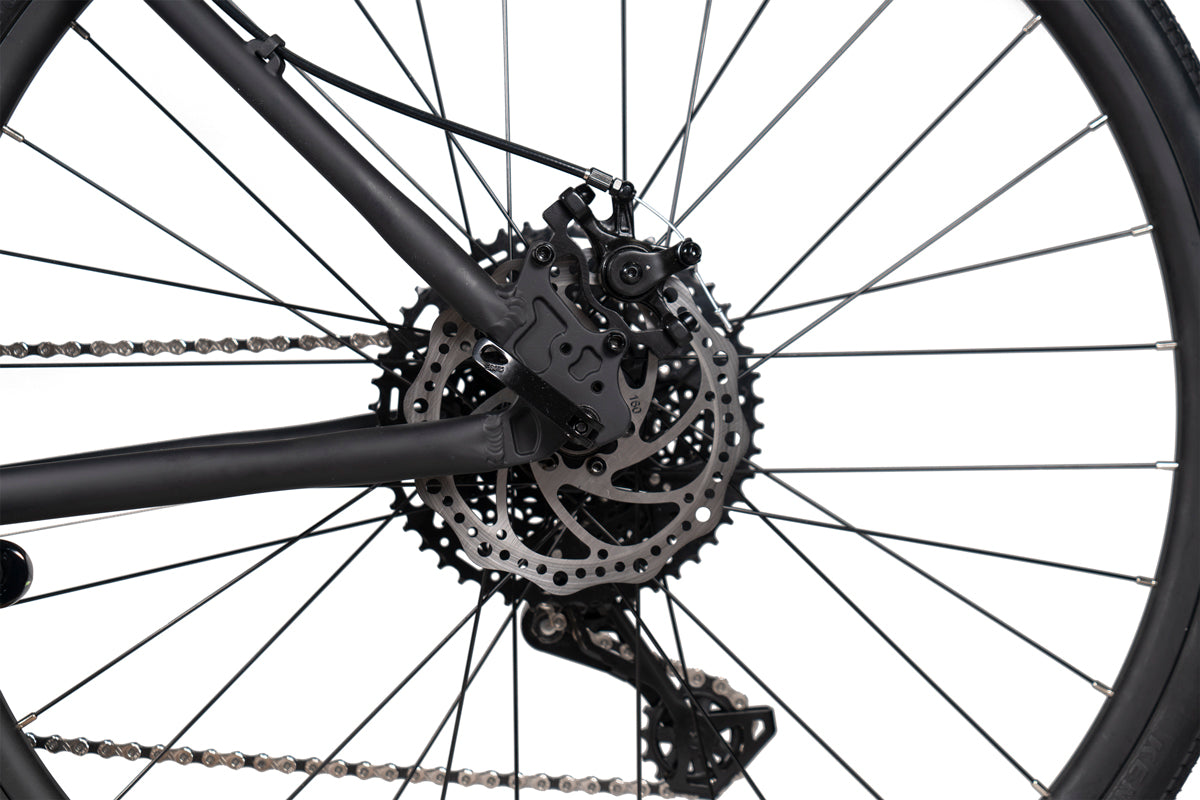

BRAKE CALIPER: Zoom DB-160
BRAKE ROTOR: Stainless steel, 160mm, 6-bolt
BOTTOM BRACKET: Neco Sealed Bearing, 68x119mm
HEADSET: Neco loose ball, 1-1/8" threadless
CRANKS: Fyxation Forged Alloy, L: 170mm, 42T
PEDALS: Wide body nylon cage Pedal w/Reflector
CARGO: Fender/rack mounts on Tframe and fork dropouts. Triple gear cage mount on fork.
TIRE CLEARANCE: Clearance for 700x42c tires (700x35c with fenders)
FRAME SIZE: S, M, L, ,XL
How does my bike ship?
Our complete bikes ship via UPS Ground in a well padded professional bike box. Orders that arrive by 2 p.m. CST weekdays ship same day. you can track your bike online or through the Shop App.

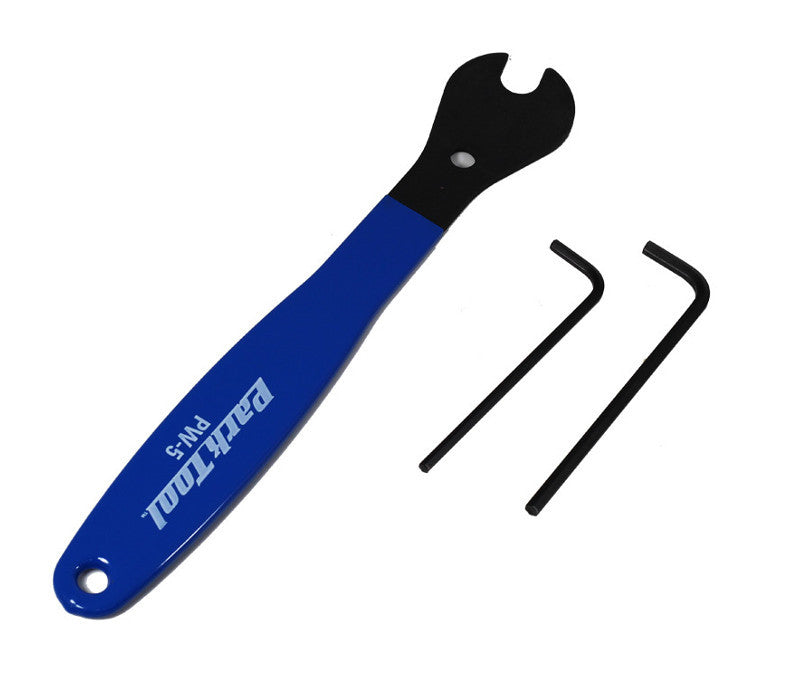

The bikes ship 95% assembled and you'll simply need a few tools to get your bike built up and on the road. As always, we recommend taking your bike to your local bike shop to get it built up properly.
* Contact us at info@fyxation for international shipping rates
