Quiver Canti Frameset

4 |

$479.00

Description
Specs
Geometry
Shipping

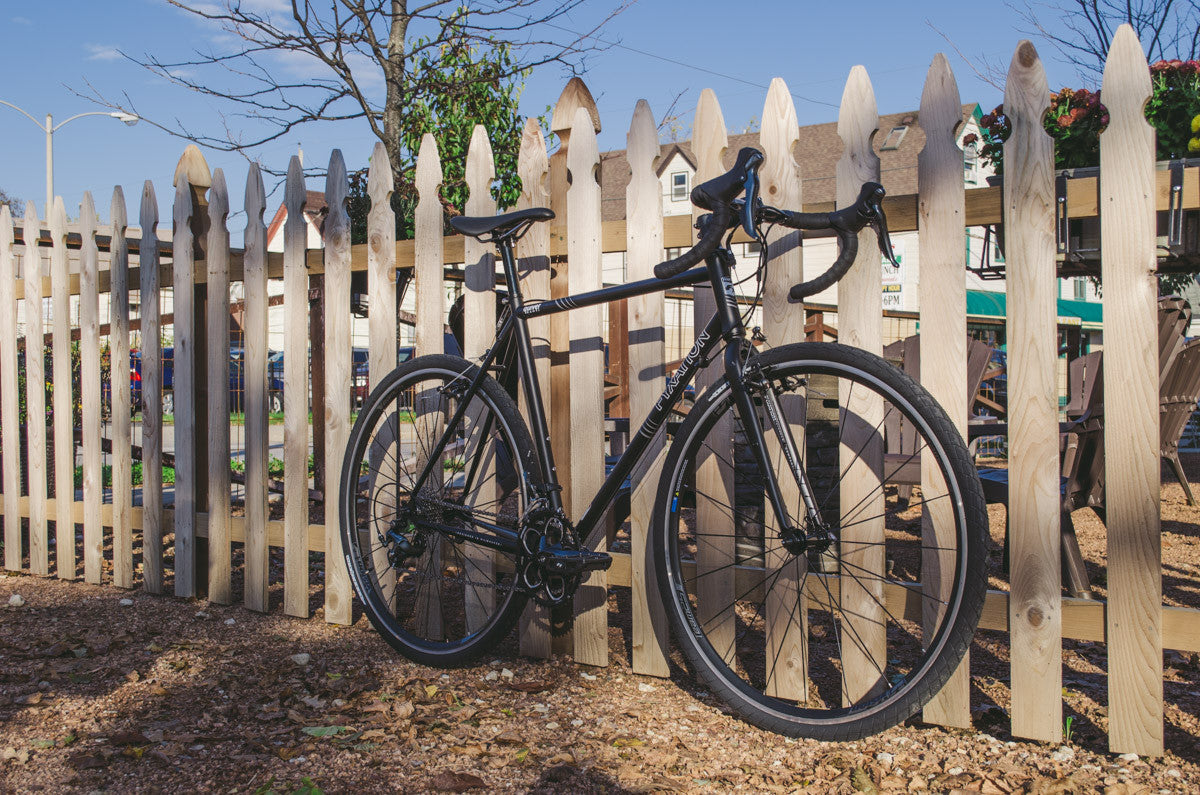

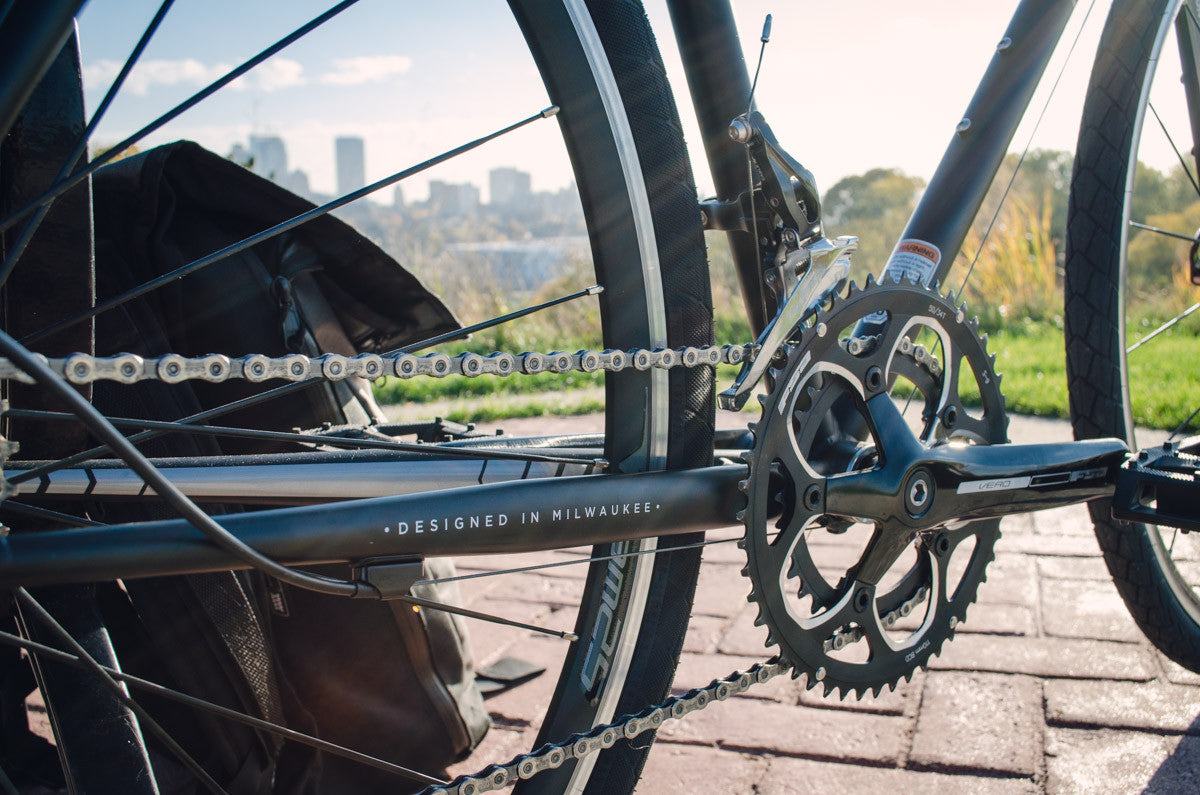

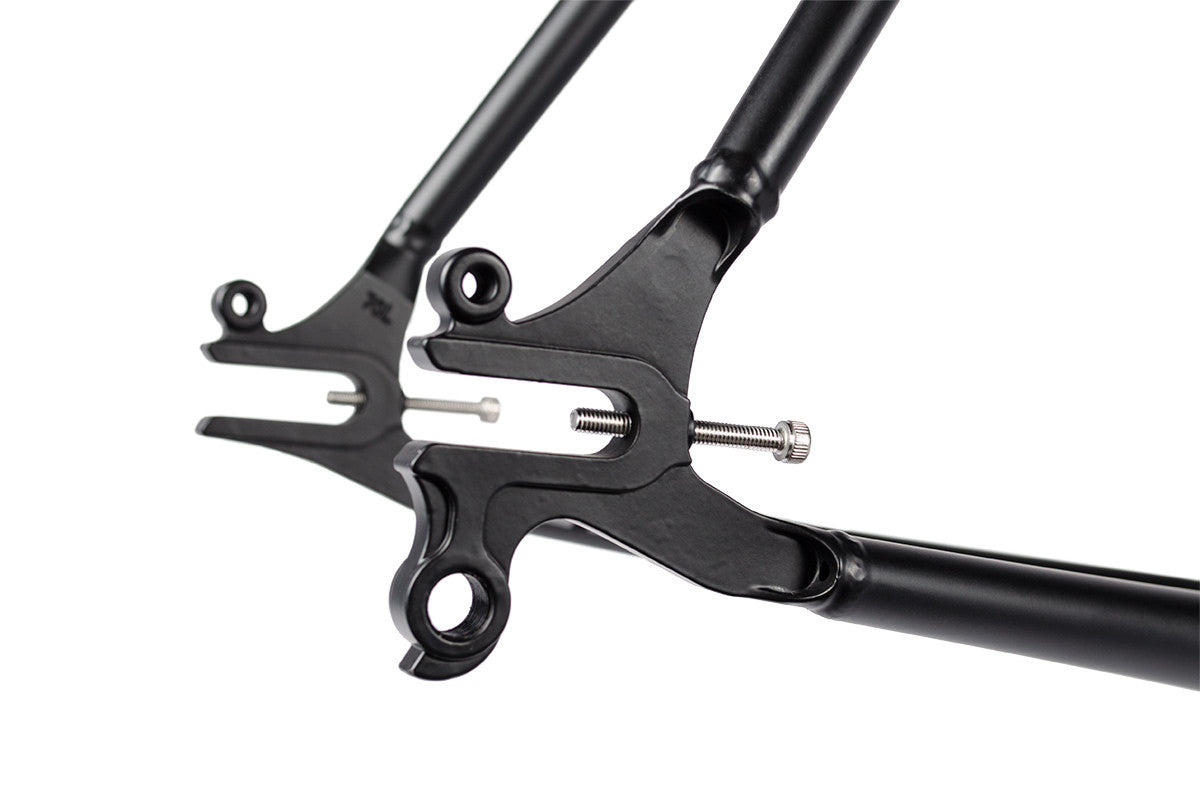

Building off the proven Quiver platform, the all new Quiver Canti is at home as a quick urban commuter, weekend CX race rig, or camping companion. Designed to handle city streets, gravel or dirt the Quiver's refined geometry balances stability with responsive handling. New refined horizontal dropouts and belt-drive coupler add the ability to run a belt drive for a clean, silent drive-train.

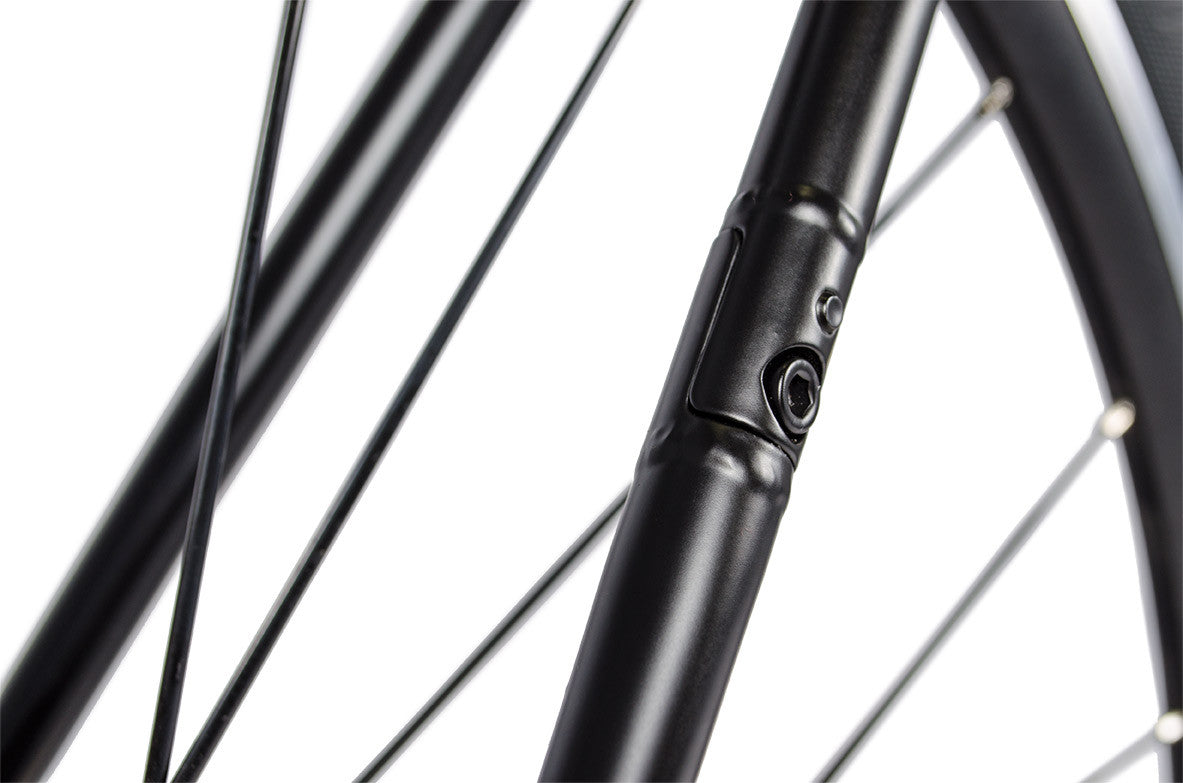

We've tucked away the rear brake cable into the top tube to make for clean routing. An integrated headset and brazed on seat collar further simplifies and elevates the frame. Adding to the versatility of the Quiver we've incorporated mid fork mounts, removable brake shift cable mounts and bottle cage mounts to the fork, so no matter what you're hauling you can do it clean and securely.

The Quiver features a number of unique features that make this more than just a simple commuter bike. Whether you're riding plans call for a trip downtown, 50 miles of gravel roads, a local cross race or your next weekend adventure, the Quiver has you covered.

- Belt Drive Compatible

- Can use cantilever brakes or v-brakes

- Color: Matte black with silver graphics

Sizing
- 4130 Chromoly frame and fork
- Belt-drive compatible
- ED Undercoating (automotive level frame protector)
- Multiple rack and fender mounts
- Canti or V-brake
- Wide tire clearance
- Internal brake routing
- Steerer Tube: 1 1/8" Threadless
- Headset Required: Integrated (IS41)
- Front brake cable hanger needed: Problem Solvers
- Rear brake cable hanger needed: Surly
- Wheel Diameter: 700c fitting up to a 42mm tire
- Rear wheel spacing 132.5mm
- 4 Size options: 49, 53, 56, 59cm

FRAME SIZE		49cm	53cm	56cm	59cm
Recommended Height		5'4" - 5'6"	5'6" - 5'9"	5'9" - 6'0"	6'0" - 6'3"
	Seat Tube Angle (degree)	75.0	73.5	73.5	73.0
	Head Tube Angle (degree)	71.0	72.0	72.0	72.5
	Seat Tube Length	490mm	530mm	560mm	590mm
	Top Tube Length	529mm	537mm	565mm	580mm
	Head Tube Length	117mm	126mm	157mm	190mm
	BB Drop	70mm	70mm	70mm	70mm
	Chainstay Length	427mm	427mm	427mm	427mm
	Wheelbase	1013mm	1012mm	1027mm	1032mm
	Standover Height	745mm	770mm	805mm	835mm
	Fork Length	400mm	400mm	400mm	400mm
	Fork Rake	45mm	45mm	45mm	45mm
	Stack	542mm	563mm	583mm	617mm
	Reach	382mm	387mm	390mm	392mm
	Weight	3538g	3628g	3719g	3810g

Our complete bikes ship via FedEx in a well padded professional bike box. The bikes ship 95% assembled and you'll simply need a few tools to get your bike built up and on the road. As always, we recommend taking your bike to your local bike shop to get it built up properly. If you don't have a shop nearby, you'll need a pedal wrench and a hex wrench to assemble your bike.

* Contact us at info@fyxation for international shipping rates
