Quiver Canti 2x10 Shimano Tiagra

  • Building off the proven Quiver platform, the all new Quiver Canti is at home as a quick urban commuter, weekend CX race rig, touring bike or camping companion. Designed to handle city streets, gravel or dirt the Quiver's refined geometry balances stability with responsive handling. New refined horizontal dropouts and belt-drive coupler add the ability to run a belt drive for a clean, silent drive-train.

    We've tucked away the rear brake cable into the top tube to make for clean routing. An integrated headset and brazed on seat collar further simplifies and elevates the frame. Adding to the versatility of the Quiver we've incorporated mid fork mounts, removable brake shift cable mounts and triple bottle cage mounts to the fork, so no matter what you're hauling you can do it clean and securely.

    The Quiver features a number of unique features that make this more than just a simple commuter bike.  Whether you're riding plans call for a trip downtown, 50 miles of gravel roads, a local cross race or your next weekend adventure, the Quiver has you covered.

    - Belt Drive Compatible

    - Can use cantilever brakes or v-brakes

    - Color: Matte black with silver graphics

    Sizing

    • Frame: Fyxation Quiver Canti frame, 4130 cr-mo, ED protected, rack and fender mounts, belt split. Compatible with 700x45c tire or 700x35c tires with fenders, internal rear brake routing, integrated headset.
    • Fork: Fyxation Quiver Canti fork, 4130 cr-mo, ED protected, dropout rack and fender mounts, dual mid-fork mounts with water bottle spacing.
    • Rear Derailleur: Shimano Tiagra 10 Speed
    • Front Derailleur: Shimano Tiagra 10 Speed
    • Cassette: Shimano 10sp 11-34T
    • Crank: FSA Vero Compact 50/34T
    • Headset: FSA Integrated IS41
    • Bottom Bracket: FSA Vero

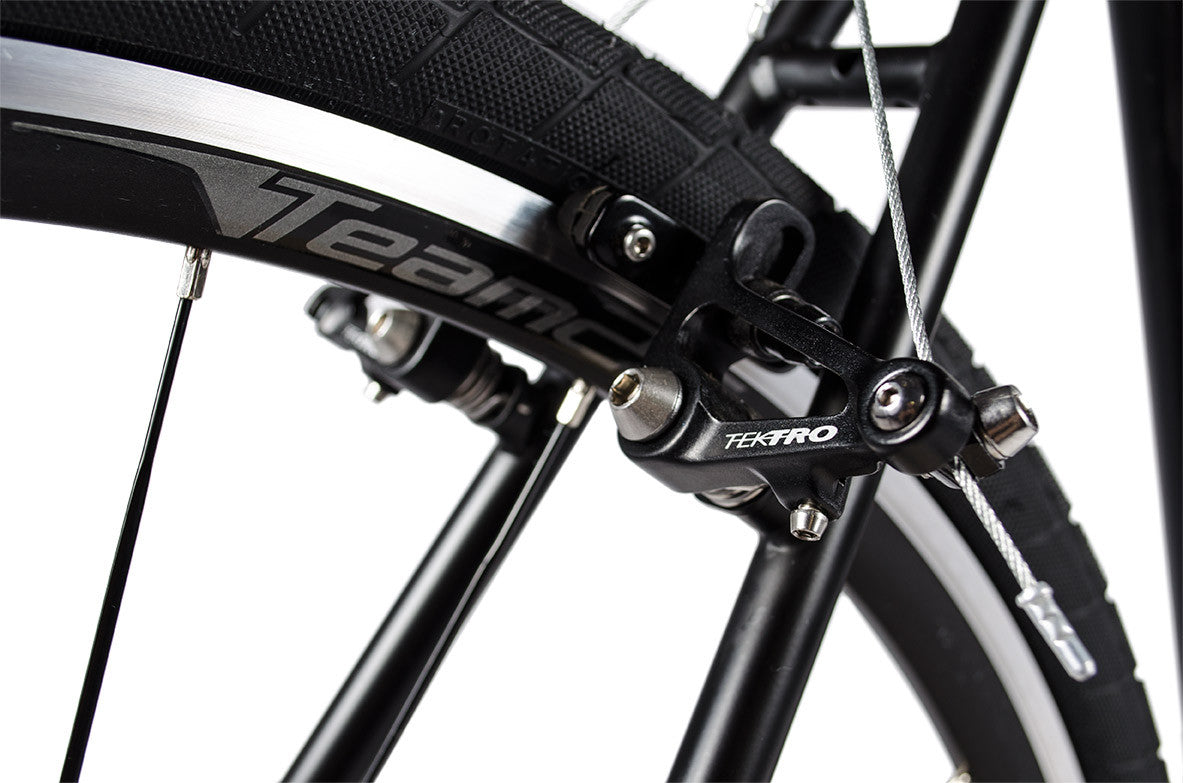

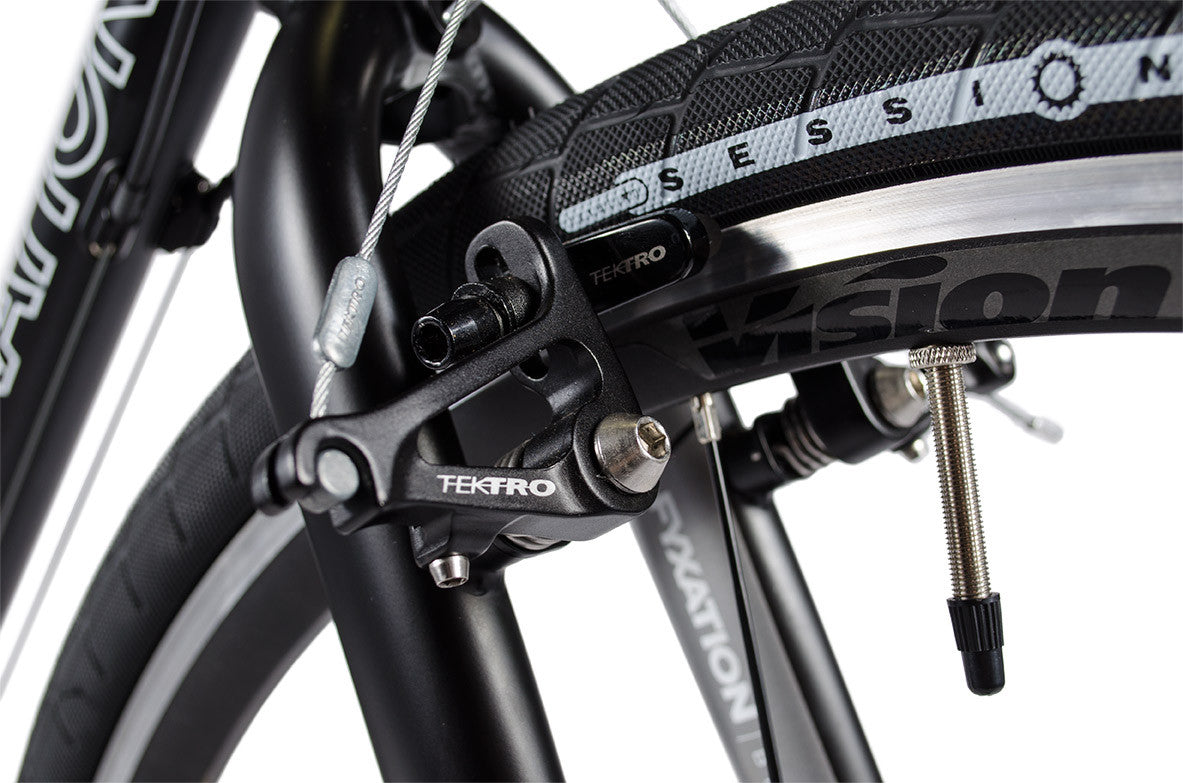

    • Brake Calipers: Tektro CR710
    • Shift/Brake Levers: Shimano Tiagra
    • Handlebars: FSA Omega 31.8mm
    • Stem: FSA Omega
    • Wheelset: FSA Vision Team 25
    • Seatpost: Fyxation Pilot Micro-adjust
    • Saddle: Fyxation Pilot
    • Tires: Fyxation Session 700 35c
    • Tire Clearance: 700x42c or 700x35c with fenders
    • 4 Size options: 49, 53, 56, 59cm
  • FRAME SIZE 49cm 53cm 56cm 59cm
    Recommended Height 5'4" - 5'6" 5'6" - 5'9" 5'9" - 6'0" 6'0" - 6'3"
    Seat Tube Angle (degree) 75.0 73.5 73.5 73.0
    Head Tube Angle (degree) 71.0 72.0 72.0 72.5
    Seat Tube Length 490mm 530mm 560mm 590mm
    Top Tube Length 529mm 537mm 565mm 580mm
    Head Tube Length 117mm 126mm 157mm 190mm
    BB Drop 70mm 70mm 70mm 70mm
    Chainstay Length 427mm 427mm 427mm 427mm
    Wheelbase 1013mm 1012mm 1027mm 1032mm
    Standover Height 745mm 770mm 805mm 835mm
    Fork Length 400mm 400mm 400mm 400mm
    Fork Rake 45mm 45mm 45mm 45mm
    Stack 542mm 563mm 583mm 617mm
    Reach 382mm 387mm 390mm 392mm
  • Our complete bikes ship via FedEx in a well padded professional bike box. The bikes ship 95% assembled and you'll simply need a few tools to get your bike built up and on the road. As always, we recommend taking your bike to your local bike shop to get it built up properly. If you don't have a shop nearby, you'll need a pedal wrench and a hex wrench to assemble your bike.

    * Contact us at info@fyxation for international shipping rates
