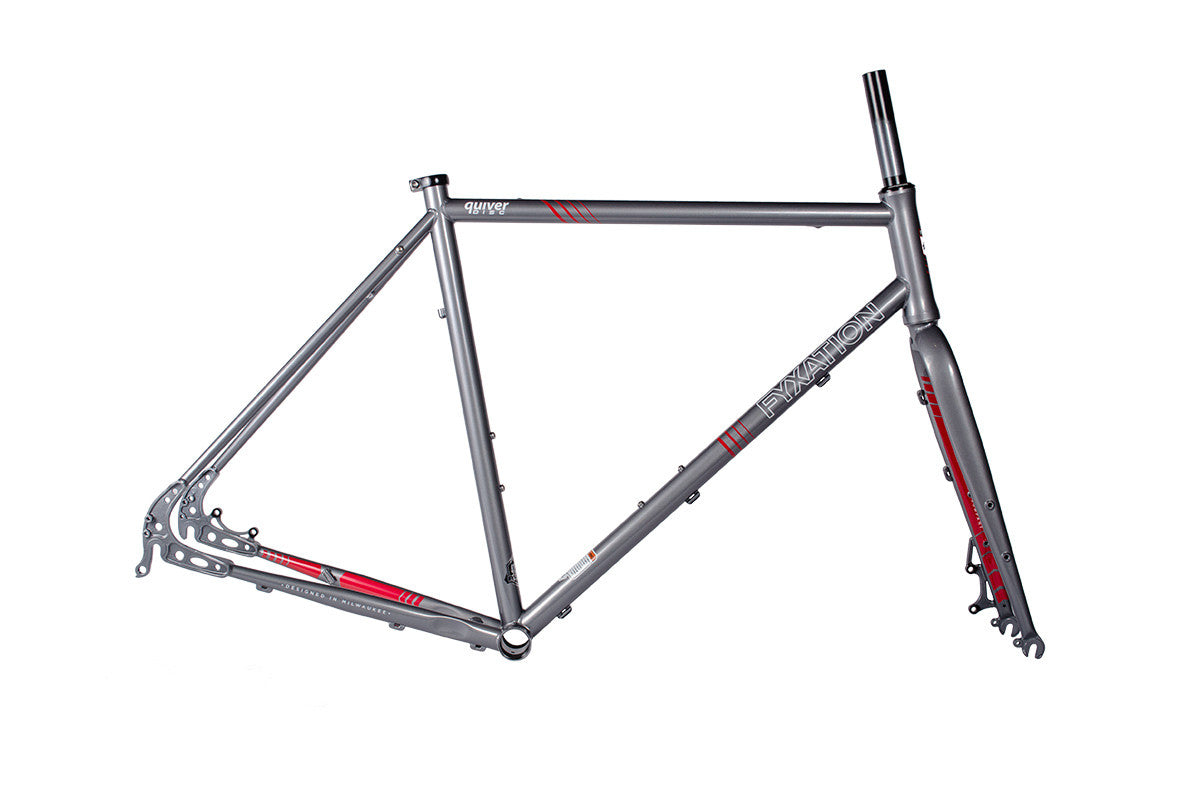

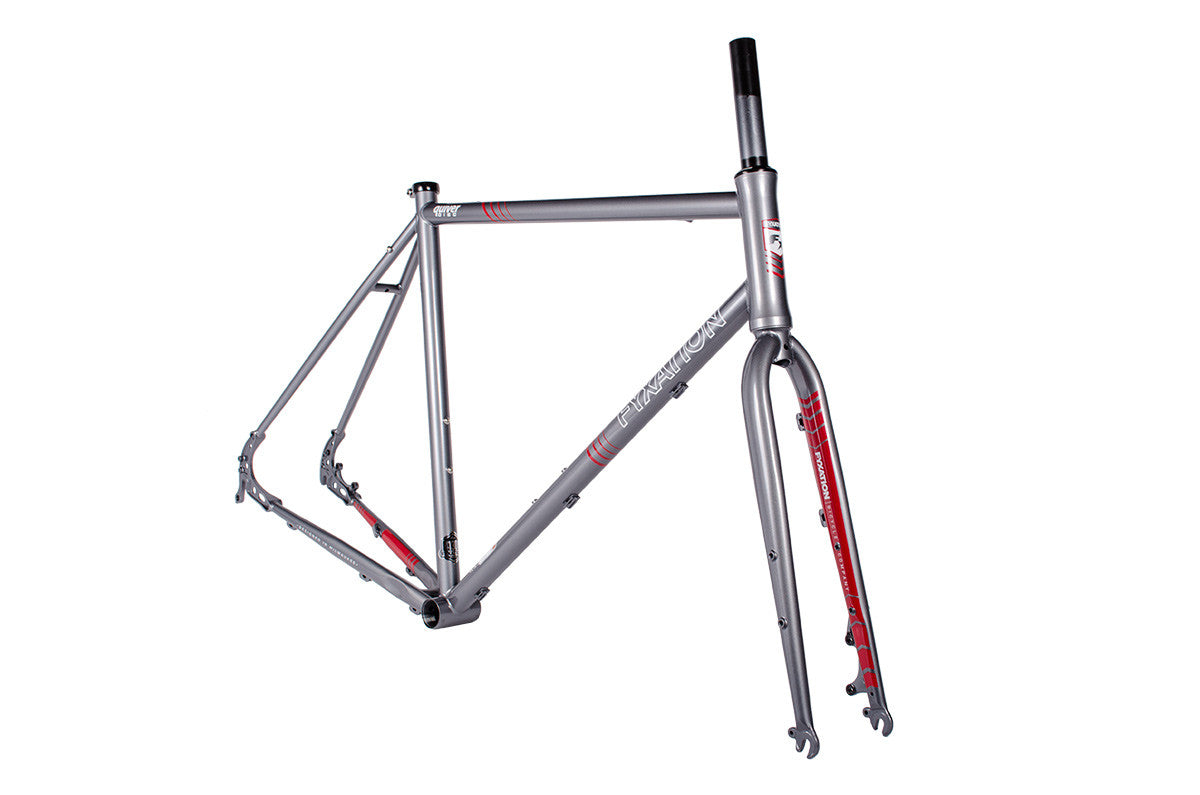

Quiver Disc Frameset

1   |


  • The quiver is back and here to stay! It has been redesigned in order to be redefined. Originally introduced in 2012 the purpose of this frame was to give you a single platform that you could do most things on one ride. In the bike or ski industry most people talk about their "quiver" which basically means they own a ton of gear to do what they want. The Fyxation Quiver was designed to do it all and with it's wide tire clearance, ample fender/rack mounts and durable steel frame, this bike truly is your one bike Quiver.

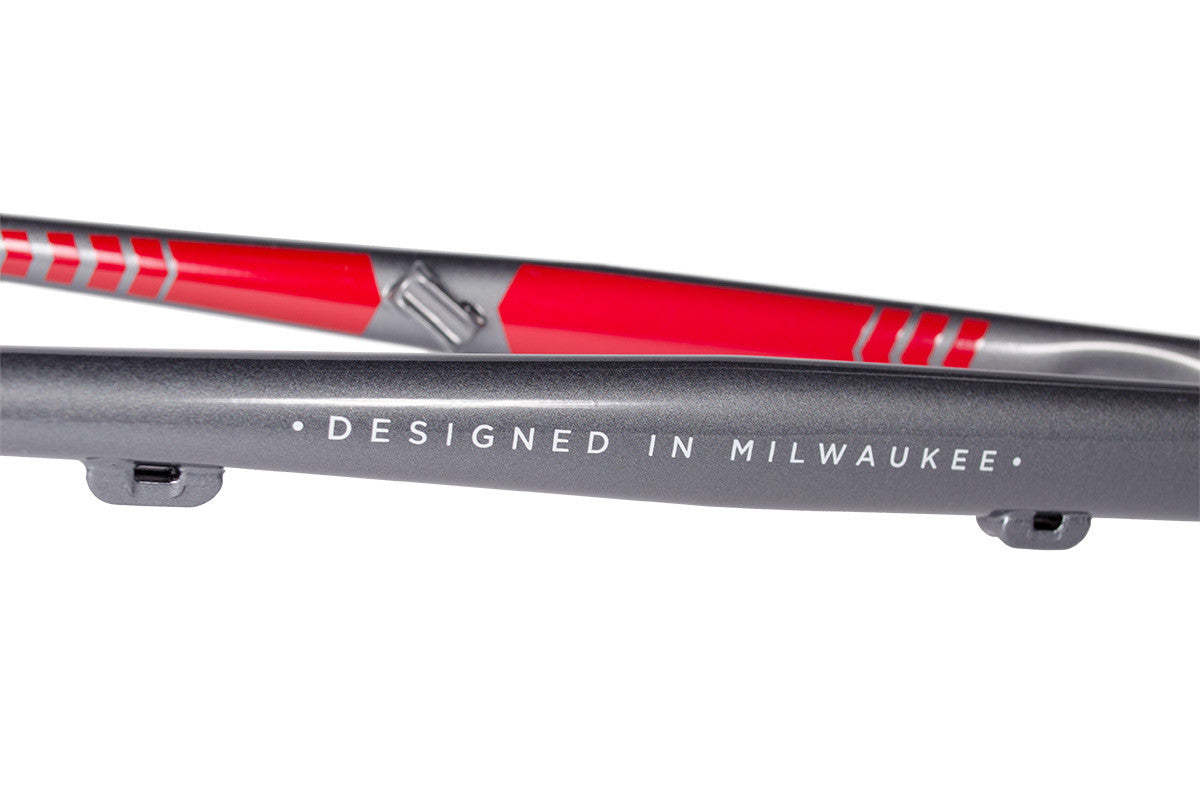

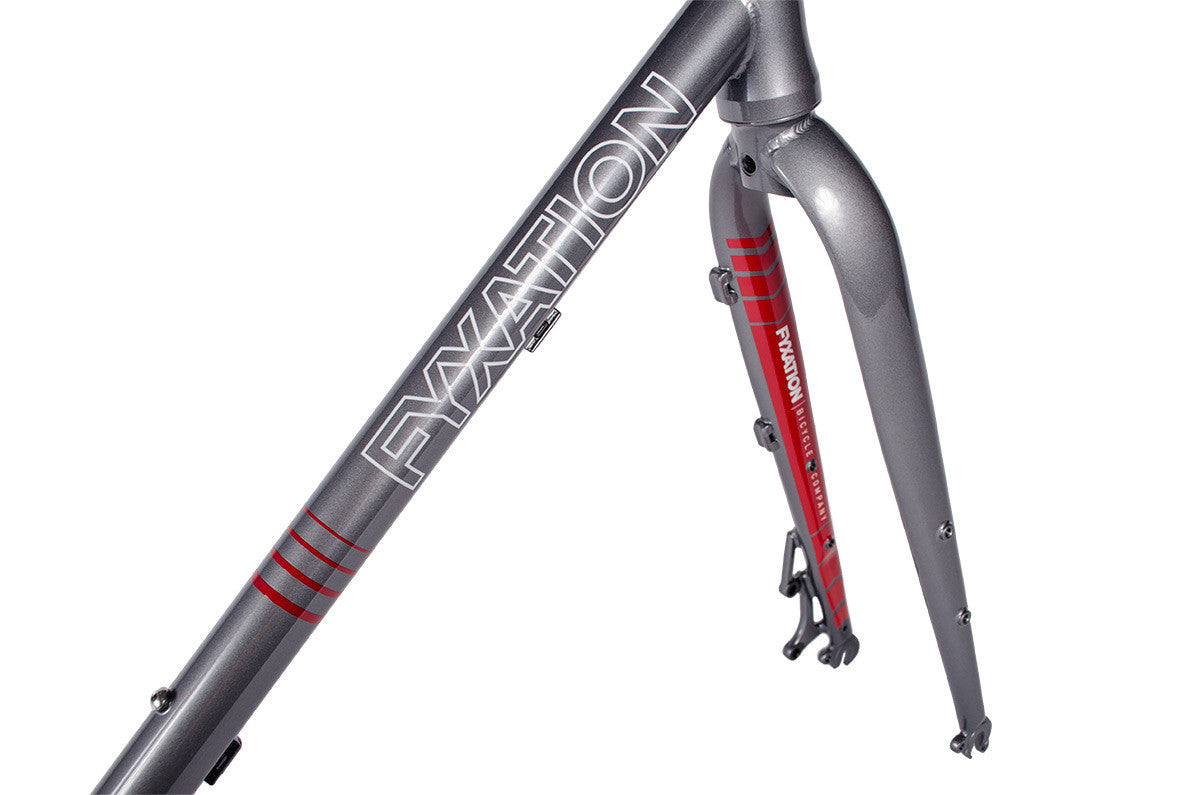

    Designed here in Milwaukee, the Quiver is built around a 4130 chromoly steel frame and fork that was built to handle the toughest urban environments, gravel trails and the open road. The Quiver Disc geometry has been updated to handle a week of bike packing, touring or even your local cyclocross race. The Quiver performs flawlessly on the open road road, remote gravel trails and on our daily commute into the office.

    With the introduction of disc brakes and tire clearance up to 42mm you can be sure to maintain control where ever your ride may take you. Featuring full rack and fender mounts that include bottle cage spaced mounts on the fork this bike is ready for anything. Each frame is ED coated which is an automotive level frame protection which means this frame will last a lifetime.

    Sizing

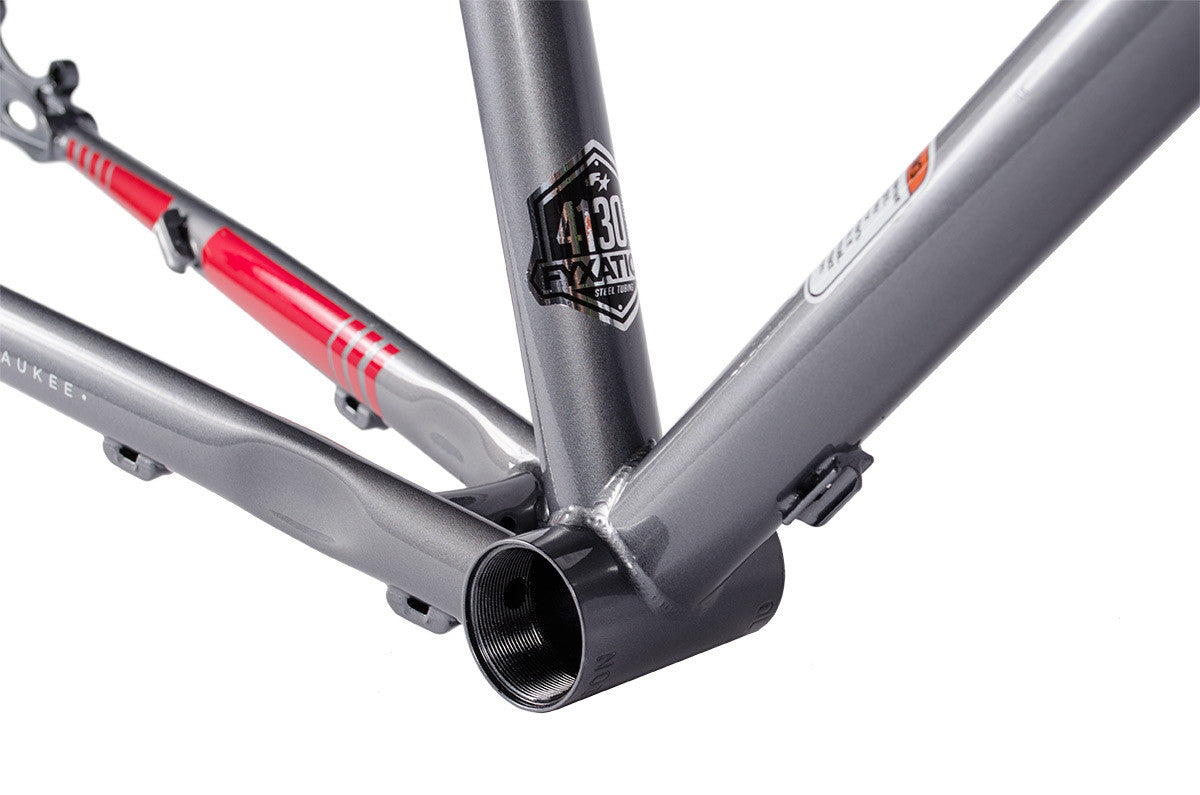

    • 4130 Chromoly frame and fork
    • Clearance for up to a 700x42c tire
    • Compatible with 650b and 27.5 wheels (up to 42c tire)
    • ED Undercoating (automotive level frame protector)

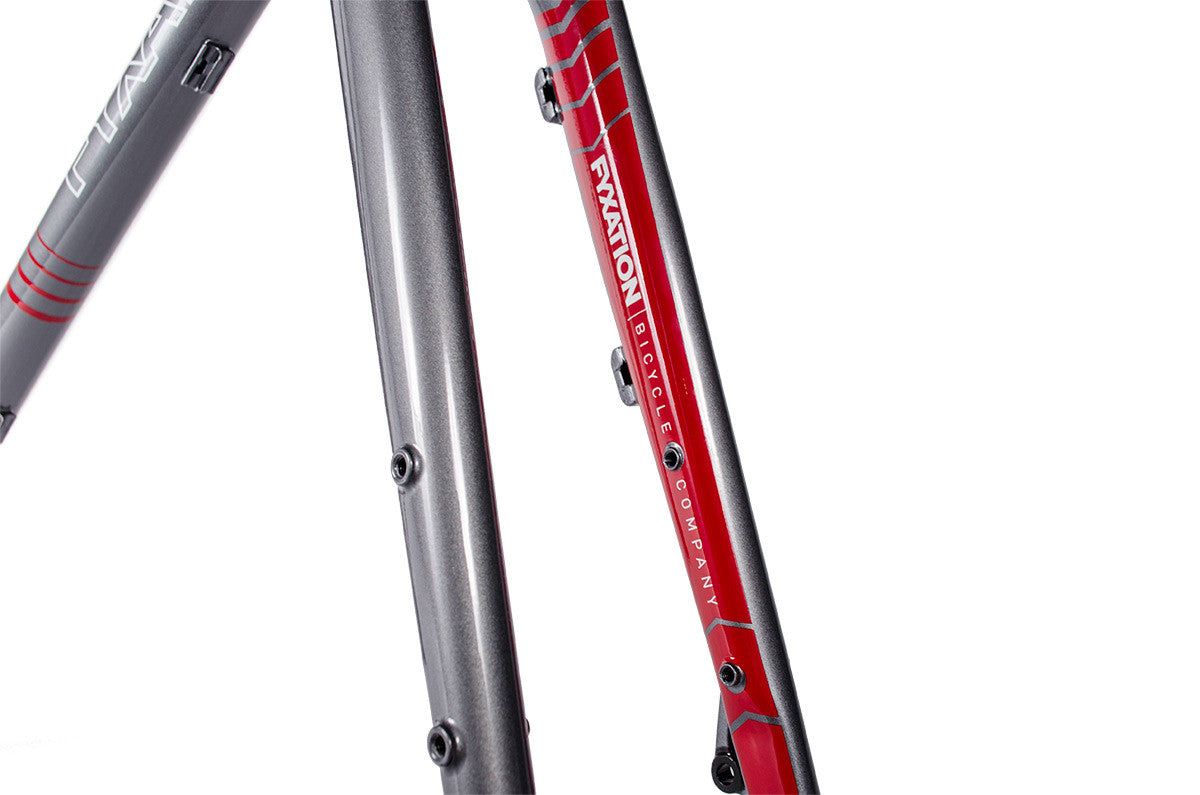

    • Multiple rack and fender mounts

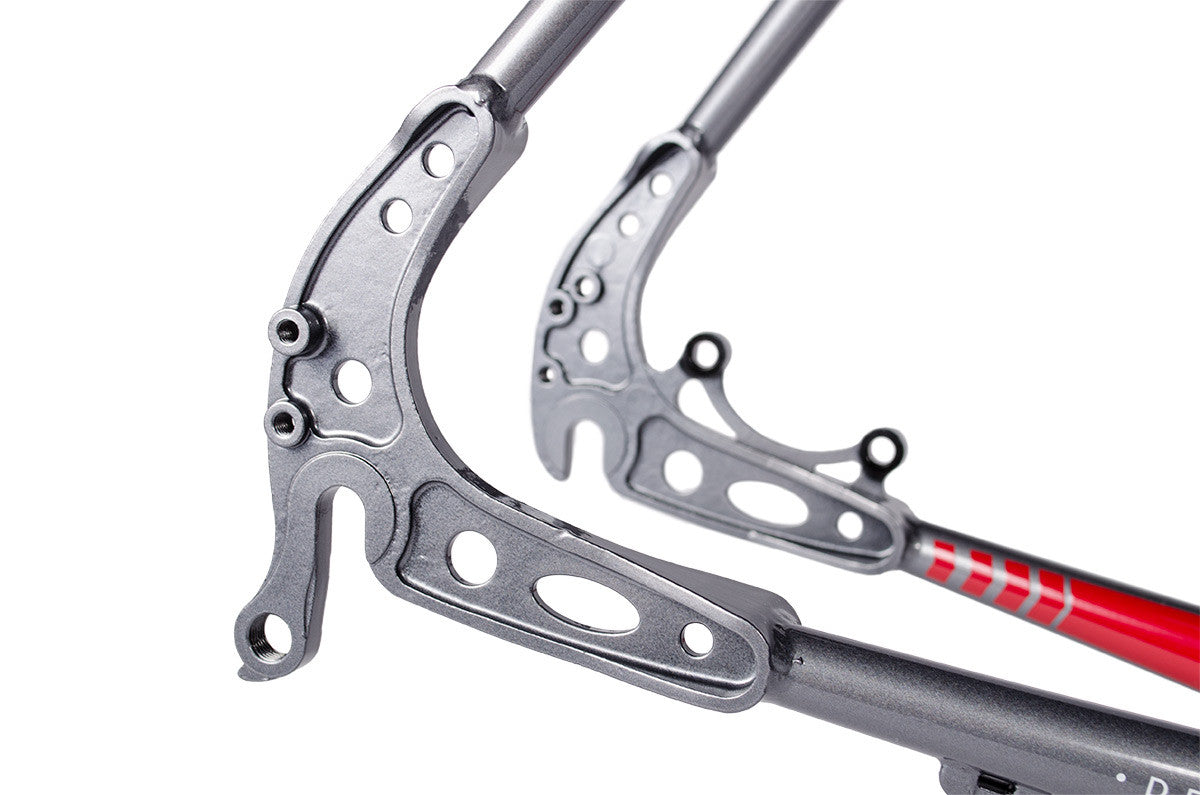

    • IS disc brake mounts

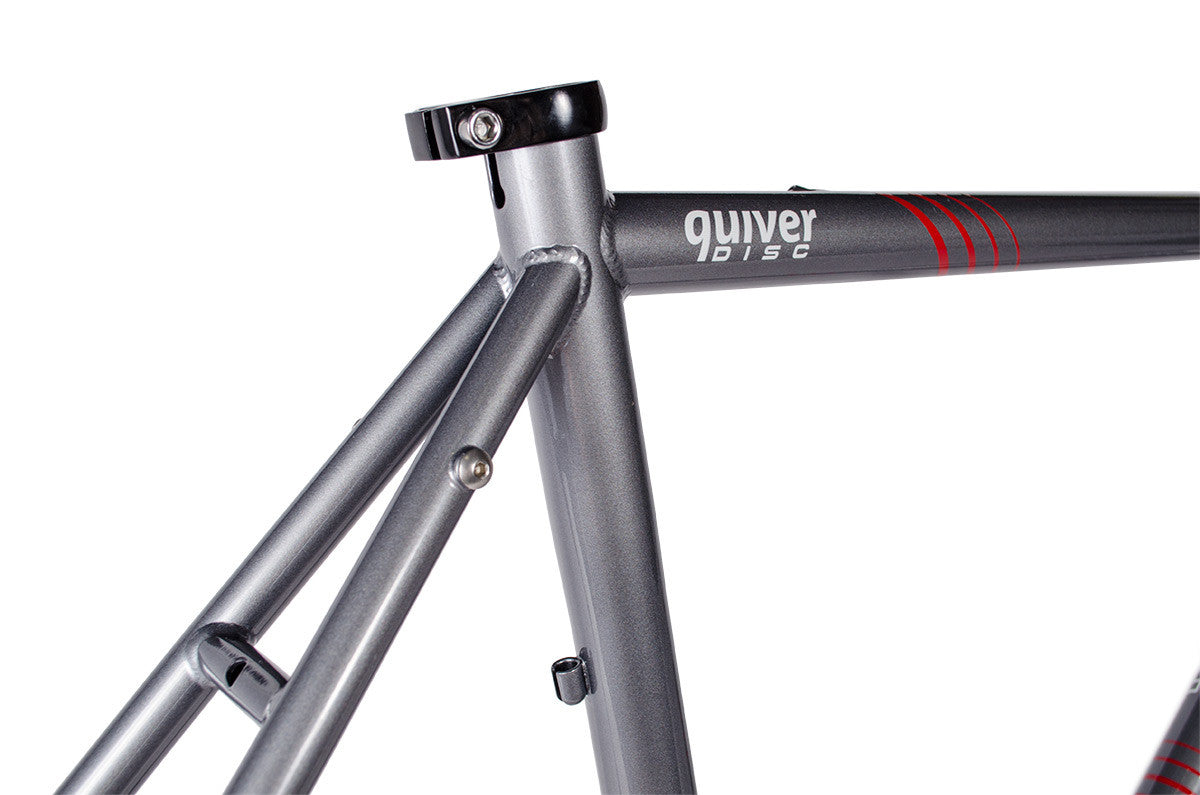

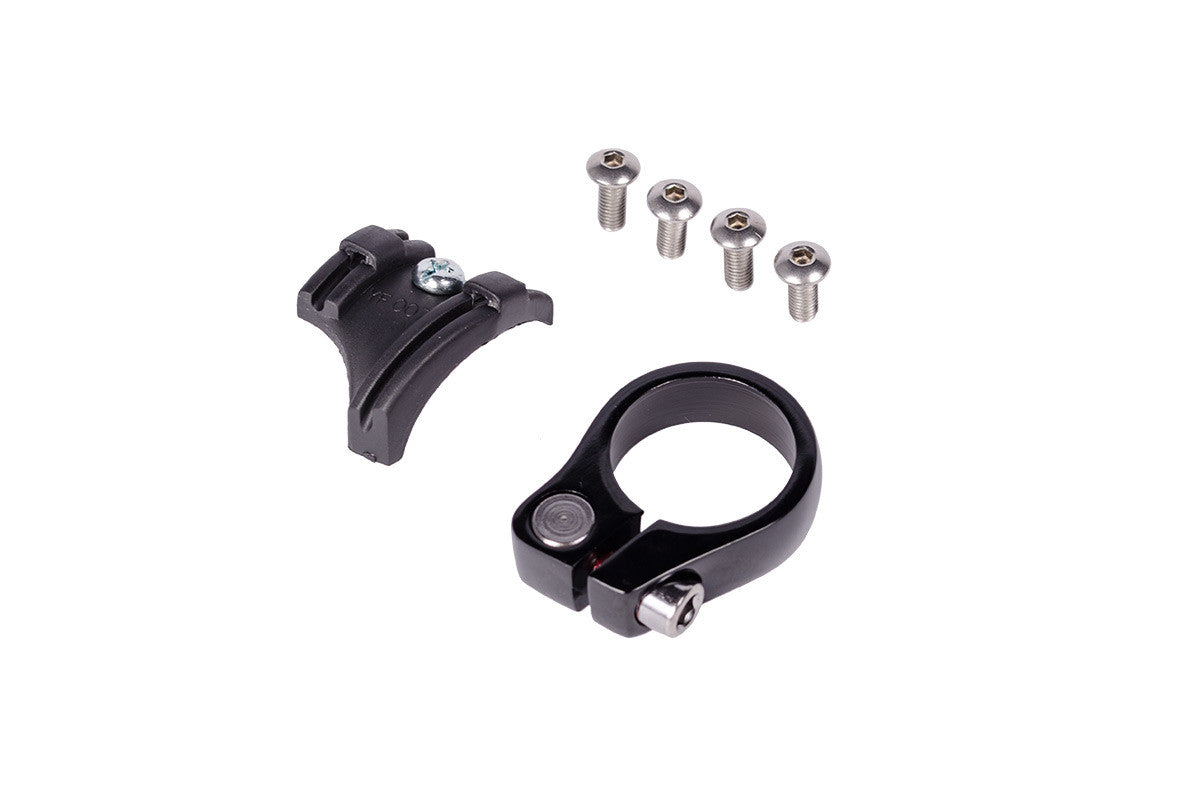

    • Seat post clamp diameter: 29.8 (Clamp included)
    • Internal front shift routing
    • Front derailleur clamp diameter: 28.6mm
    • Bottom pull front derailleurs will need a cable pulley

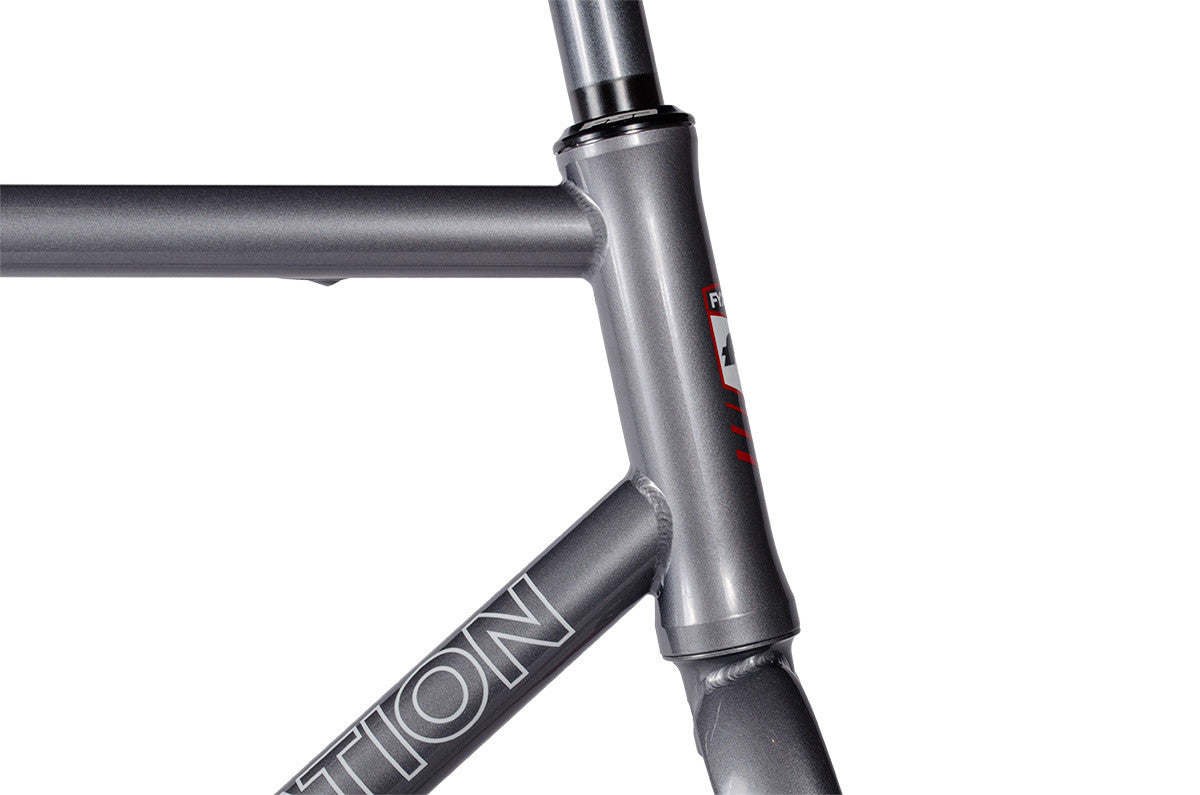

    • Headset Required: Integrated (IS41)
    • Rear wheel spacing 132.5mm
    • 6 Size options: 46, 49, 53, 56, 59, 62cm
  • FRAME SIZE 46cm 49cm 53cm 56cm 59cm 62cm
    Recommended Height 5'0" - 5'4" 5'4" - 5'6" 5'6" - 5'9" 5'9" - 6'0" 6'0" - 6'3" 6'3" - 6'6"
    Seat Tube Angle (degree) 75.0 75.0 73.5 73.5 73.0 72.5
    Head Tube Angle (degree) 70.0 71.0 72.0 72.0 72.5 72.5
    Seat Tube Length 460mm 490mm 530mm 560mm 590mm 620mm
    Top Tube Length 510mm 529mm 537mm 565mm 580mm 600mm
    Head Tube Length 110mm 117mm 126mm 157mm 190mm 216mm
    BB Drop 70mm 70mm 70mm 70mm 70mm 70mm
    Chainstay Length 427mm 427mm 427mm 427mm 427mm 427mm
    Wheelbase 1002mm 1013mm 1012mm 1027mm 1032mm 1046mm
    Standover Height 725mm 745mm 770mm 805mm 835mm 865mm
    Fork Length 400mm 400mm 400mm 400mm 400mm 400mm
    Fork Rake 45mm 45mm 45mm 45mm 45mm 45mm
    Stack 532mm 542mm 563mm 583mm 617mm 641mm
    Reach 365mm 382mm 387mm 390mm 392mm 397mm
    Weight 3490g 3538g 3628g 3719g 3810g 3855g
  • Our complete bikes ship via FedEx in a well padded professional bike box. The bikes ship 95% assembled and you'll simply need a few tools to get your bike built up and on the road. As always, we recommend taking your bike to your local bike shop to get it built up properly. If you don't have a shop nearby, you'll need a pedal wrench and a hex wrench to assemble your bike.

    * Contact us at info@fyxation for international shipping rates
