MEET THE PIXEL 3
Featuring Fyxation's durable steel frame, sealed bearing hubs and bottom bracket, forged 6061 alloy cranks, and light but quick 30mm deep aero rims, the Pixel 3 is built to last What are you waiting for? All bikes ship via UPS to your door or your favorite local bike shop.
We recommend that you size your bike based on your height and inseam. This insures you have proper clearance over the top tube, and the other fit dimension's will fall in line. Still have questions on the best size? Chat with us below...
GEOMETRY: 50/54/58 CM
RIDER HEIGHT: 5'2- / 5'7"-5'11" / 6'0-6'3"
A: 75.0 / 75.0 / 74.5
B:73.0 / 73.0 / 73.0
C: 500MM / 540MM / 580MM
D: 530MM / 555MM / 580MM
E: 90MM / 117MM / 155MM
F: 60MM / 60MM / 60MM
G: 410MM / 410MM / 410MM
H: 981MM / 1001MM / 1012MM
I: 30.5" / 31.5" / 33"
J: 393MM / 393MM / 393MM
K: 38MM / 38MM / 38MM

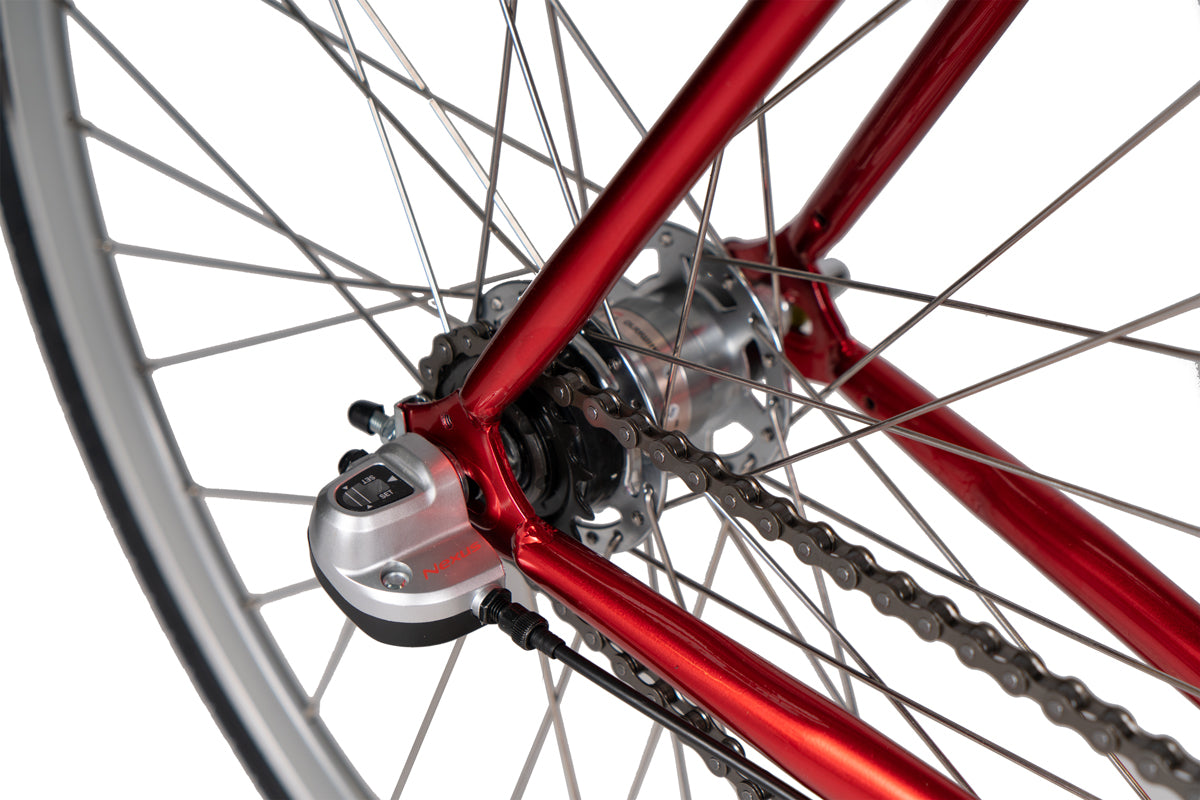

The Pixel 3 is equipped with the reliability and low maintenence of Shimano's Nexus 3 speed internal hub. Twist and go! You don't even need to be pedaling to shift between gears.
FRAMESET: Fyxation hi-tensile steel
FORK: Fyxation hi-tensile steel

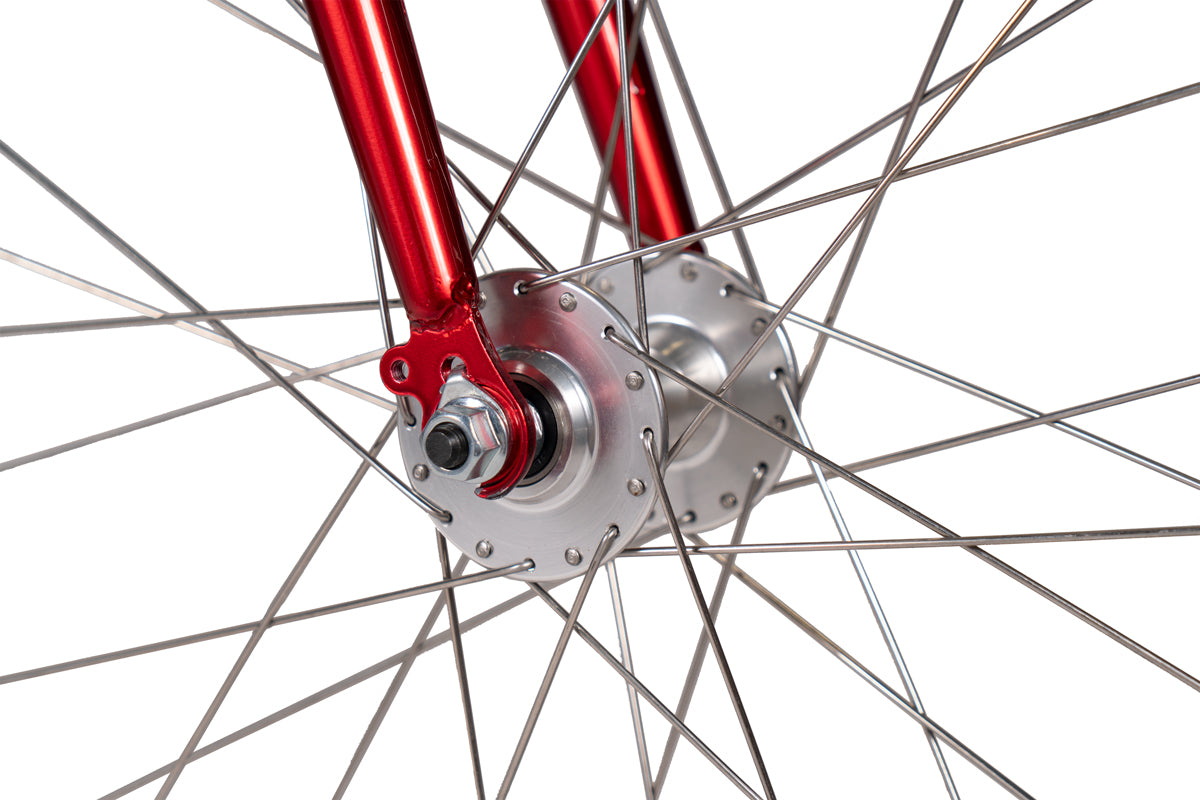

FRONT HUB: Forged flip/flop32H
RIM: Alloy, 30mm
SPOKES: Stainless, 14G
STEM: 3D Forged alloy stem
HANDLEBARS: Alloy shallow rise
BRAKES: Alloy dual pivot caliper
BOTTOM BRACKET: Sealed cartridge bearing

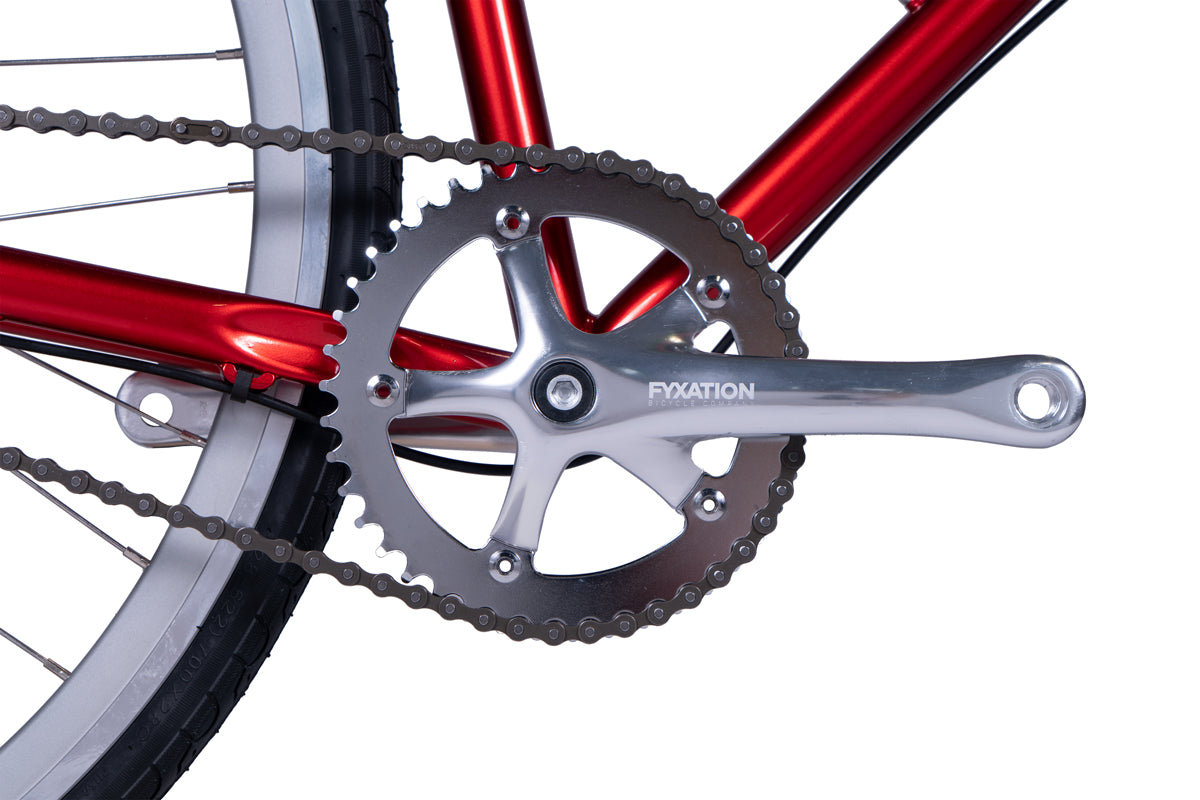

CRANKS: Forged aluminum. 165mm, 42T
PEDALS: Alloy cage Pedal w/Reflector
REAR HUB: Shimano Nexus 3 Speed, 16T

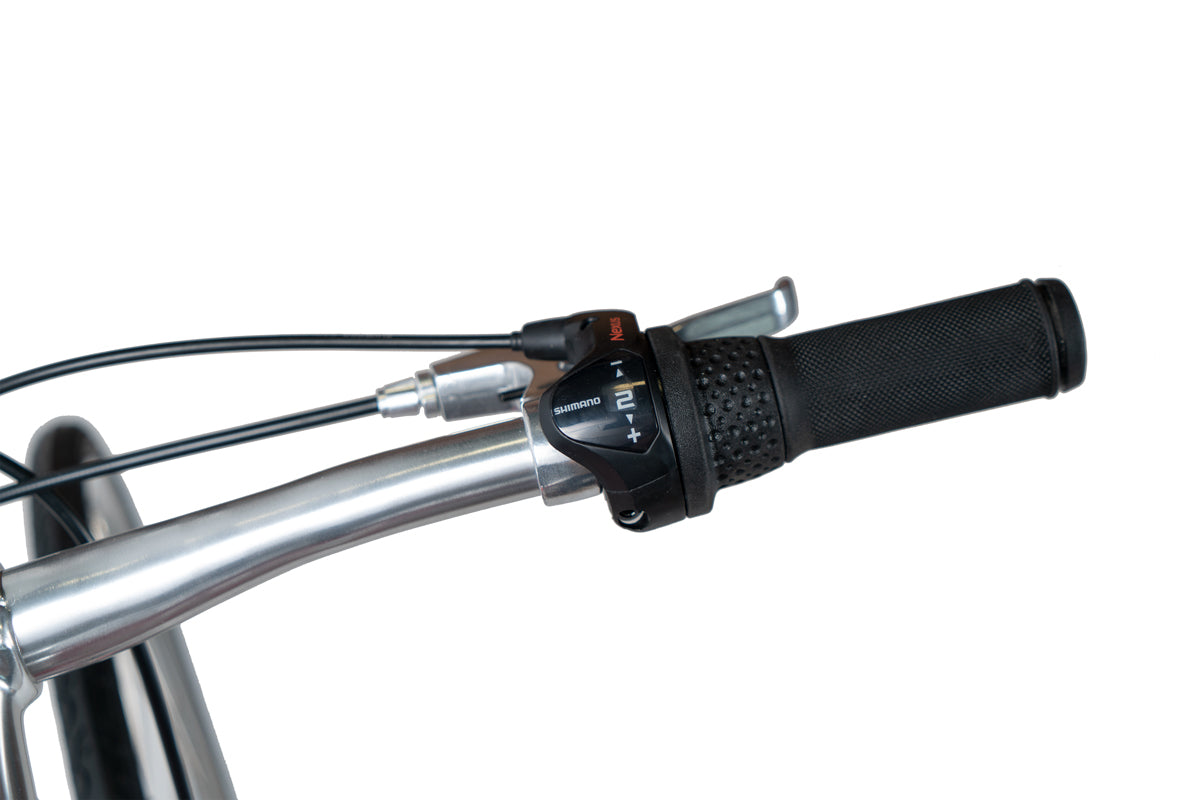

SHIFTER Shimano Nexus RevoShift CARGO: Fender/rack mounts on frame and fork dropouts
TIRE CLEARANCE: Clearance for 700x32c tires (700x28c with fenders)
GEAR RATIO: 42x16
FRAME SIZE: 50cm, 54cm, 58cm
how does my bike ship?
Our complete bikes ship via UPS Ground in a well padded professional bike box. Orders that arrive by 2 p.m. CST weekdays ship same day. We send tracking details at the time of shipment so you can track your bike online or through the Shop App.
The bikes ship 95% assembled. As always, we recommend taking your bike to your local bike shop to get it built up properly and to qualify for your warranty.
* Contact us at info@fyxation for international shipping rates
