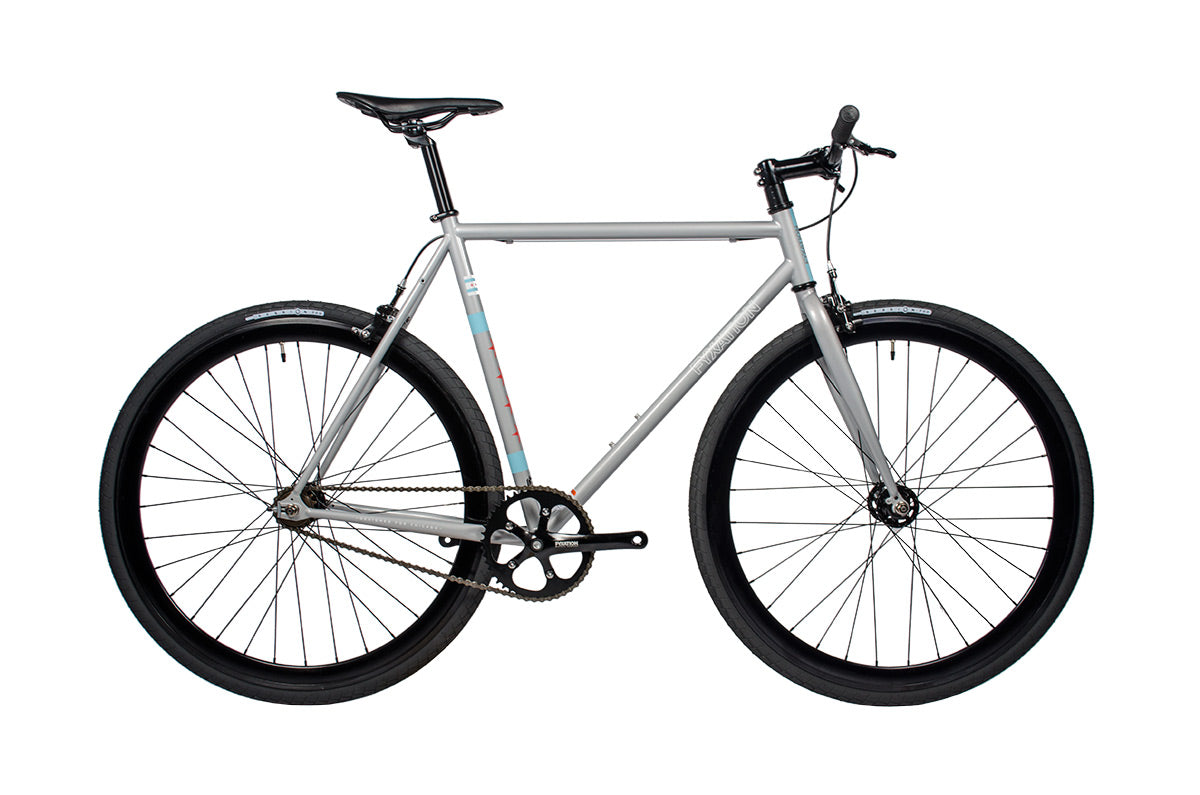

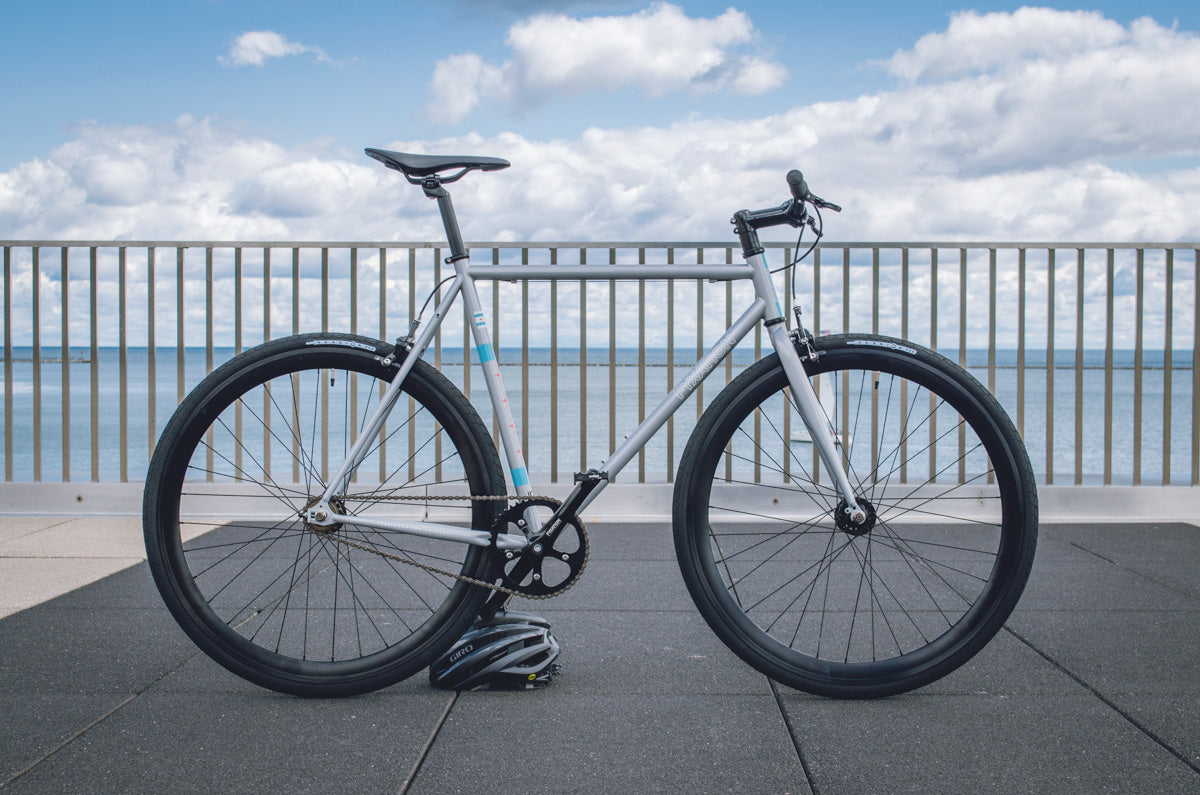

Eastside Flag Series - Chicago Flag



  • Available for pre-order now. These bikes will be in stock here in Milwaukee in the end of August, 2017. We only made 40 of these bikes and we expect them to sell out fast so pre-order today to reserve yours.

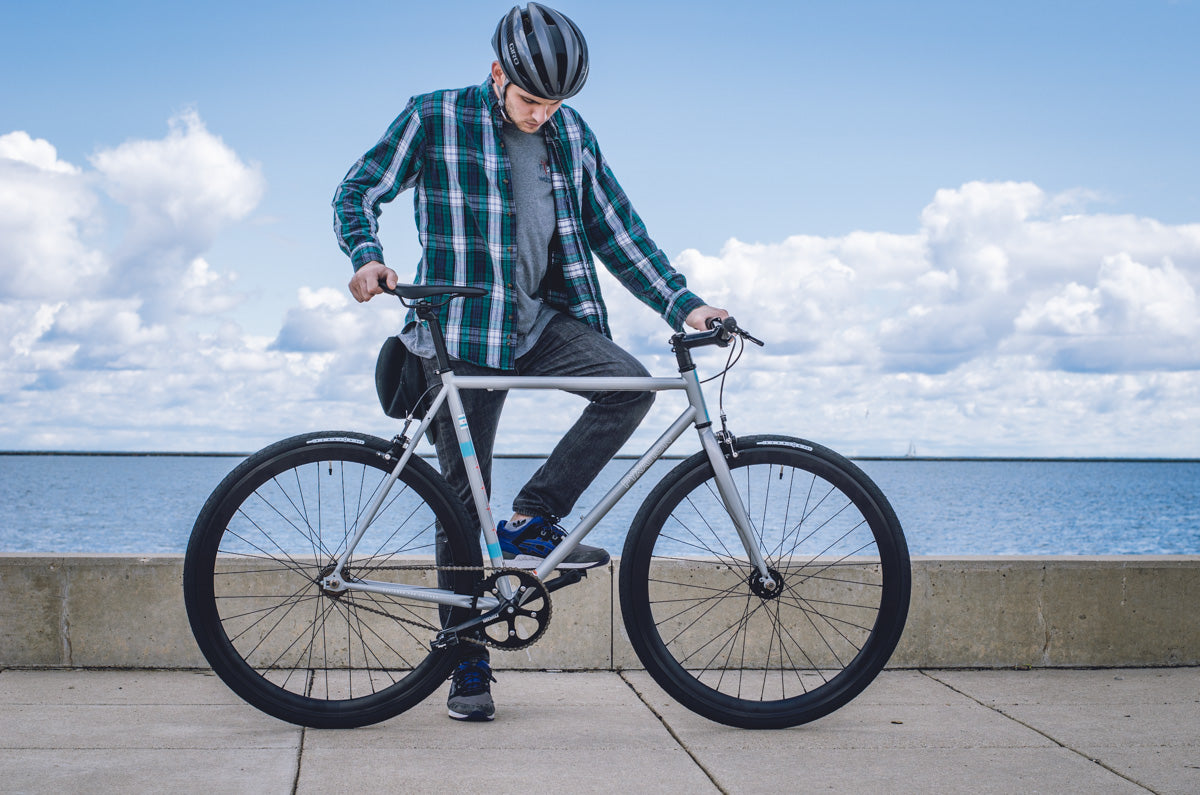

    The Fyxation Flag Series is a limited edition custom bike that we've designed around iconic city flags. These truly one of a kind custom bikes are only available through Fyxation or our local dealers in the cities these flags represent. We only made 40 of each unique design and when they're sold out, that's it. Show your support for your city with this unique custom Fyxation Eastside.

    Design Inspiration

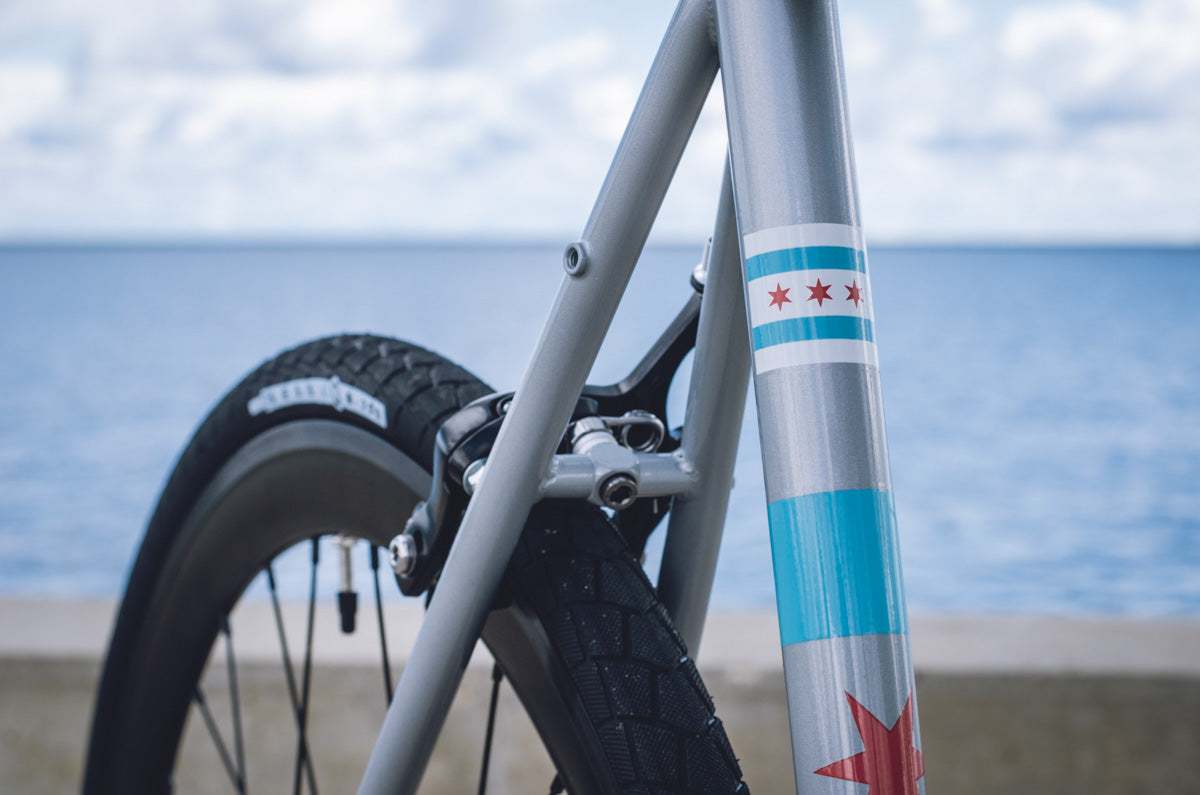

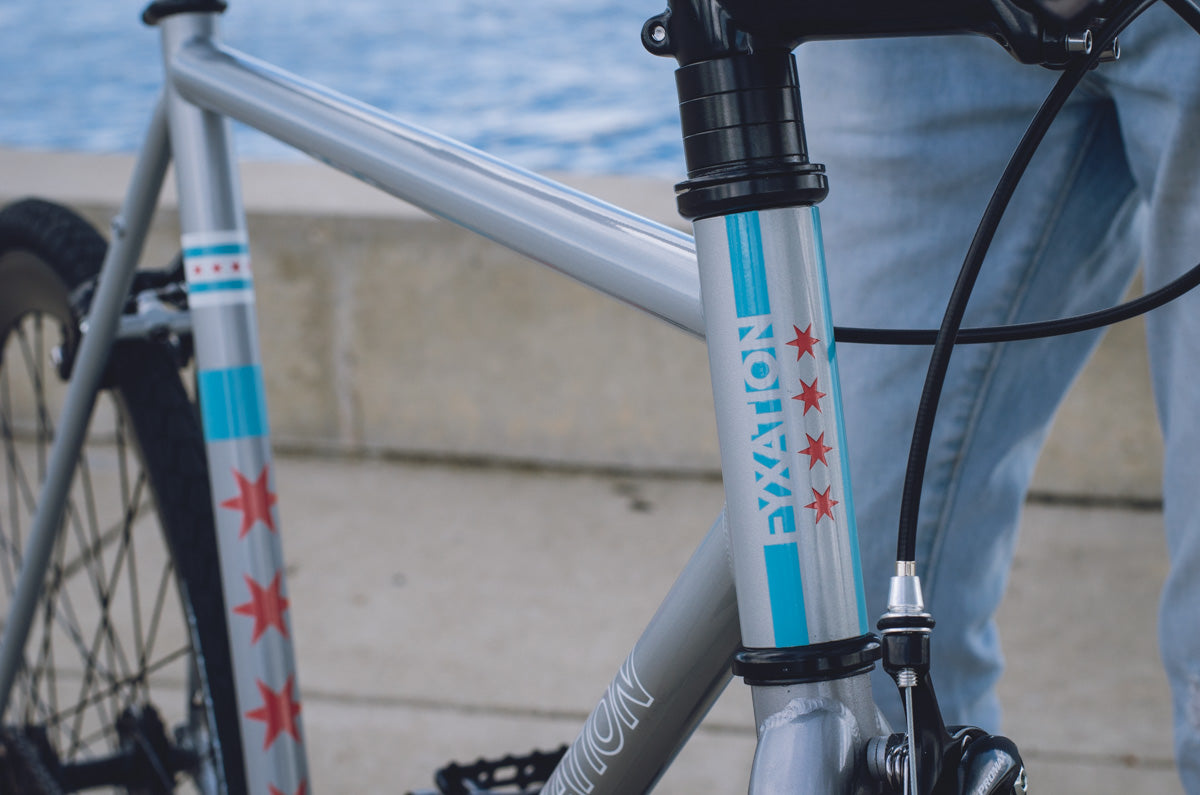

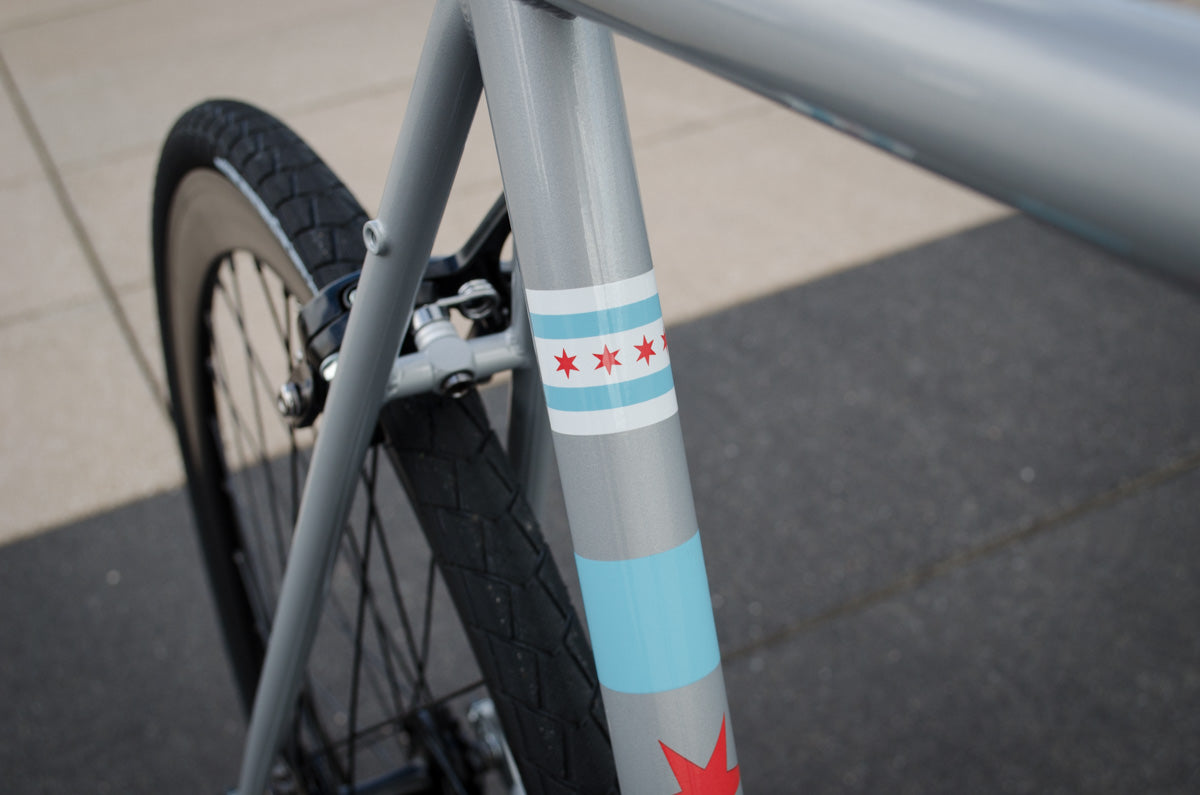

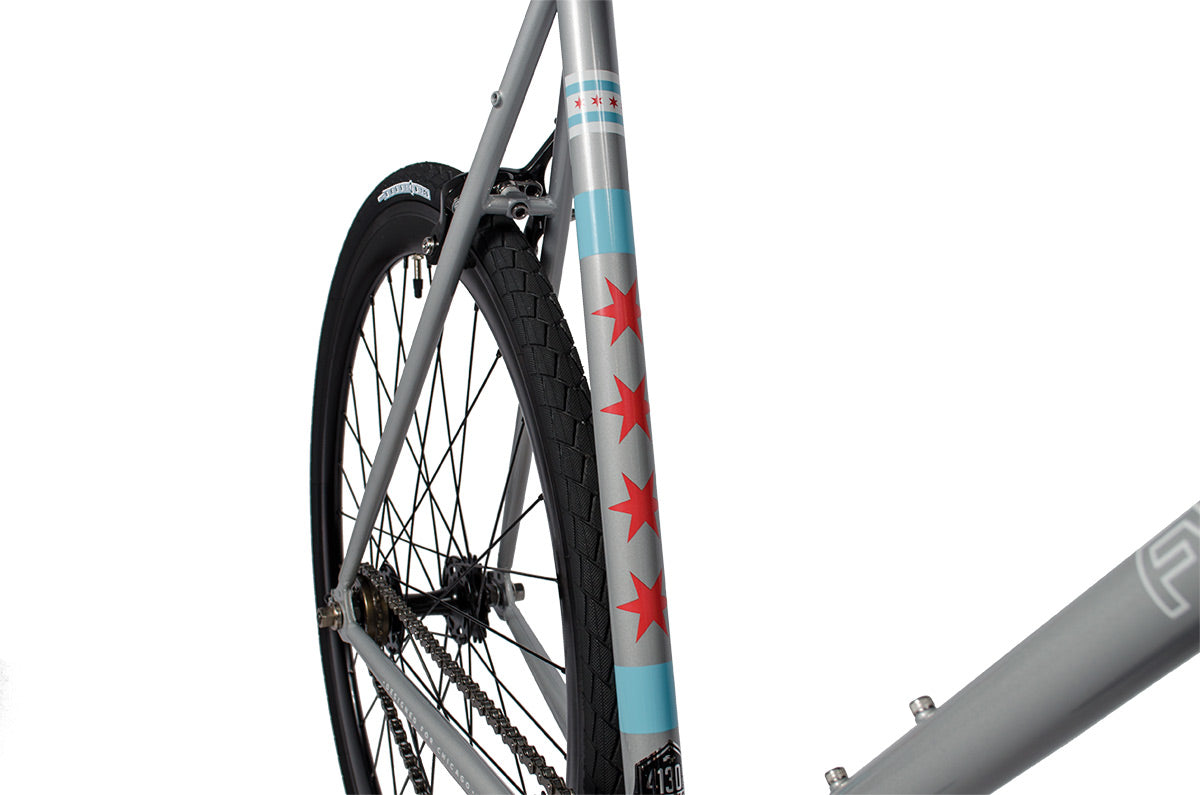

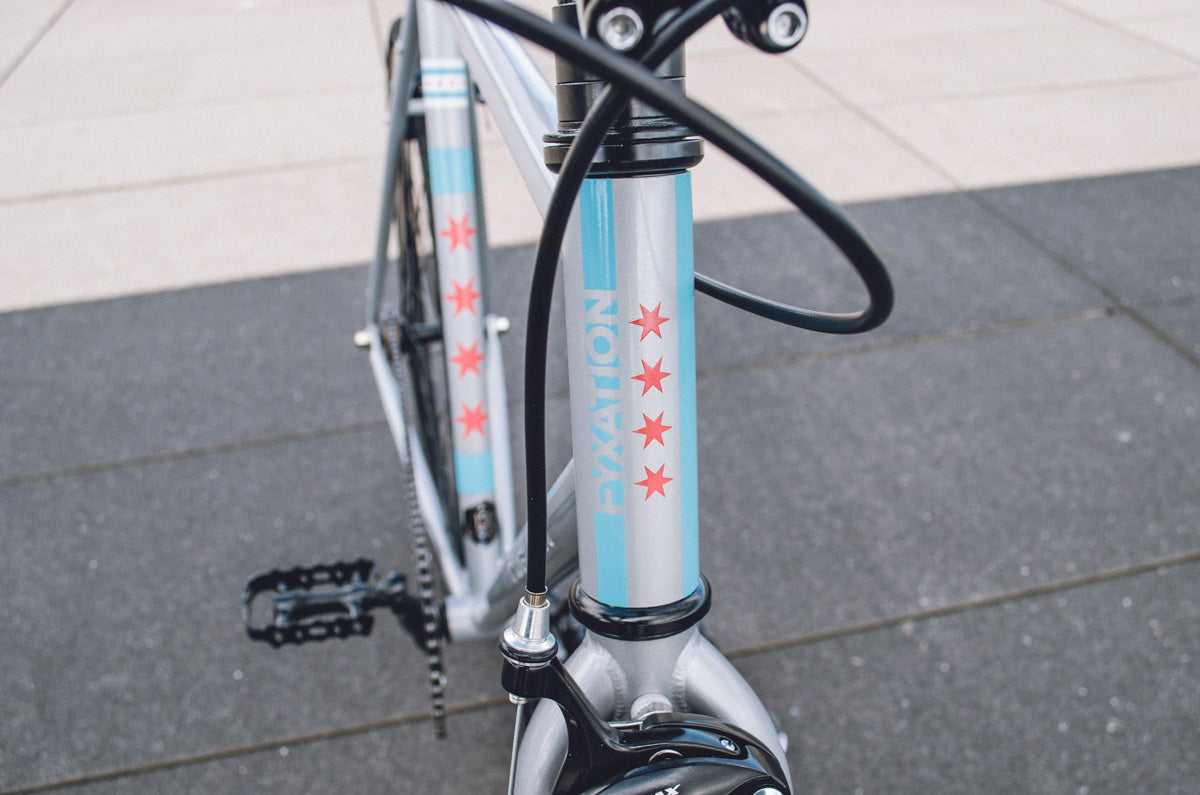

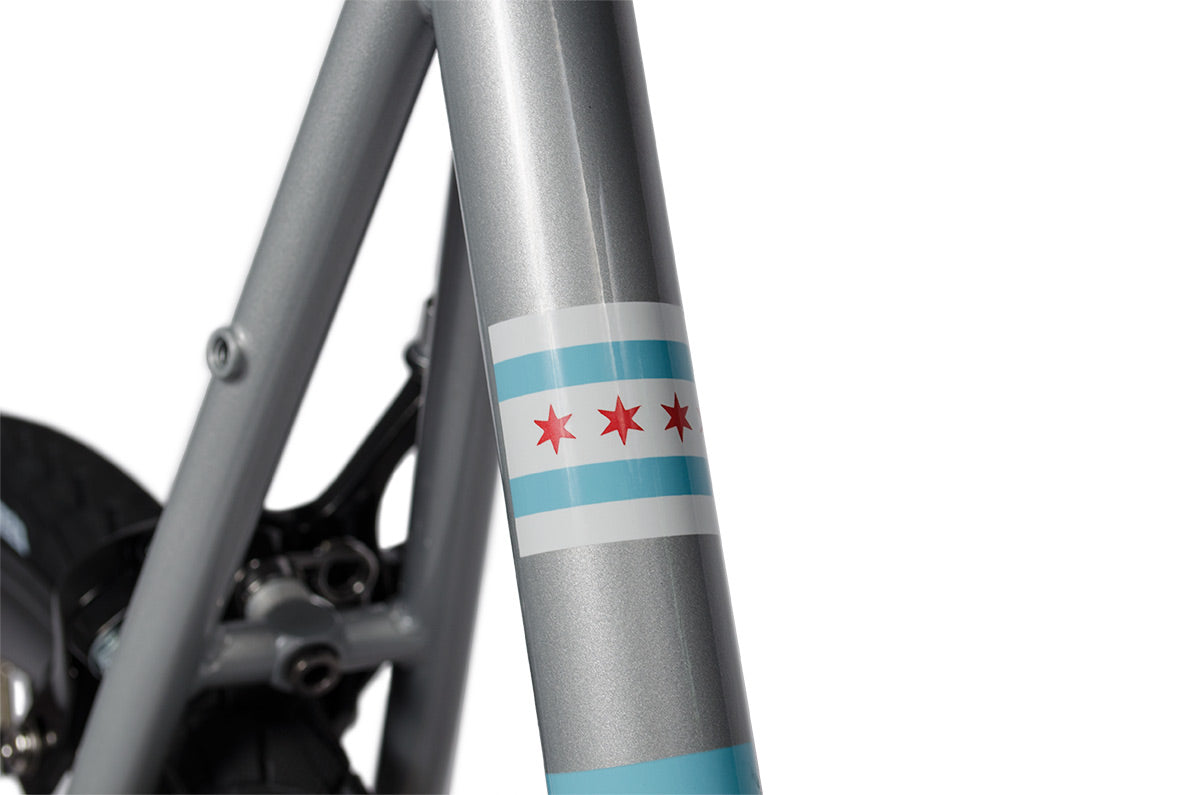

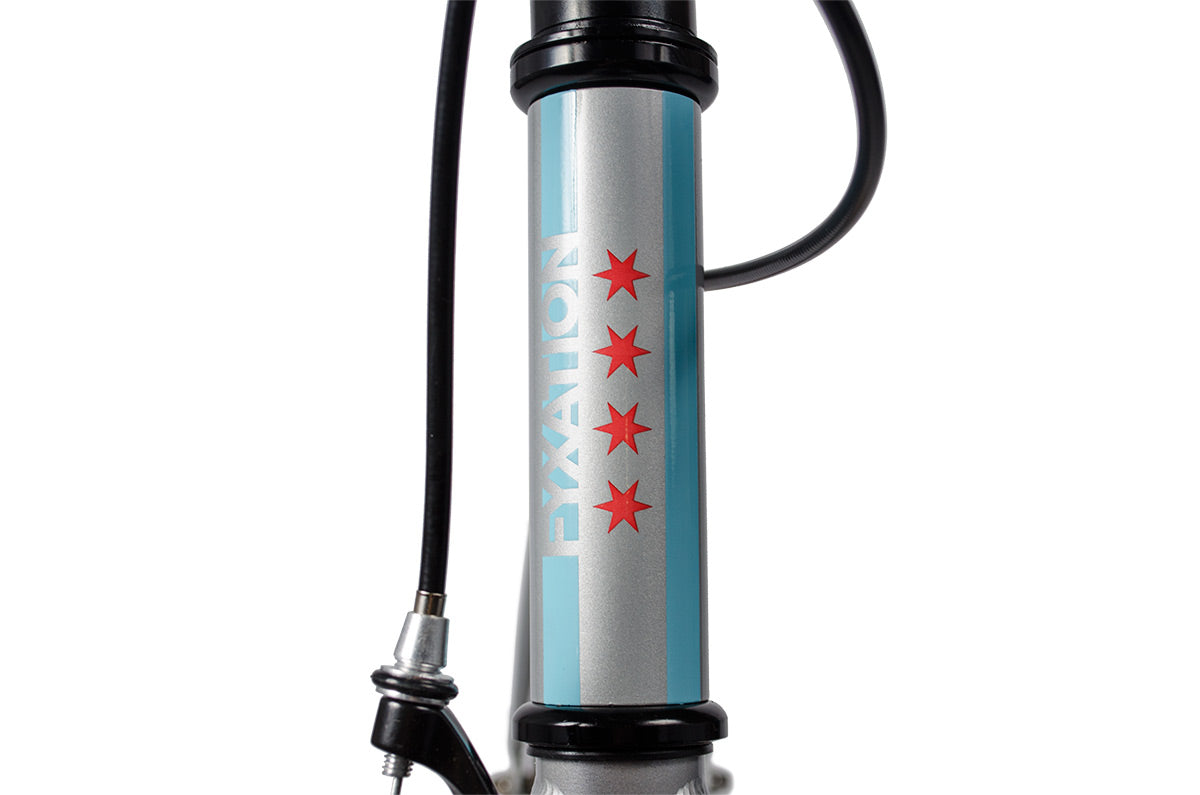

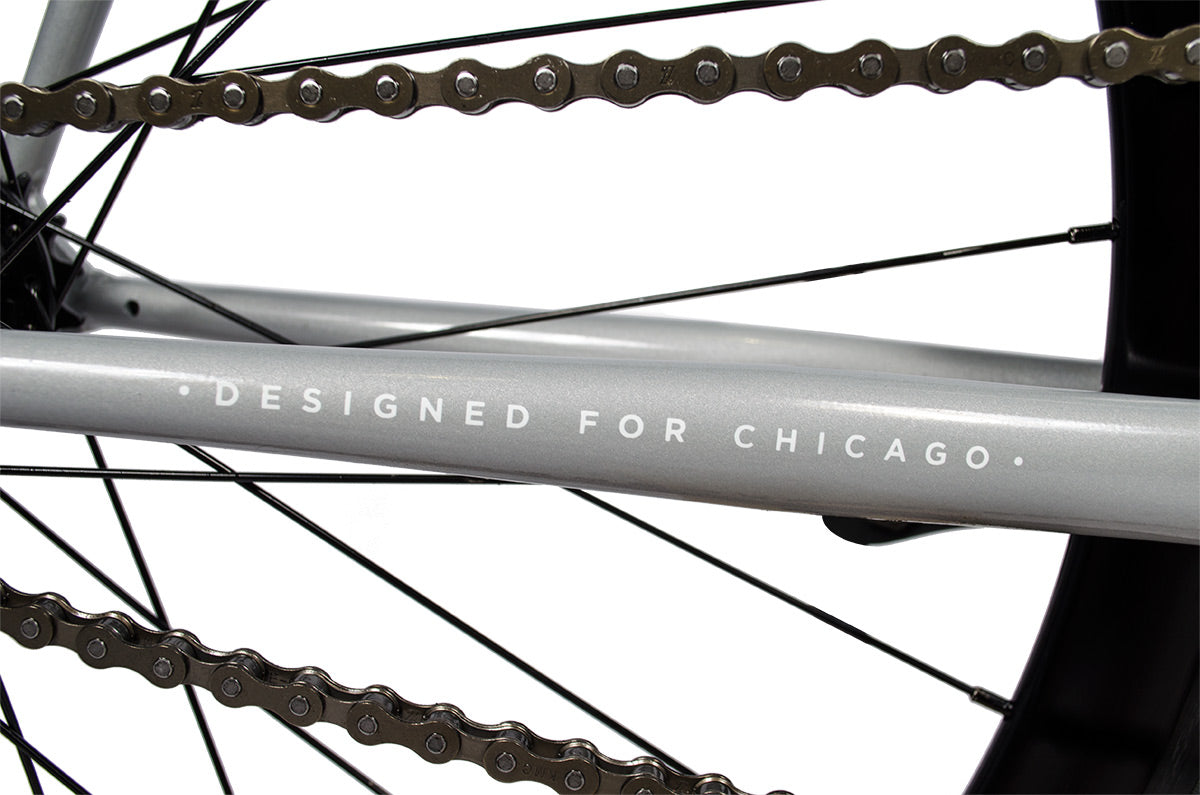

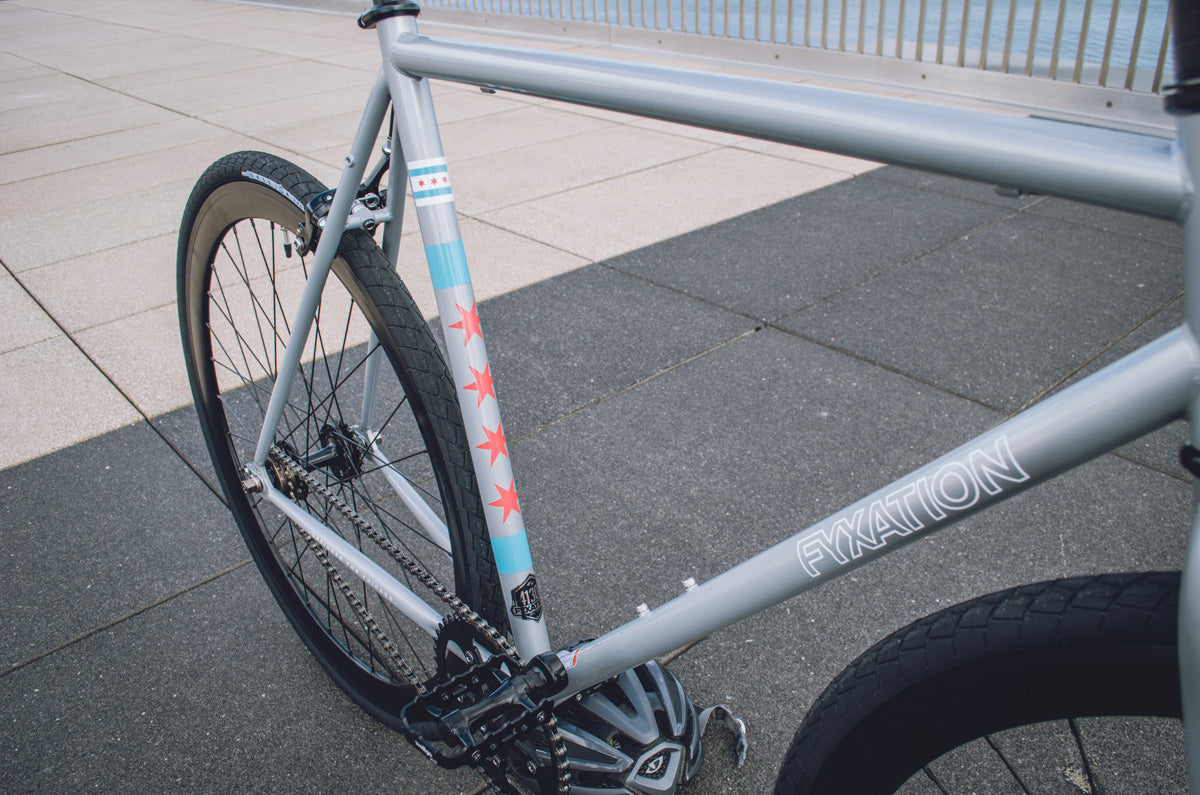

    The Chicago Flag is one of the most unique and well designed city flags and we found it fitting that our neighbors to the south would be the second release of our Flag Series bikes.  The flag is full of symbolism with the white stripes, blue stripes and stars all representing different aspects of the city from Lake Michigan, the Chicago River, the North, West and South sides of the city and historic events that shaped Chicago. We borrowed from these design elements and carefully integrated them into this custom bike. We're very excited with the final design and given Chicago's love of their flag, don't expect these bikes to last long.

    Fixed Gear or Singlespeed

    All Divide Series bikes ship as a single speed so you can coast, but can very easily be converted into a fixed gear by simply rotating the rear wheel using our flip-flop hub. Single speed bikes make a ton of sense in most urban and suburban areas. They are affordable, easy to maintain and repair and make great commuter and get around town bikes. Fyxation bikes are geared for city riding so even with one gear you can cruise around town with ease.

    Tech Specs

    The Sunrise is built using 4130 chromoly steel for both the frame and the fork which means this beauty is light and strong. We use only sealed bearing hubs in our wheels which gives the Chicago Flag Bike a smooth ride and is something you typically find in higher end track and road bikes. The Chicago Flag Bike uses durable Kenda gum wall tires which give the bike a classy look while helping you stay on the road. Finally, all Fyxation bikes ship with front and rear brakes! While this may seem silly to point out, most fixies and singlespeeds on the market ship with only one brake which is both unsafe and forces you to spend extra money adding parts after your initial purchase.

    Sizing






    • Frameset: Track Geometry, Full 4130 Chromoly Eastside Frame/Fork. Two Tone Paint

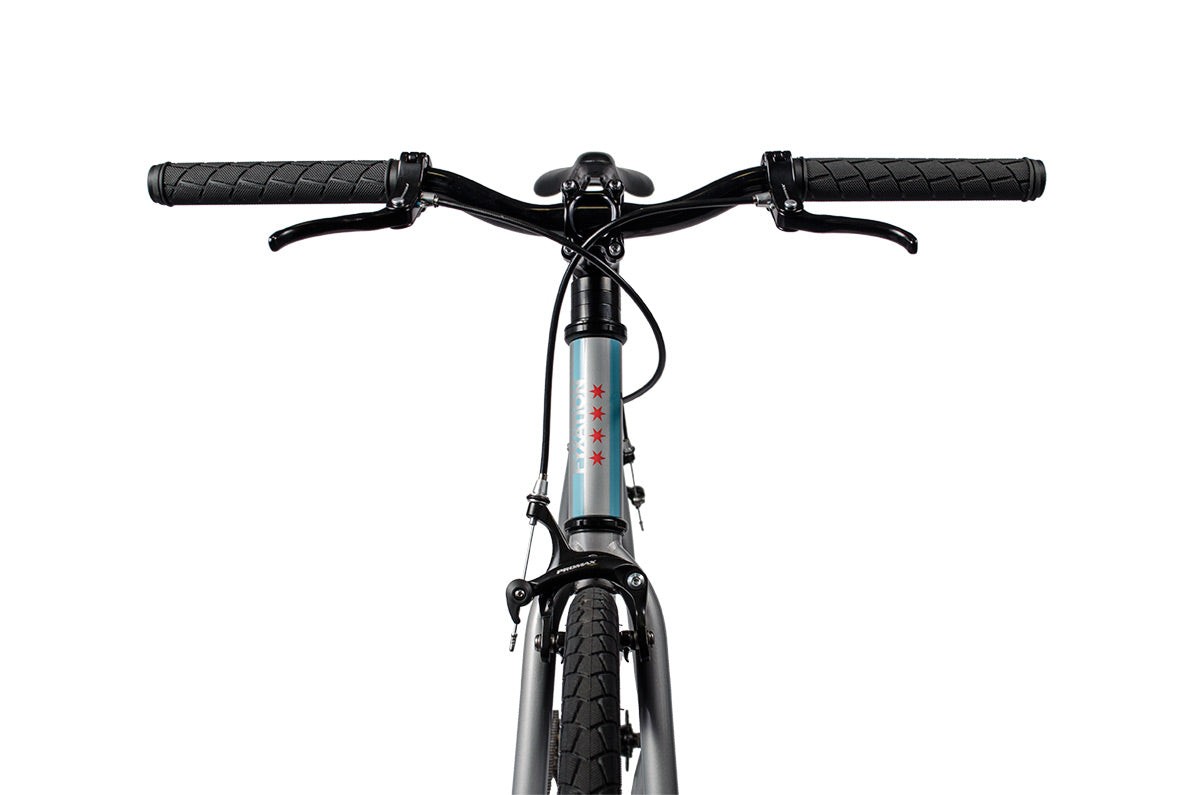

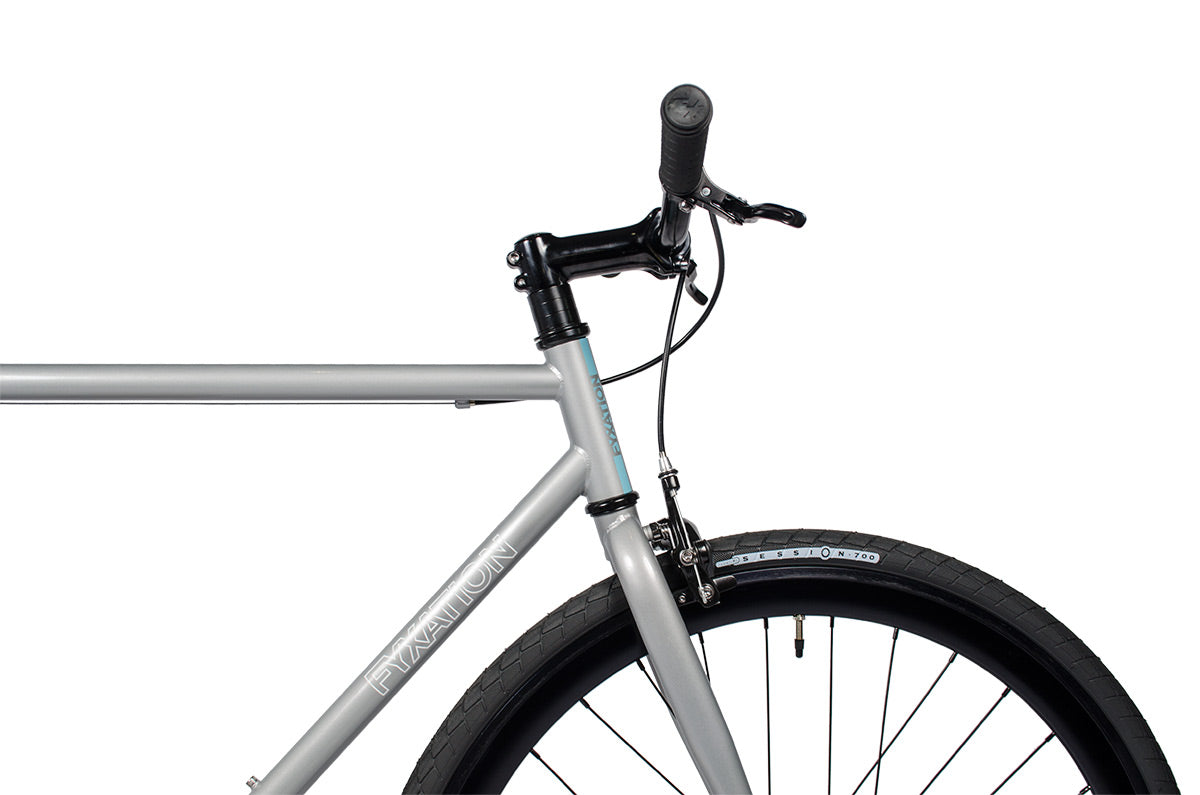

    • Handlebars: Pursuit Bullhorn, Ano. Finish
    • Headset: Neco Loose Ball, ED Black
    • Grips: Track Grips

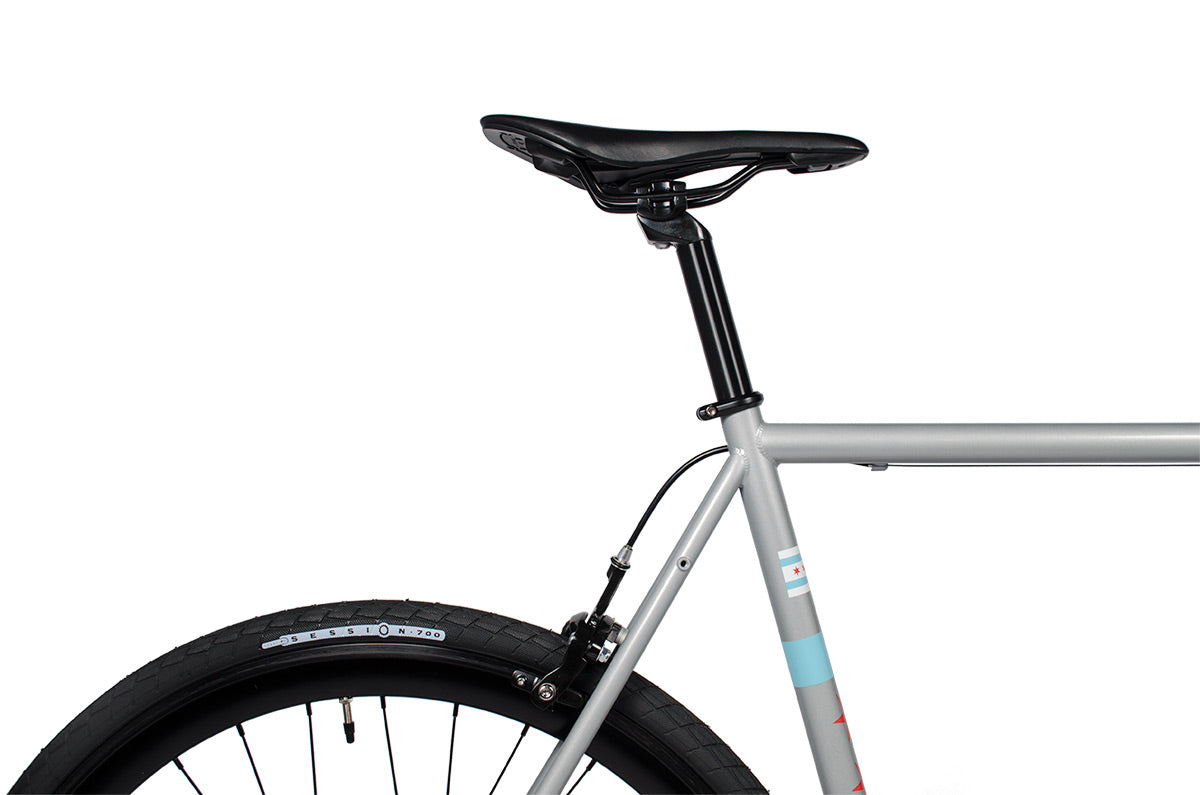

    • Saddle: Performance Saddle
    • Seatpost: Alloy Post, Ano. Finish
    • Crank: Fyxation Alloy Track Crank, 46T, Ano. Finish
    • Freewheel: 17T
    • Track Cog: 17T
    • BB: Neco Sealed Bearing
    • Pedals: Wellgo Alloy Cage Pedal w/Reflector
    • Rim: 40mm Deep Dish, Double Wall, 32H, Machined Sidewall
    • Spokes: Stainless 2.0
    • Nipples: Brass
    • Tires: Fyxation Session 700x28C
    • Brake Caliper: Promax Ano. Finish
    • Brake Lever: Promax Ano. Finish
    • Cables/Housing: Jagwire
    • Complete bike weight: 23-24lbs
    • Gear Ratio: 46x17
    • Decals: Clear coated transfer decals (non-removable)
  • FRAME SIZE 46cm 49cm 52cm 55cm 58cm
    Recommended Height 4'10" - 5'3" 5'4" - 5'6" 5'6" - 5'9" 5'9" - 6'0" 6'0" - 6'3"
    Seat Tube Angle (degree) 75.0 75.0 75.0 75.0 75.0
    Head Tube Angle (degree) 70.5 73.0 73.0 73.0 73.0
    Seat Tube Length 460mm 490mm 520mm 550mm 580mm
    Top Tube Length 510mm 530mm 535mm 560mm 580mm
    Head Tube Length 90mm 95mm 105mm 130mm 159mm
    BB Drop 60mm 60mm 60mm 60mm 60mm
    Chainstay Length 381mm 400mm 400mm 400mm 400mm
    Wheelbase 957mm 972mm 972mm 979mm 993mm
    Standover Height 27.5in 30in 31in 32in 33in
    Fork Length 365mm 380mm 380mm 380mm 380mm
    Fork Rake 38mm 38mm 38mm 38mm 38mm
  • Our complete bikes ship via FedEx in a well padded professional bike box. The bikes ship 95% assembled and you'll simply need a few tools to get your bike built up and on the road. As always, we recommend taking your bike to your local bike shop to get it built up properly. If you don't have a shop nearby, you'll need a pedal wrench and a hex wrench to assemble your bike.

    * Contact us at info@fyxation for international shipping rates

  • Download a copy of our Bicycle Owner's Manual
