MEET THE PIXEL 7
Fun, fast and affordable, the Pixel 7 ST speed has a lot in the tank without breaking the bank. The Pixel ST has an upright design, and low stand over height, that makes it ideal for sliding through traffic, commuting to work or simply cruising around campus.
Featuring Fyxation's durable steel frame, sealed bearing hubs and bottom bracket, forged 6061 alloy cranks, 7 speed shifter so you can tackle any local hill and light but quick 30mm deep aero rims, the Pixel is built to last. All bikes ship via UPS to your door or your favorite local bike shop.
We recommend that you size your bike based on your height and inseam. This insures you have proper clearance over the top tube, and the other fit dimension's will fall in line. Still have questions on the best size? Chat with us below...
GEOMETRY: 50/54/58 CM
RIDER HEIGHT: 4'10" - 5'3" / 5'4" - 5'10"
A: 75.0 / 75.0
B: 73.0 / 73.0
C: 470MM / 510MM
D: 530MM / 555MM
E: 90MM / 117MM
F: 60MM / 60MM
G: 410MM / 410MM
H: 981MM / 1001MM
I: 24" / 24.5"
J: 393MM / 393MM
K: 38MM / 38MM
The Pixel 7 is equipped with the reliability and low maintenance of Shimano's Altus 1 x 7 gearing. Twist and go! With a single front ring and wide range 7 speed cassette, you have great range and lower maintenance.
FRAMESET: Fyxation hi-tensile steel
FORK: Fyxation hi-tensile steel
FRONT HUB: Forged flip/flop32H
RIM: Alloy, 30mm
SPOKES: Stainless, 14G

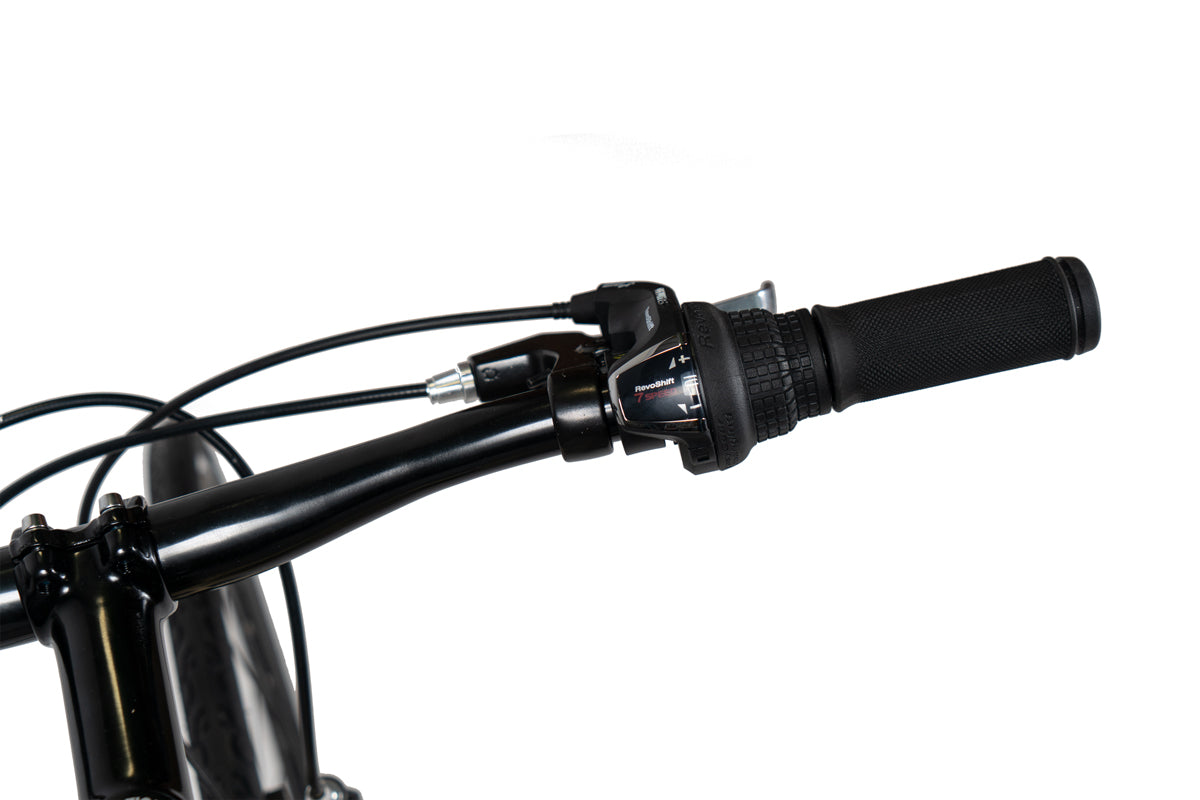

SHIFTER Shimano RevoShift 7
STEM: 3D Forged alloy stem

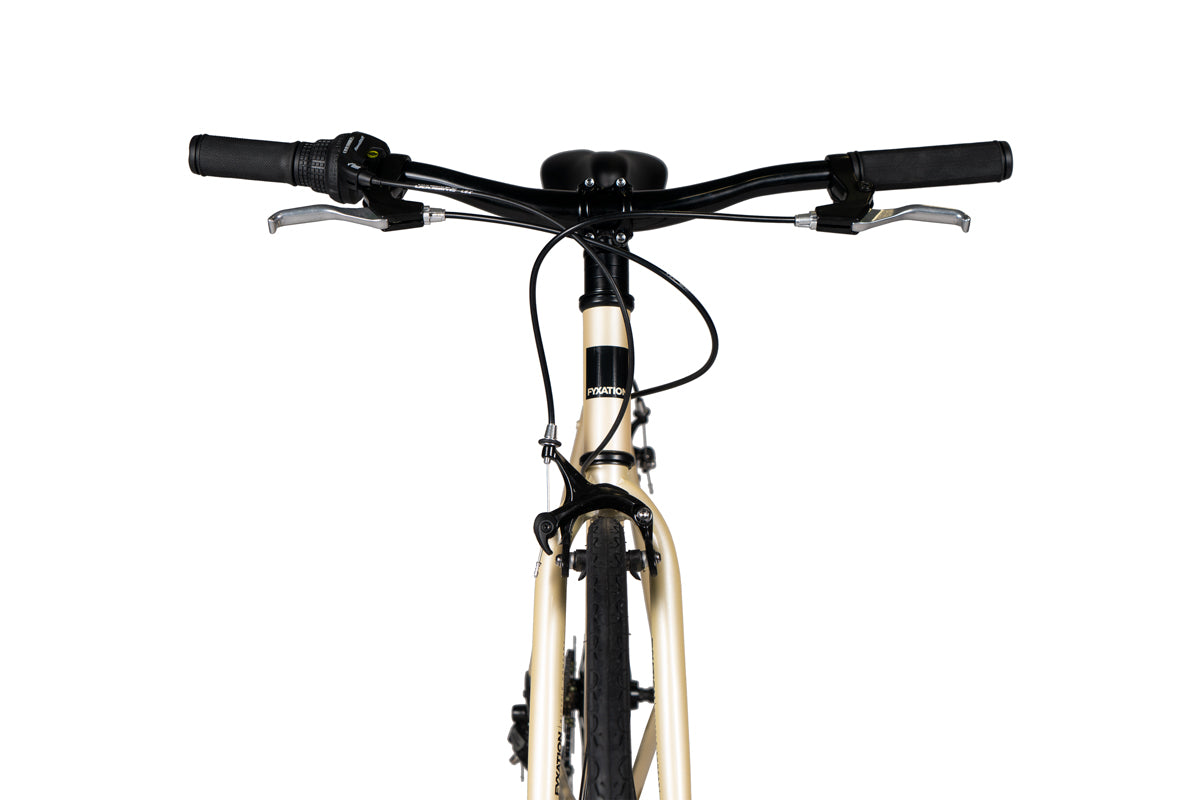

HANDLEBARS: Alloy shallow rise
BRAKES: Alloy dual pivot caliper
BOTTOM BRACKET: Sealed cartridge bearing
CRANKS: Forged aluminum. 165mm, 46T
PEDALS: Alloy cage Pedal w/Reflector
REAR HUB: Shimano Nexus 3 Speed
FREEWHEEL: Shimano 14-34T
CARGO: Fender/rack mounts on frame and fork dropouts
TIRE CLEARANCE: Clearance for 700x32c tires (700x28c with fenders)
GEAR RATIO: 44x16
FRAME SIZE: 50cm, 54cm, 58cm
