Sold Out - $1,450.00
![]() |
![]() |
![]() |
![]() |
![]() ![]() |

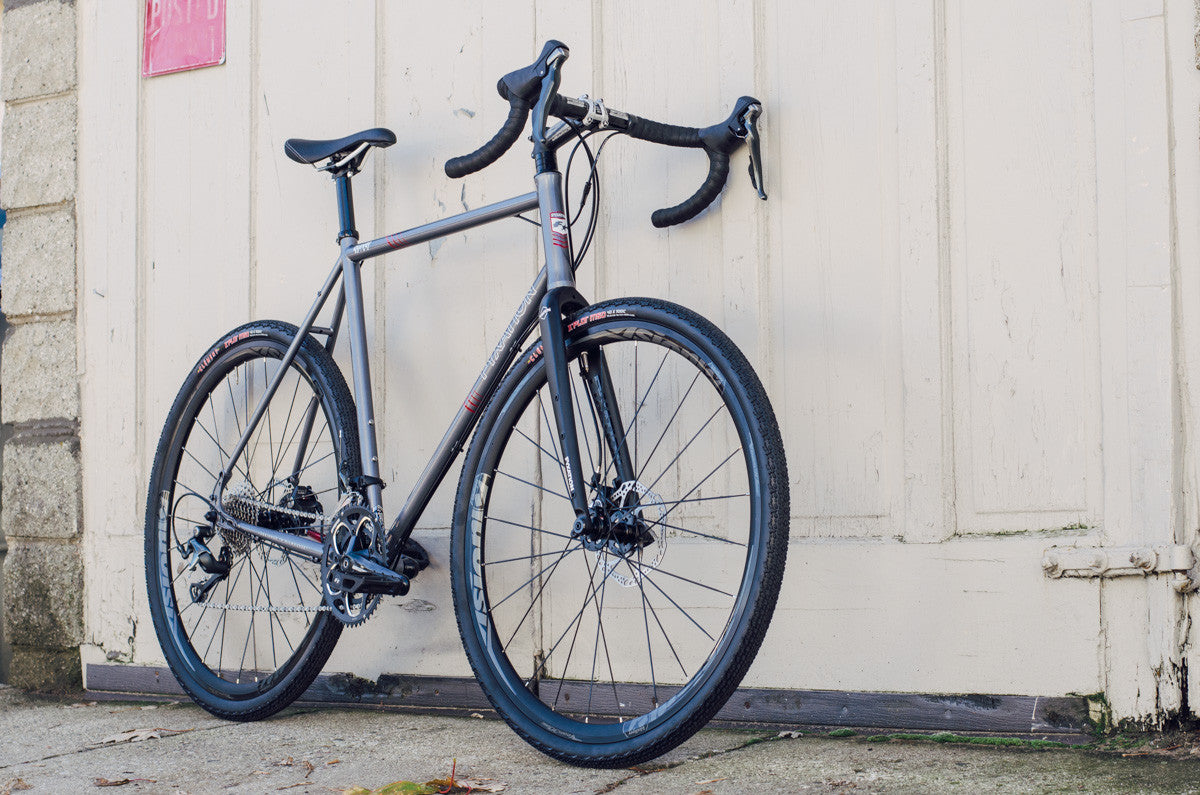

The quiver is back and here to stay! Originally introduced in 2012 the Quiver was designed to give you a single platform that could do it all. In the bike or ski industry most people talk about their "quiver" which basically means they own a ton of gear to do what they want. The Fyxation Quiver was designed to handle anything you throw at it and with it's wide tire clearance, ample fender/rack mounts and durable steel frame, this can truly be your one bike Quiver.

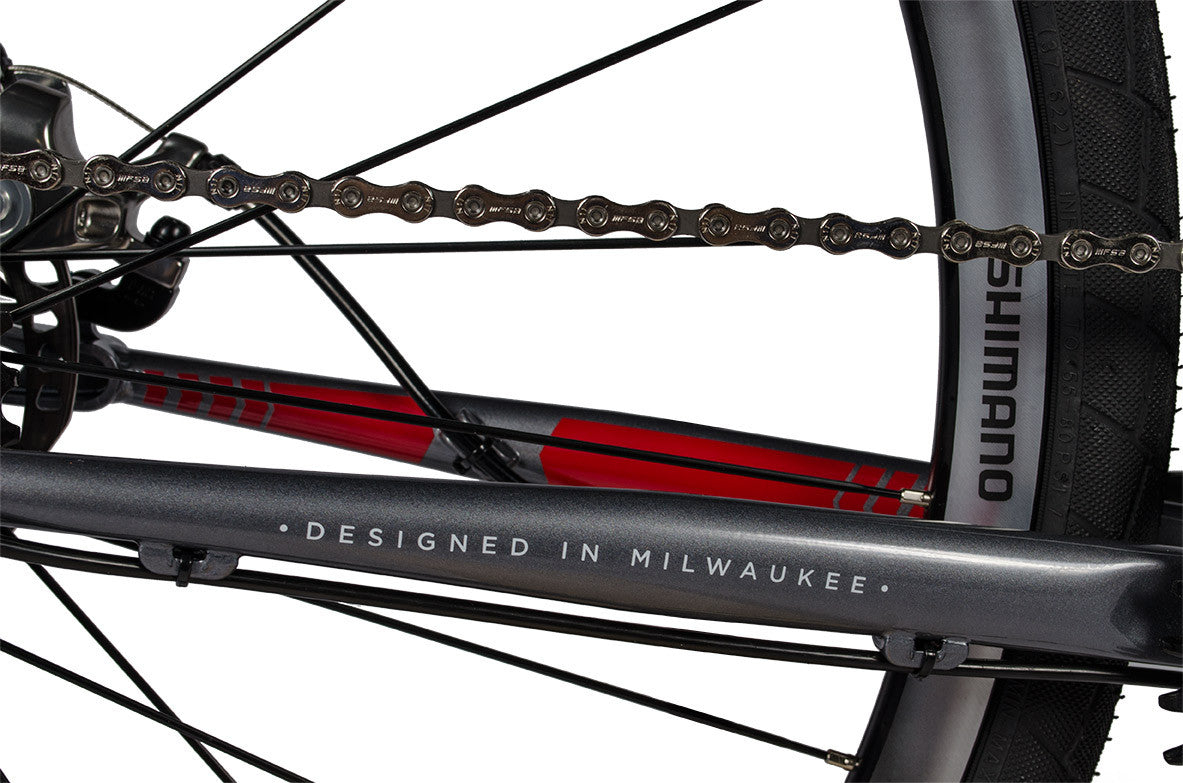

Assembled In Milwaukee

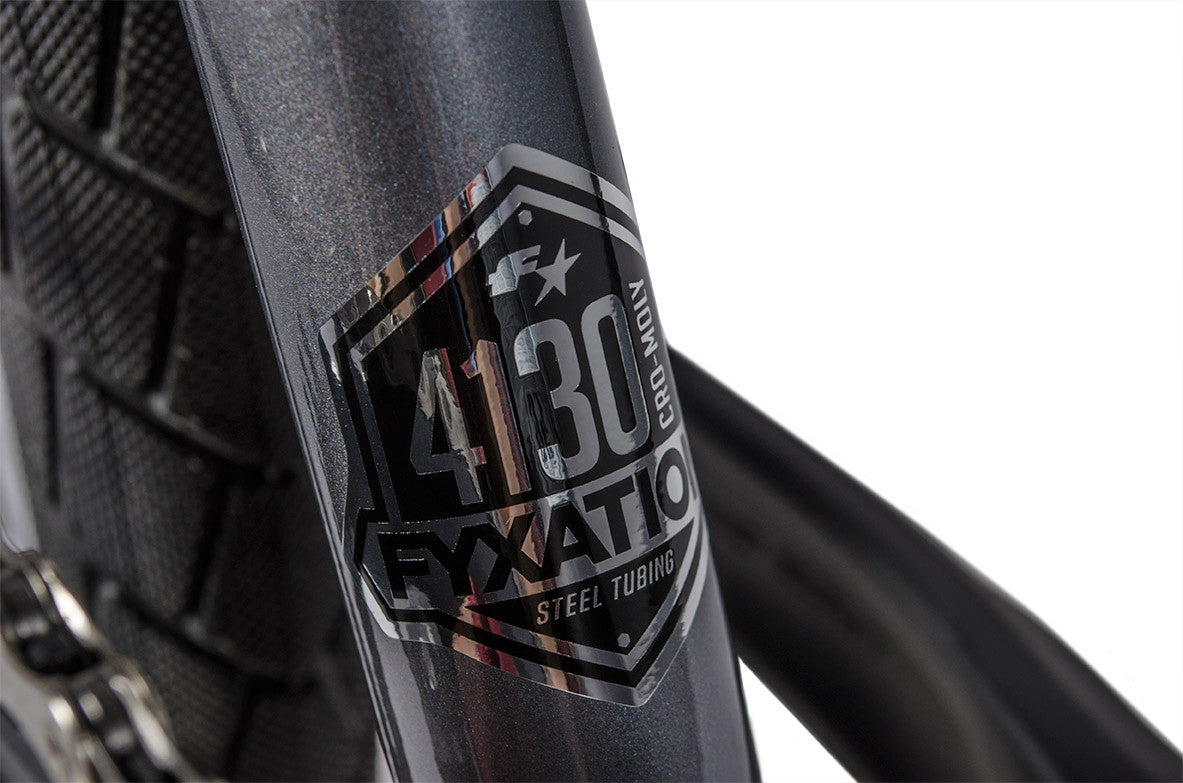

The Quiver 2x11 is assembled by hand here in Milwaukee and we take pride in making sure that each build is ride ready when it leaves our warehouse. Built around our reliable 4130 chromoly steel frame and fork, the Quiver is equipped to handle the toughest urban environments and the open road. Over the years the "relaxed road" geometry of the Quiver has been updated making this bike ideally suited to to handle a week of bike packing, touring or even your daily commute.

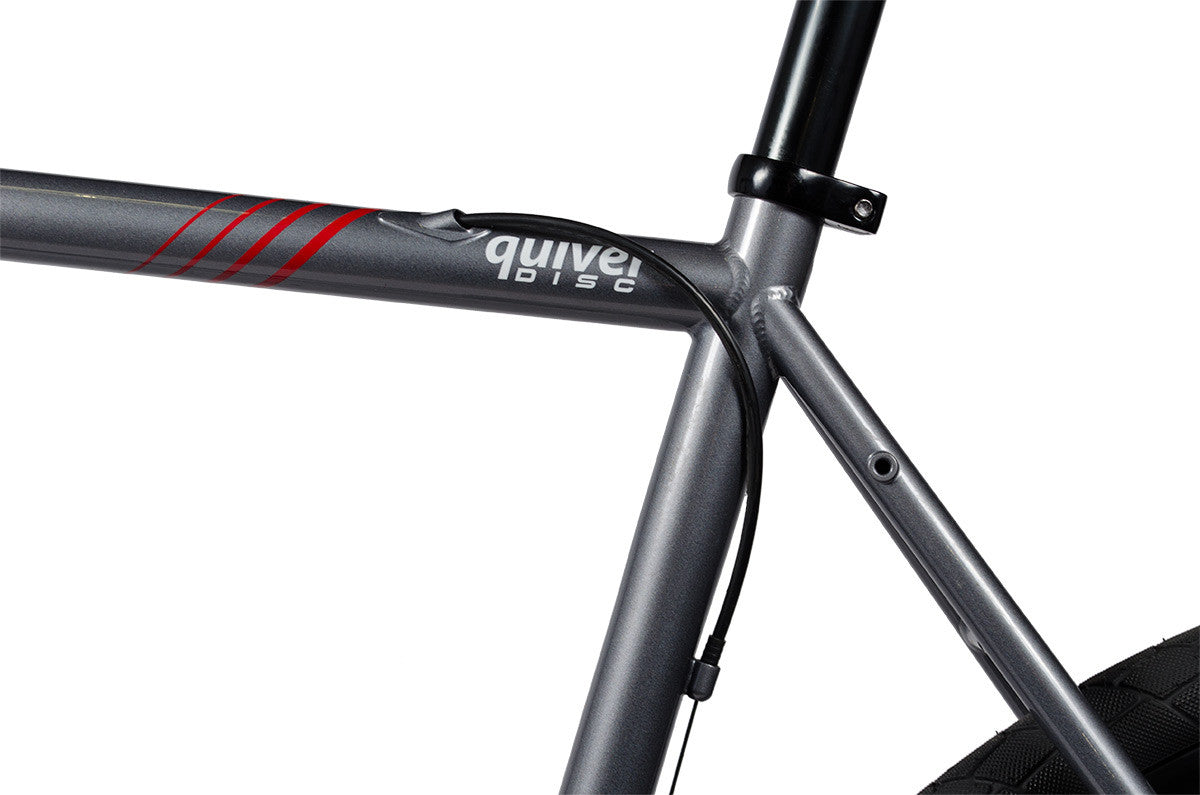

With the introduction of disc brakes and tire clearance up to 42mm you can be sure to maintain control where ever your ride may take you. Featuring full rack and fender mounts that include bottle cage spaced mounts on the fork this bike is ready for anything. Each frame is ED coated which is an automotive level frame protection which means this frame will last a lifetime.

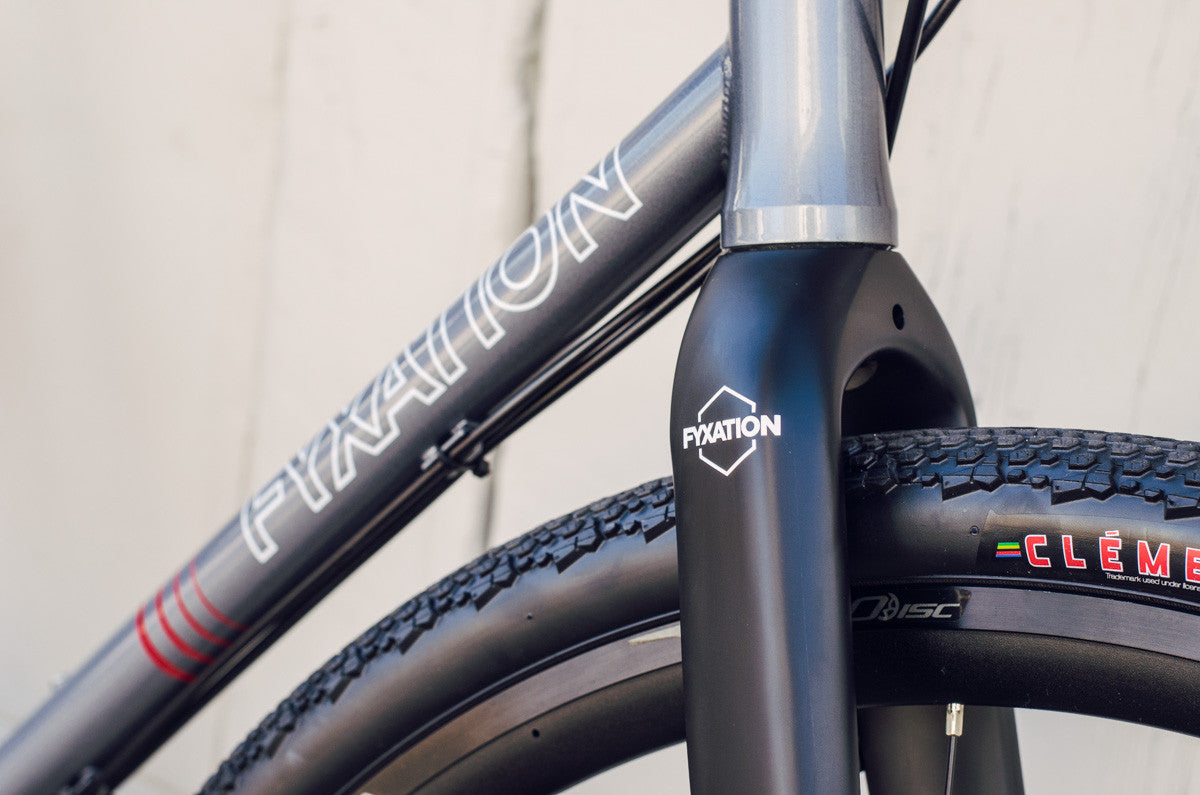

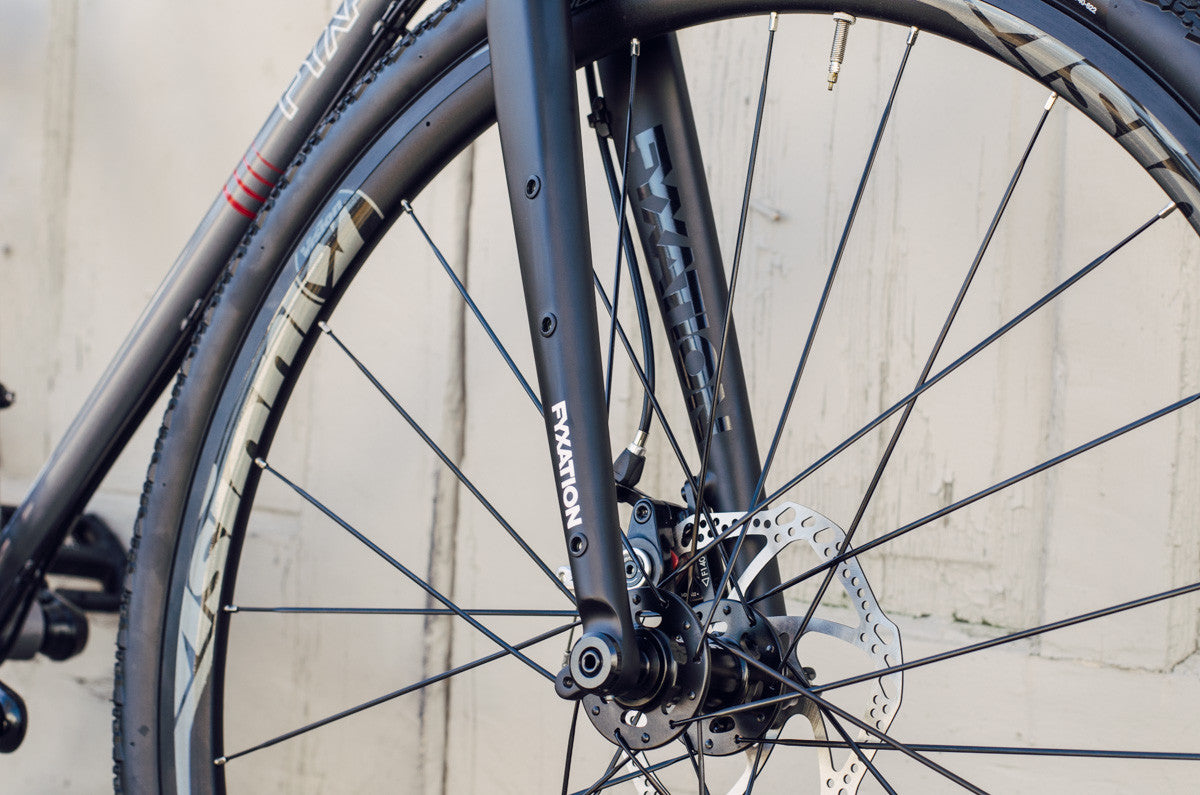

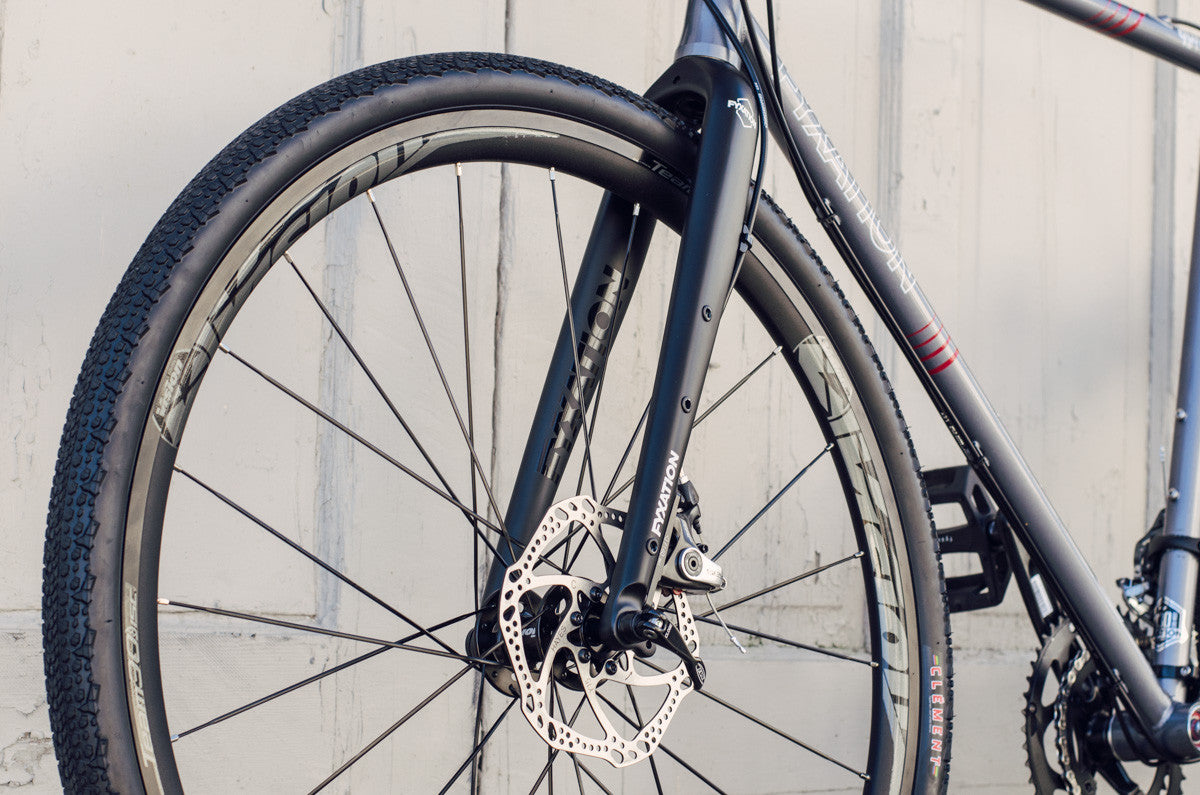

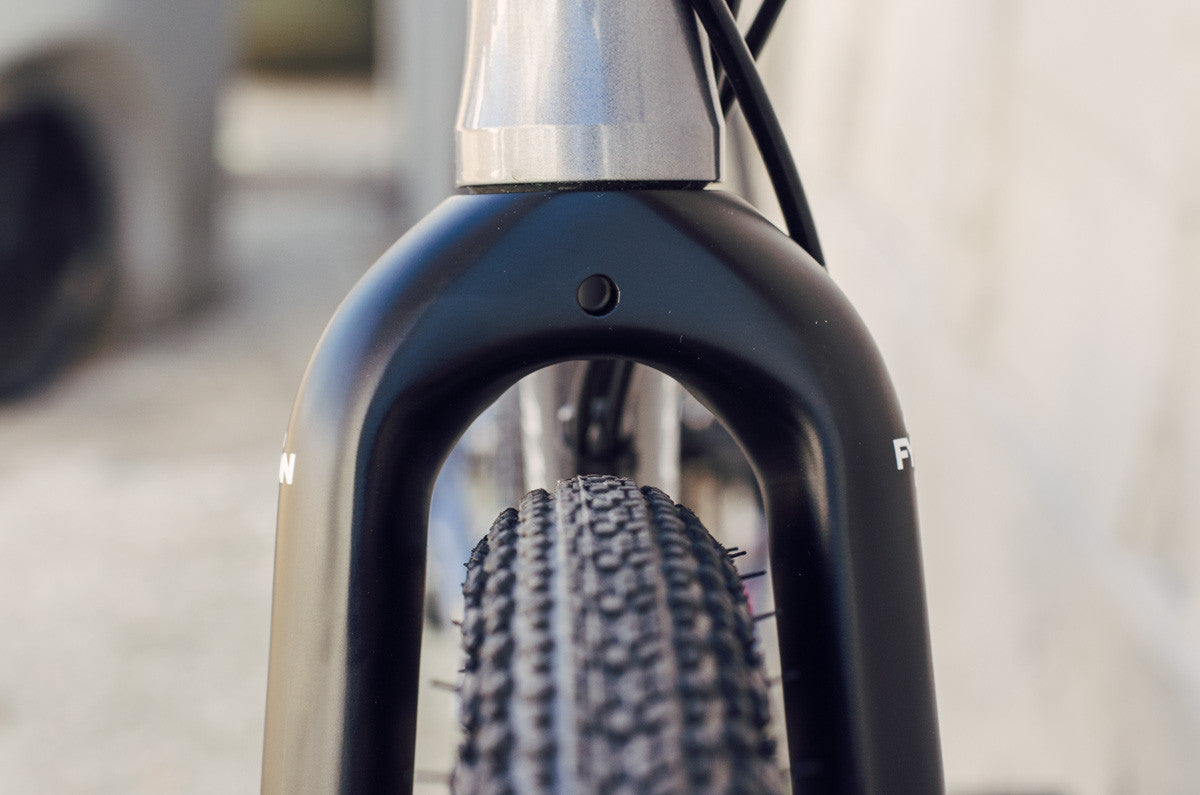

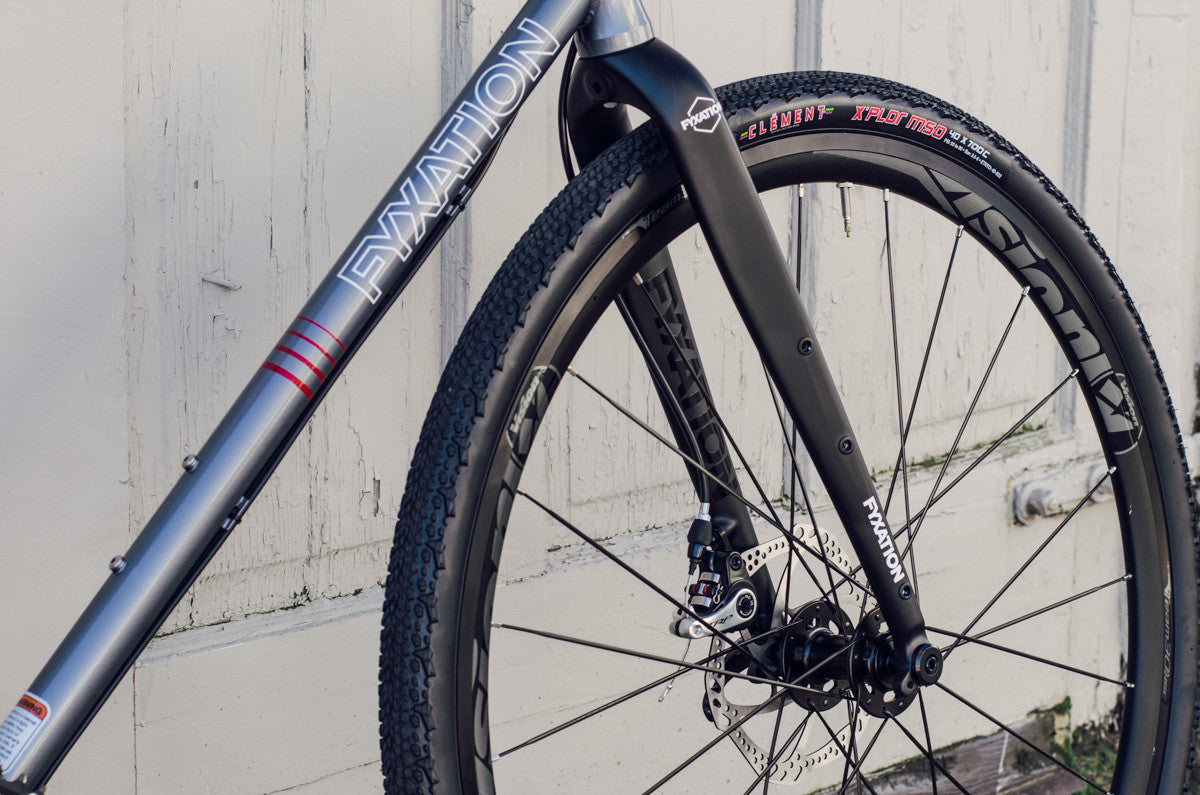

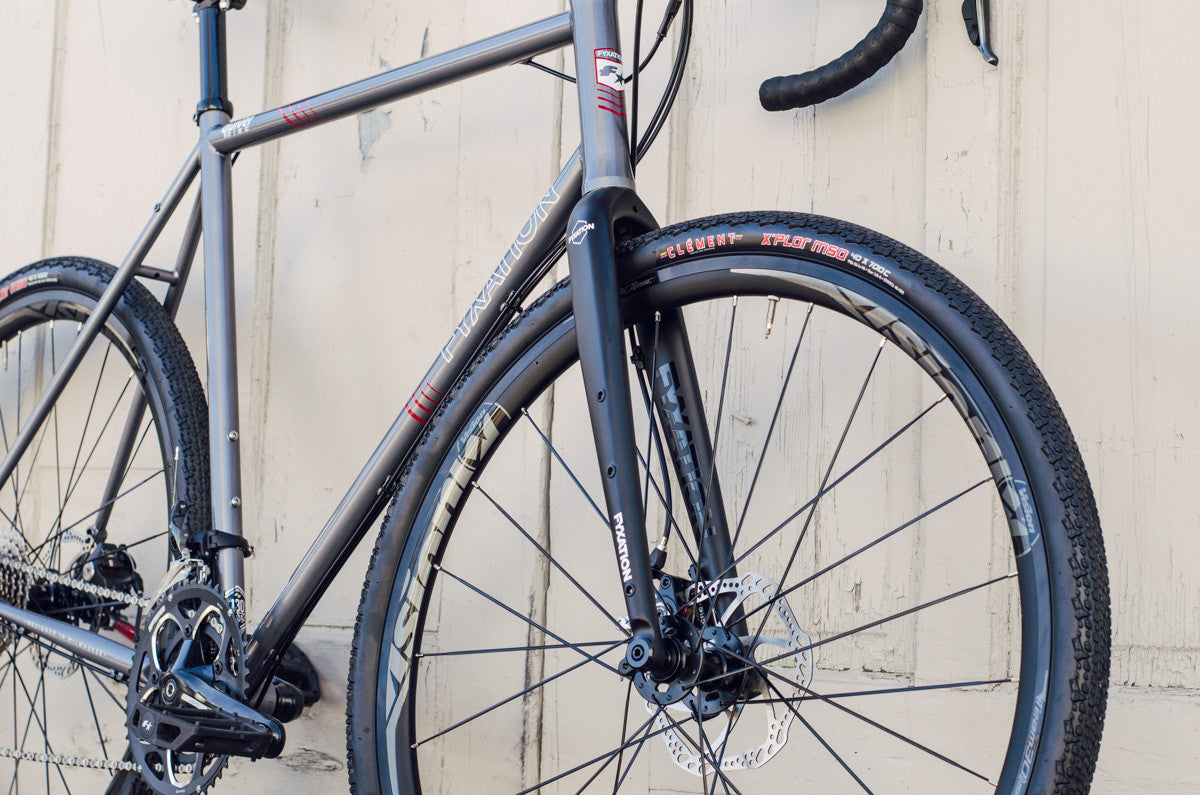

This Quiver is equipped with our Sparta All Road Carbon Fiber Fork which is ideal for dropping weight (430g less than the stock steel fork) and adding tons of versatility to your rig. With ample rack and fender mounts and 3 fork eyelets, this thru axle aluminum steerer tube carbon fork is built for the city, the cross race and beyond. It is strong, light and adaptable and is a great upgrade for the rider looking to get more out of their current bike
Sizing

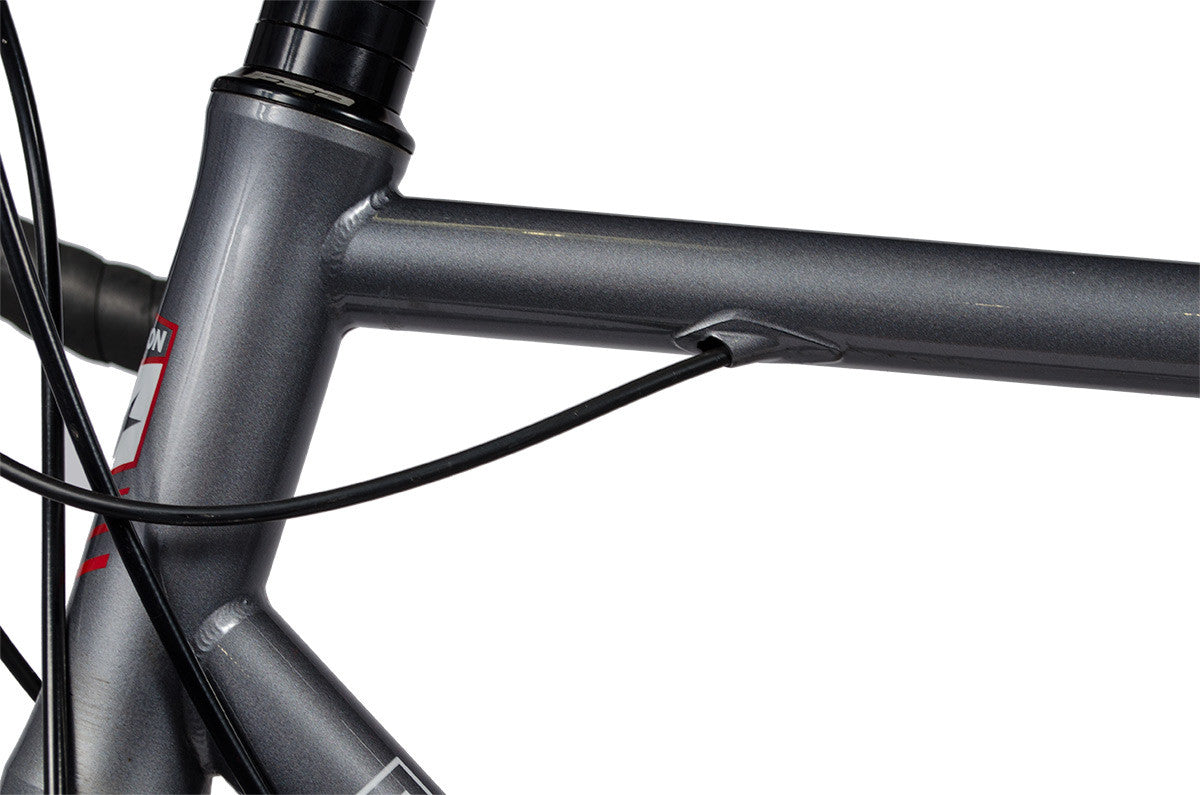

FRAME | Fyxation Quiver disc frame, 4130 cr-mo, ED protected, rack and fender mounts, IS disc mounts. Compatible with 700x42c tire or 700x35c tires with fenders, internal rear brake routing, integrated headset. |
FORK |
Carbon through axle all road fork, 1 1/8" aluminum straight steerer tube, flat mount disc brake, rack and fender mounts and 3 fork eyelets for water bottles and bags. 12mm thru axle skewer. Fits up to a 700x42c tire. |
REAR DERAILLEUR | Shimano 105 11 speed |
SHIFTER | Shimano 105 11 speed |
CASSETTE | Sun Race 11spd 11-34T |
CRANK | FSA Vero Compact, 50/34t |
BOTTOM BRACKET | FSA Vero |
BRAKES CALIPERS | Tektro Lyra CX |
BRAKE LEVERS | Shimano 105 |
HANDLEBARS | FSA Omega, 31.8mm clamp |
TAPE | Fyxation Loop EVA tape |
HEADSET | FSA Integrated IS41 |
STEM | FSA Omega, 31.8mm clamp |
SEAT POST | Fyxation Pilot micro-adjust |
SADDLE | Fyxation Pilot performance saddle |
WHEELS | Shimano RX10 Disc 24/28H, 10/11 speed |
TIRES | Fyxation Session 700x35c |
TIRE CLEARANCE | 700x42c or 700x35c with fenders |
FRAME SIZE | 46cm | 49cm | 53cm | 56cm | 59cm | 62cm | |
Recommended Height | 5'0" - 5'4" | 5'4" - 5'6" | 5'6" - 5'9" | 5'9" - 6'0" | 6'0" - 6'3" | 6'3" - 6'6" | |
![]() |
Seat Tube Angle (degree) | 75.0 | 75.0 | 73.5 | 73.5 | 73.0 | 72.5 |
![]() |
Head Tube Angle (degree) | 70.0 | 71.0 | 72.0 | 72.0 | 72.5 | 72.5 |
![]() |
Seat Tube Length | 460mm | 490mm | 530mm | 560mm | 590mm | 620mm |
![]() |
Top Tube Length | 510mm | 529mm | 537mm | 565mm | 580mm | 600mm |
![]() |
Head Tube Length | 110mm | 117mm | 126mm | 157mm | 190mm | 216mm |
![]() |
BB Drop | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm |
![]() |
Chainstay Length | 427mm | 427mm | 427mm | 427mm | 427mm | 427mm |
![]() |
Wheelbase | 1002mm | 1013mm | 1012mm | 1027mm | 1032mm | 1046mm |
![]() |
Standover Height | 725mm | 745mm | 770mm | 805mm | 835mm | 865mm |
![]() |
Fork Length | 400mm | 400mm | 400mm | 400mm | 400mm | 400mm |
![]() |
Fork Rake | 45mm | 45mm | 45mm | 45mm | 45mm | 45mm |
Stack | 532mm | 542mm | 563mm | 583mm | 617mm | 641mm | |
Reach | 365mm | 382mm | 387mm | 390mm | 392mm | 397mm |
Our complete bikes ship via FedEx in a well padded professional bike box. The bikes ship 95% assembled and you'll simply need a few tools to get your bike built up and on the road. As always, we recommend taking your bike to your local bike shop to get it built up properly. If you don't have a shop nearby, you'll need a pedal wrench and a hex wrench to assemble your bike.
* Contact us at info@fyxation for international shipping rates
