MEET THE PIXEL
Featuring Fyxation's durable steel frame, sealed bearing hubs and bottom bracket, forged 6061 alloy cranks, flip-flop hub so it can run as a fixed gear or single speed and light but quick 30mm deep aero rims, the Pixel is built to last. What are you waiting for? All bikes ship via UPS to your door or your favorite local bike shop.
We recommend that you size your bike based on your height and inseam. This insures you have proper clearance over the top tube, and the other fit dimension's will fall in line. Still have questions on the best size? Chat with us below...
GEOMETRY: 50/54/58 CM
RIDER HEIGHT: 5'2"-5'6" / 5'7"-5'11" / 6'0"-6'3"
A: 75.0 / 75.0 / 74.5
B:73.0 / 73.0 / 73.0
C: 500MM / 540MM / 580MM
D: 530MM / 555MM / 580MM
E: 90MM / 117MM / 155MM
F: 60MM / 60MM / 60MM
G: 410MM / 410MM / 410MM
H: 981MM / 1001MM / 1012MM
I: 30.5" / 31.5" / 33"
J: 393MM / 393MM / 393MM
K: 38MM / 38MM / 38MM
The Pixel is equipped with the reliability of Fyxation's single speed drive train. One speed means you'll spend more time riding and less time on maintenance. Grab and go! The Pixel is ready to ride when you are.
FRAMESET: Fyxation hi-tensile steel
FORK: Fyxation hi-tensile steel
REAR HUB: Fyxation sealed bearing hub. Sixteen tooth single speed an fixed gear cog installed.
FRONT HUB: Fyxation sealed bearing hub.
RIM: Alloy, 30mm
SPOKES: Stainless, 14G

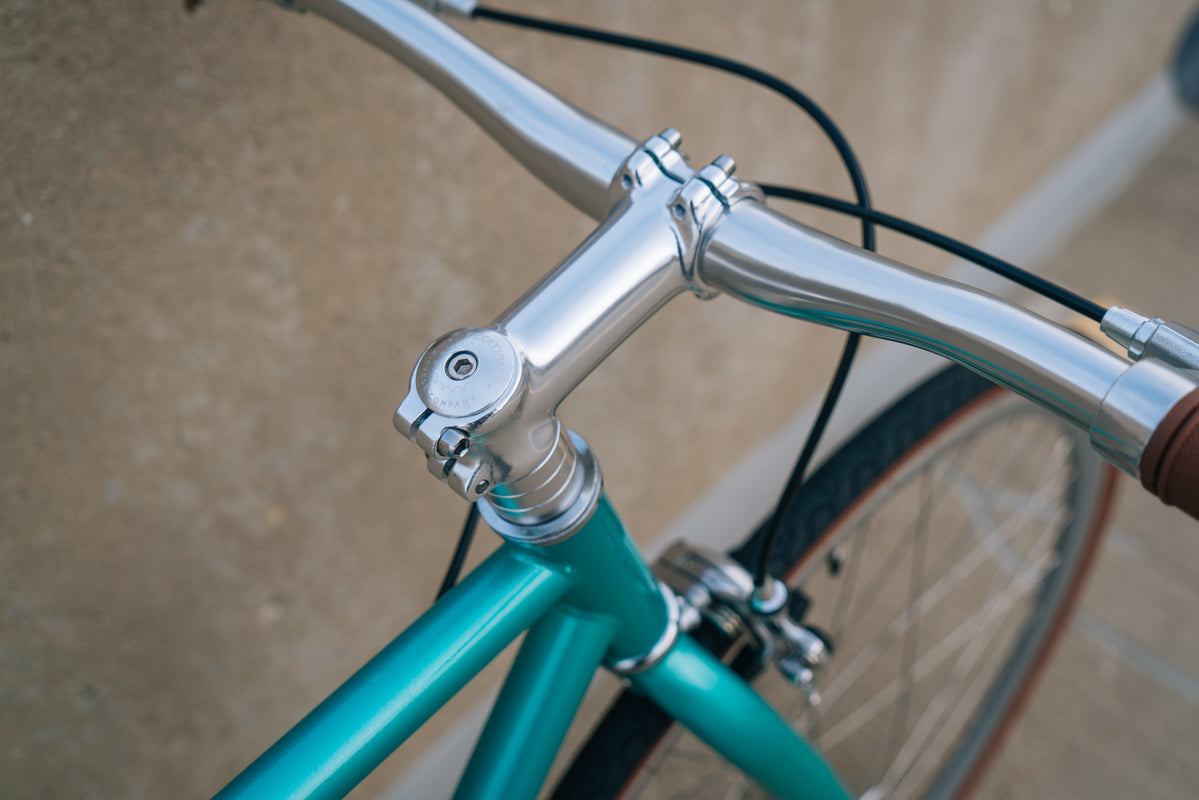

STEM: 3D Forged alloy stem
HANDLEBARS: Alloy shallow rise
BRAKES: Alloy dual pivot caliper
BOTTOM BRACKET: Sealed cartridge bearing
CRANKS: Forged aluminum. 165mm, 42T
GEAR RATIO: 42x16
PEDALS: Alloy cage Pedal w/Reflector
CARGO: Fender/rack mounts on frame and fork dropouts
TIRE CLEARANCE: Clearance for 700x32c tires (700x28c with fenders)
FRAME SIZE: 50cm, 54cm, 58cm
Teal Pixel ok for the money
Bike rides good. Wheels needed truing badly. Paint job is sub par... scratches and paint runs on frame. I bought as a beater delivery bike.
how does my bike ship?
Our complete bikes ship via UPS Ground in a well padded professional bike box. Orders that arrive by 2 p.m. CST weekdays ship same day. you can track your bike online or through the Shop App.
The bikes ship 95% assembled and you'll simply need a few tools to get your bike built up and on the road. As always, we recommend taking your bike to your local bike shop to get it built up properly.
* Contact us at info@fyxation for international shipping rates
